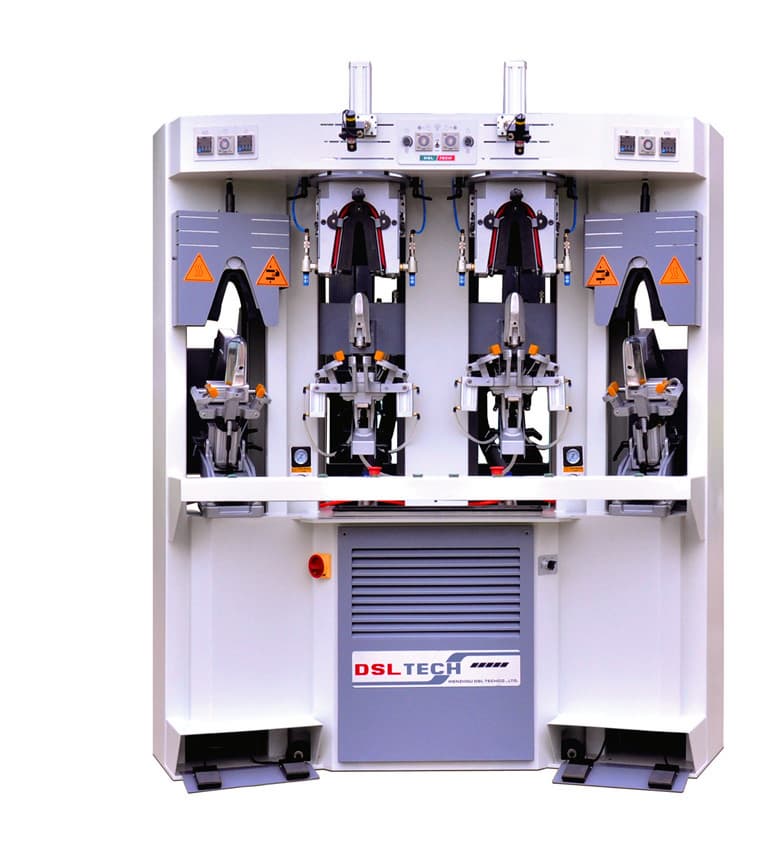

Two Cold & Two Hot Backpart Moulding Machine TW一682AM

The TW-682AM Two Cold & Two Hot Backpart Moulding Machine is a high-performance solution designed specifically for the backpart moulding of a wide variety of footwear, including high-quality men’s shoes, women’s shoes, children’s shoes, and boots. This machine combines innovative thermal control technology with precision mechanics and user-friendly operation, making it an indispensable asset in modern shoe manufacturing.Backpart moulding is a critical step in footwear production, influencing the shoe’s fit, shape, and durability. The TW-682AM elevates this process by providing precise temperature control, adjustable moulding pincers, and versatile mould change options, ensuring premium quality output that meets the highest standards of comfort and aesthetics.

Key Features and Functional Highlights

Suitable for Various Shoe Types

• The TW-682AM is expertly engineered to accommodate a broad spectrum of footwear types:

  • High-Quality Shoes: Premium men’s and women’s shoes requiring superior finishing.

  • Children’s Shoes: Durable and comfortable moulding suitable for smaller, more delicate sizes.

  • Boots: Larger, tougher footwear needing reliable backpart shaping.

  • Sandals and Moccasins: Thanks to its versatile cold mould rotating mechanism, the machine is adaptable for open shoes and light footwear.

This flexibility ensures that the TW-682AM can be seamlessly integrated into diverse production lines without compromising quality or efficiency.

Advanced LED Position Light Projector

• A built-in LED position light projector ensures precise and accurate positioning of the backpart during the moulding process.

• This high-visibility indicator enables operators to achieve consistent moulding alignment, reducing errors and material waste.

• The projector’s illumination assists in low-light environments, facilitating exact placement and speeding up production cycles.

Independent Control of Pincers

• The machine features independent control for the inside and outside waist pincers, allowing for:

  • Oblique-Pulling Pincers Function: Both in the hot moulding station and the cold moulding station, pincers can be adjusted independently to apply optimal pressure and shaping force.

  • Quick and Easy Adjustment: Operators can tailor the pincer tension and angle according to the shoe style and material requirements without complicated procedures.

This unique design maximizes moulding precision and accommodates various shoe lasts and backpart designs.

Cold Mould Rotating & Wipe Device

• The cold mould is equipped with an integrated wipe device that ensures the upper material adheres smoothly and evenly to the last during moulding.

• Furthermore, the cold mould can rotate 180 degrees, enhancing operational flexibility.

• This feature is especially useful for moulding sandals, moccasins, and other shoes that require different shaping angles or repeated moulding passes.

Fast Change System for Cold and Hot Moulds

• The TW-682AM facilitates rapid switching between cold and hot moulds thanks to a specially designed fast-change system.

• This system is equipped with a robust fixing device to securely hold both cold and hot mould backparts in place during the moulding cycle.

• The quick-change capability significantly reduces downtime, allowing manufacturers to switch production styles swiftly and efficiently.

Cold Mould with Airbag for Optimal Moulding Effect

• The cold mould’s exterior is fitted with an airbag system that provides uniform pressure distribution.

• This airbag ensures the best possible effect during cold moulding by tightly wrapping the backpart around the last, preventing wrinkles, bubbles, or misalignment.

• The airbag technology enhances product consistency and improves overall shoe quality.

Hot Mould Using Silica Gel Material

• The hot mould incorporates silica gel materials known for their excellent heat resistance and flexibility.

• This design allows the hot mould temperature to reach up to 180 degrees Celsius, effectively moulding the shoe vamp to the last with superior adhesion.

• The temperature range of the hot mould guarantees that synthetic and leather uppers are evenly heated and shaped without damage.

Wide Temperature Range for Cold and Hot Moulds

• The cold mould temperature can be lowered to as low as -10 degrees Celsius.

• This wide temperature span from -10 to 180 degrees Celsius enables the TW-682AM to handle different materials and moulding requirements effectively.

• The ability to cool and heat accurately results in better vamp attachment and lasting, enhancing shoe shape retention and comfort.

Technical Specifications

• Machine Dimensions: Approximately 2500 mm (L) × 1300 mm (W) × 1800 mm (H) (dimensions may vary based on specific configurations).

• Weight: Approximately 1500 kg.

• Power Supply: 380V, 50/60Hz, 3-phase power.

• Power Consumption: Approximately 4.5 kW.

• Temperature Range:

  • Hot Mould: Up to 180°C.

  • Cold Mould: Down to -10°C.

• Mould Change Time: Less than 5 minutes for switching between cold and hot moulds.

• Mould Rotation: Cold mould rotates 180 degrees for versatile shoe types.

• Air Pressure: 0.5–0.8 MPa for the airbag system.

• Control System: PLC based with touch screen interface.

• Operational Modes: Semi-automatic and manual control available.

• Pincer Adjustment: Independent pneumatic/hydraulic control for inside and outside waist pincers.

• LED Position Projector: Integrated for precise positioning.

Benefits and Advantages

Precision and Quality

• The combination of LED position lighting, independent pincer control, and advanced mould materials ensures exceptionally accurate backpart shaping.

• Shoes produced on the TW-682AM exhibit superior vamp attachment, wrinkle-free surfaces, and enhanced aesthetic appeal.

• The ability to precisely control temperatures for both hot and cold moulds ensures material integrity and long-lasting shoe performance.

Flexibility in Production

• The ability to handle multiple shoe types — including high-end fashion shoes, children’s footwear, sandals, moccasins, and boots — makes the TW-682AM a versatile choice for manufacturers with diverse product lines.

• Quick-change moulding systems and rotating cold moulds reduce changeover times and increase production efficiency.

• Adjustable pincers and oblique-pulling functions allow for custom moulding setups tailored to specific last shapes and shoe designs.

Operator-Friendly Design

• The PLC control system with a graphical touchscreen interface simplifies operation, reducing the learning curve and minimizing operator errors.

• The LED projector facilitates rapid and accurate positioning.

• Fast mould change systems reduce manual labor and downtime.

• Ergonomically designed controls ensure easy access and comfortable operation during long production shifts.

Energy Efficiency and Durability

• The use of silica gel in hot moulds improves heat transfer efficiency and mould lifespan.

• The cold mould airbag system optimizes pressure application while minimizing energy consumption.

• Robust mechanical and electronic components guarantee stable long-term operation with minimal maintenance.

Typical Applications

The TW-682AM Two Cold & Two Hot Backpart Moulding Machine is ideally suited for:

• Shoe Factories producing medium to large batch volumes requiring precise backpart moulding.

• High-End Footwear Manufacturers focusing on superior fit, finish, and durability.

• Children’s Shoe Manufacturers who need precise shaping for comfort and safety.

• Boot and Sandal Manufacturers requiring both hot and cold moulding processes.

• OEM/ODM Production Lines with rapid product change requirements.

Maintenance and Support

• Routine Maintenance: Includes regular lubrication of mechanical parts, cleaning of mould surfaces, and inspection of pneumatics and hydraulics.

• Spare Parts: Available for quick replacement of wear-prone components such as pincers, airbags, mould fixtures, and electronic sensors.

• Technical Support: Factory-trained technicians provide installation, commissioning, and ongoing technical assistance.

• Training Programs: Comprehensive operator and maintenance training ensure optimal machine use and longevity.


The TW-682AM Two Cold & Two Hot Backpart Moulding Machine represents a pinnacle in footwear moulding technology, combining precision engineering, intelligent temperature control, and user-centric design. Its capability to switch quickly between hot and cold moulding, coupled with flexible pincer adjustments and high-temperature silica gel moulds, positions this machine as a premier choice for manufacturers aiming to achieve impeccable quality, increased efficiency, and versatility in backpart moulding operations.By integrating the TW-682AM into your production line, you ensure your footwear products meet rigorous quality standards, enhancing brand reputation and customer satisfaction while optimizing operational productivity.
