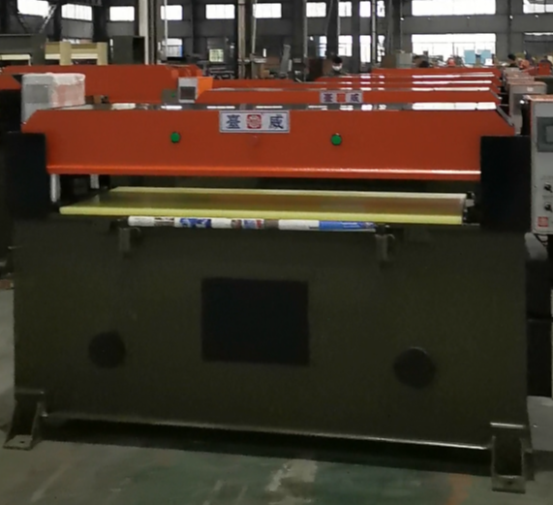

MACHINE NAME: FOAM MASK CUTTING PRESS MACHINE

MODEL NO: TW5100P

BRAND: TAIWEI

FEATURES

• The machine is widely applicable to cutting of various nonmetal materials by die cutter.

• Double oil cylinder and precise double-crank connecting rod balancing mechanism are adopted, which can guarantee that the cutting depth at every cutting position is same.
• With special setting mechanism, and in conjunction with die cutter and cutting depth setting, the travel adjustment is simple and accurate.
• The pressing board of cutting carries out slow cutting when it contacts the die cutter, which can make that there is no size error between the uppermost layer and lowermost layer of cut materials.
• The central oil supply automatic lubricating system guarantees machine precision and prolongs service life of machine.
• Products of special specifications can be systemized.

TECHNICAL PARAMETER

1. Model                              : TW5100P
2. Travel(mm)                      : 50-150mm
3. Working Table Size(mm)   : 1600x510mm
4. Main Motor Power(kW)     : 2.2Kw
5. Operating Voltage           : 200-220V
6. Weight(approx.)(kg)         : 2100Kg

The TW5100P Foam Mask Cutting Press Machine represents an advanced, high-efficiency solution designed for precise cutting and shaping of foam materials, specifically tailored for manufacturing foam masks and similar products. This state-of-the-art machine integrates hydraulic press technology with microcomputer control, delivering superior accuracy, repeatability, and productivity in foam cutting operations. Designed with a robust four-column hydraulic structure and precision microcomputer controls, the TW5100P is engineered to meet the demanding needs of modern industrial production lines, offering exceptional reliability and versatility in processing foam and similar soft materials. Its compact design, ease of operation, and high degree of automation make it a popular choice among manufacturers focused on quality and efficiency.

Overview of the TW5100P Foam Mask Cutting Press Machine

The TW5100P is a microcomputer precision four-column hydraulic cutting machine optimized for foam mask production. Utilizing hydraulic pressure combined with precision tooling, the machine ensures smooth, consistent cutting without material deformation or damage. It is widely used in industries producing foam components for medical masks, protective gear, packaging, and more.

Key Features

• Hydraulic Press Cutting Technology: Employs powerful hydraulic cylinders to deliver uniform pressure over the foam surface, ensuring clean, precise cuts.

• Microcomputer Control System: An intelligent controller manages cutting pressure, timing, and stroke, providing exact, repeatable operation and ease of adjustment.

• Four-Column Design: Enhances machine stability and rigidity, minimizing vibration during operation and extending machine life.

• Adjustable Cutting Parameters: Allows customization of pressing force, cutting speed, and stroke length to suit various foam densities and thicknesses.

• High-Precision Cutting: Achieves fine tolerance cutting essential for foam masks, where edge quality and dimensional accuracy are critical.

• Safety Features: Equipped with emergency stop buttons, safety guards, and interlocks to ensure operator safety.

• Energy Efficient: Hydraulic system designed to optimize energy consumption while delivering consistent performance.

• User-Friendly Interface: Simple operation panel with digital display for easy monitoring and control of process parameters.

Working Principle

The TW5100P foam mask cutting press machine operates on the principle of hydraulic pressure applied to a cutting die or mold. The foam material is placed on the lower die or platform. Upon starting the machine, the hydraulic system activates the upper ram, which moves downwards with controlled force and speed, pressing the foam against the lower die. The cutting die, custom-shaped according to the desired foam mask design, cleanly slices through the material under the hydraulic force. The microcomputer system monitors and adjusts the ram’s pressure and stroke to maintain precision and prevent damage to the foam. After cutting, the ram retracts, allowing the operator or automated system to remove the finished pieces and reload raw foam for the next cycle. This process can be continuous and highly automated in production lines, offering significant throughput.

Technical Specifications

• Model: TW5100P

• Type: Four-Column Hydraulic Cutting Press Machine

• Control System: Microcomputer Precision Control

• Maximum Cutting Force: Adjustable, typically up to 100 tons (varies by configuration)

• Cutting Area: Suitable for foam masks, variable sizes depending on tooling

• Stroke Length: Adjustable to accommodate foam thickness

• Cutting Speed: Programmable via microcomputer controller

• Power Supply: 3-phase, voltage customizable according to region (commonly 380V/50Hz or 220V/60Hz)

• Hydraulic System: High-efficiency pump with oil reservoir and filtration

• Frame Material: High-strength steel for durability and minimal deformation

• Dimensions: Customizable, typically compact footprint for easy integration

• Weight: Depends on configuration, generally robust and stable design

• Safety Features: Emergency stop, safety guards, overpressure protection

Detailed Components and Structure

Hydraulic System

The core of the TW5100P is its hydraulic system, consisting of:

• Hydraulic Pump: Provides stable oil flow and pressure.

• Hydraulic Cylinders: Convert hydraulic pressure into linear mechanical force for the ram.

• Control Valves: Regulate pressure and flow, ensuring smooth motion.

• Oil Reservoir: Holds hydraulic fluid, equipped with filters to maintain cleanliness.

• Pressure Sensors: Monitor system pressure, feeding data to the microcomputer for precise control.

This system allows for a wide range of force adjustments, making the machine suitable for cutting different foam densities and thicknesses.

Microcomputer Control Unit

The control panel integrates a microcomputer system, featuring:

• Digital Interface: Displays pressure, stroke, cycle time, and operational status.

• Programmable Settings: Operators can set force, stroke length, dwell time, and cutting cycles.

• Feedback Sensors: Ensure each cutting cycle meets preset parameters.

• Alarm System: Alerts operators to faults or maintenance needs.

• Data Logging: Records operational parameters for quality control.

Four-Column Frame

The machine frame consists of four vertical steel columns supporting the ram and bed. This design provides:

• High Rigidity: Prevents distortion under heavy pressure.

• Improved Stability: Reduces vibration for consistent cutting quality.

• Long Service Life: Durable structure withstands continuous heavy-duty use.

Cutting Dies and Tooling

The cutting die is custom-manufactured for each foam mask design. Common characteristics include:

• High-Quality Steel: Hardened to resist wear and maintain cutting-edge sharpness.

• Precision Machining: Ensures tight tolerances and clean edges.

• Interchangeable Dies: Allow quick changeovers between product types.

Applications

The TW5100P foam mask cutting press machine serves a wide range of industries and product applications:

Medical and Protective Equipment

• Production of foam masks, including components for N95 masks, surgical masks, and other respiratory protection devices.

• Cutting foam inserts for face shields and goggles.

• Manufacture of cushioning components used in protective helmets and safety gear.

Packaging Industry

• Precision cutting of foam packaging inserts designed to protect electronics, fragile items, and delicate instruments during transport.

• Custom foam shapes for product display packaging.

Automotive and Electronics

• Cutting foam pads and seals used in automotive interiors, dashboards, and door panels.

• Foam components for electronic devices and appliances requiring soft protective layers.

Consumer Goods and Furniture

• Foam parts for mattresses, cushions, and ergonomic products.

• Custom-shaped foam pieces are used in sporting goods, footwear, and toys.

Advantages of TW5100P Foam Mask Cutting Press Machine

Precision and Quality

The combination of hydraulic pressure and microcomputer precision control ensures that every cut is consistent, accurate, and free from defects such as tearing, deformation, or uneven edges.

Versatility

Adjustable pressure, stroke, and tooling options allow the machine to handle a variety of foam types (EVA, PU foam, polyethylene foam, etc.) and thicknesses, expanding its use across different products and industries.

Productivity and Efficiency

With rapid cycle times and automatic control, the TW5100P significantly reduces manual labor and speeds up production, making it ideal for large-scale manufacturing environments.

Safety and Reliability

Built-in safety features protect operators and equipment, minimizing downtime and enhancing workplace safety. The sturdy four-column frame reduces maintenance needs and prolongs machine life.

Ease of Use and Maintenance

The user-friendly microcomputer interface simplifies training and operation. Routine maintenance tasks such as hydraulic fluid changes and die replacements are straightforward, minimizing production interruptions.

Operating Procedure

1. Setup and Preparation: Install the appropriate cutting die based on the foam mask design. Adjust the cutting parameters (pressure, stroke, speed) on the microcomputer control panel according to the foam material specifications.

2. Loading Material: Place the foam sheet or roll on the lower bed or feeding table. Align it accurately with the cutting die.

3. Starting the Machine: Activate the machine via the control panel. The hydraulic ram descends, applying pressure to the die and cutting the foam.

4. Cycle Completion: After the cut, the ram retracts automatically. Remove the finished foam masks.

5. Repeat: Reload material for continuous operation. Adjust settings if switching to a different foam type or thickness.

6. Shutdown and Maintenance: Follow the standard shutdown procedure and perform regular maintenance checks.

Maintenance and Troubleshooting

To keep the TW5100P foam mask cutting press machine operating at peak performance, regular maintenance is essential:

Daily Maintenance

• Inspect the hydraulic oil level and refill if necessary.

• Clean machine surfaces and die areas to prevent foam debris buildup.

• Check for any loose bolts or connections.

• Verify emergency stop and safety guard functionality.

Weekly Maintenance

• Inspect hydraulic hoses and valves for leaks.

• Lubricate moving parts according to manufacturer recommendations.

• Check pressure sensors and the control panel for accuracy.

Monthly Maintenance

• Replace hydraulic oil if contamination is detected.

• Inspect cutting dies for wear and sharpness; sharpen or replace as needed.

• Test the microcomputer system for firmware updates or errors.

Common Troubleshooting

• Inconsistent Cutting: Check hydraulic pressure and die sharpness.

• Machine Not Starting: Verify power supply and emergency stop status.

• Excessive Vibration: Inspect frame integrity and hydraulic valve operation.

• Hydraulic Leaks: Tighten or replace faulty seals and hoses.

Technical Support and Customization

The TW5100P can be customized to meet specific production needs, including:

• Different cutting force ranges.

• Special dies for unique foam mask designs.

• Integration with automated feeding and unloading systems.

• Remote monitoring and IoT-enabled data logging.

Manufacturers typically offer full technical support, including installation, training, and ongoing maintenance contracts to ensure smooth operation.

Environmental and Safety Considerations

• The hydraulic system uses environmentally friendly hydraulic fluids, minimizing ecological impact.

• Noise levels are controlled through vibration-damping designs.

• Safety interlocks prevent accidental operation during die changes or maintenance.

• Compliance with international safety standards for industrial machinery.

The TW5100P Foam Mask Cutting Press Machine is a cutting-edge hydraulic press solution combining power, precision, and automation to deliver superior foam cutting results. Its microcomputer control system ensures repeatable accuracy, while the four-column hydraulic structure guarantees stability and durability. Widely used in the production of foam masks and other foam-based products, this machine excels in efficiency, safety, and versatility.
