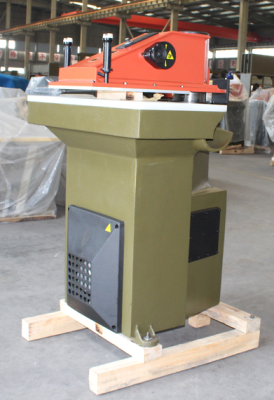

press Cut Mold|press Angle Cutting Machine TW-9.5|

The TW-9.5 Press Cut Mold / Press Angle Cutting Machine represents a pinnacle of innovation and precision engineering tailored to meet the demanding needs of modern shoe manufacturing and leather goods production industries. Designed to provide superior cutting accuracy, efficiency, and durability, this machine integrates advanced mechanical technologies with intelligent control systems, making it indispensable for factories seeking to elevate production quality and operational throughput. With its robust construction, user-friendly interface, and precise cutting capabilities, the TW-9.5 is engineered specifically for cutting shoe molds, angle trimming, and die-cutting tasks, making it an essential asset for manufacturers specializing in footwear, leather accessories, and related materials. Its blend of power, precision, and flexibility allows it to handle a broad range of materials and complex cutting patterns with remarkable ease.

Precision Press Cutting Technology with High-Quality Mold Integration

The TW-9.5 utilizes state-of-the-art press cutting technology designed to produce perfectly shaped components with consistent quality. The machine’s press mechanism delivers uniform pressure, ensuring clean, sharp cuts and superior edge definition. This is crucial for manufacturing processes where mold accuracy directly impacts product fit and finish, such as in footwear upper parts, midsoles, and outsole cutting. The machine’s compatibility with various high-grade cutting molds allows manufacturers to execute intricate designs, from simple geometric shapes to complex three-dimensional patterns, expanding creative possibilities without compromising on cutting precision.

Angle Cutting Functionality for Enhanced Product Fit and Aesthetic Appeal

One of the standout features of the TW-9.5 is its advanced angle cutting capability, which allows operators to precisely trim shoe components at various angles, thereby facilitating improved component assembly and product ergonomics. This feature is particularly valuable when producing shoe uppers and soles with beveled or contoured edges that must seamlessly align during bonding or stitching . The angle cutting function optimizes material utilization, reduces waste, and contributes to the overall aesthetic refinement of the final product, supporting manufacturers in meeting high-end market standards.

Durable Frame and Heavy-Duty Construction for Long-Term Industrial Use

Engineered with a heavy-duty steel frame and precision-machined components, the TW-9.5 is built to withstand the rigorous demands of continuous industrial operation. The rugged construction guarantees vibration stability, minimizing machine wear and tear while enhancing cutting accuracy. This robust design not only extends the machine’s service life but also ensures reliable performance in high-volume production environments, offering an excellent return on investment through reduced downtime and maintenance costs.

Hydraulic or Pneumatic Press System with Adjustable Pressure Settings

The machine is equipped with an efficient hydraulic or pneumatic press system (customizable depending on factory requirements) that delivers controlled and adjustable pressure during cutting operations. Operators can fine-tune the pressure to suit different materials such as leather, synthetic textiles, rubber, EVA, and thermoplastic polyurethane (TPU), ensuring clean cuts without damaging sensitive materials. This flexibility supports diverse manufacturing lines, enabling the TW-9.5 to process a wide range of product types, from heavy-duty outsoles to delicate shoe uppers and decorative components.

User-Friendly Control Panel with Digital Pressure and Cutting Depth Display

The TW-9.5 features an ergonomically designed control panel with a digital display that provides real-time monitoring and adjustment of pressing pressure and cutting depth. The intuitive interface simplifies operation, allowing quick setup changes and minimizing operator training time. Advanced control features also enable preset storage of common cutting parameters, facilitating swift changeovers between different product molds and cutting styles, thereby improving production line flexibility and reducing downtime.

High Productivity with Fast Cycle Times and Consistent Quality

This machine delivers high productivity by optimizing the press cycle time without compromising cutting accuracy or product quality. The fast pressing and releasing mechanism ensures quick transitions between cuts, allowing manufacturers to achieve up to 1200 to 1500 cuts per hour, depending on material and mold complexity. Consistent pressure distribution throughout the mold area ensures that each cut meets exacting quality standards, reducing rejects and improving overall factory yield.

Safety Features Including Emergency Stop and Protective Guarding

Operator safety is prioritized with integrated emergency stop buttons, protective guarding around moving parts, and safety interlocks that prevent accidental operation. These features comply with international industrial safety regulations, creating a secure working environment. The safety mechanisms reduce workplace accidents, enhance operator confidence, and align with corporate responsibility and compliance policies.

Easy Maintenance Design with Accessible Service Points

The TW-9.5 is designed for ease of maintenance, with strategically placed access points for hydraulic or pneumatic system checks, mold replacement, and routine lubrication. Regular maintenance is streamlined, enabling operators and technicians to keep the machine in peak condition with minimal downtime. This user-centric maintenance approach helps preserve machine longevity and consistent operational performance.

Compatible with Custom and Standard Cutting Dies

The machine’s versatile design allows compatibility with both industry-standard and custom-designed cutting dies. Manufacturers can tailor the dies to specific production needs, whether for standard shoe components or unique, proprietary designs, providing a competitive edge in product differentiation.

Energy Efficient and Environmentally Friendly Operation

By incorporating energy-saving hydraulic pumps and advanced control logic, the TW-9.5 operates with reduced energy consumption compared to traditional mechanical press cutters. The machine also minimizes noise and vibration emissions, contributing to a healthier and more environmentally conscious workplace.

TECHNICAL SPECIFICATIONS

• Model: TW-9.5

• Cutting Area: 900 mm x 500 mm (approximate)

• Pressing Force: Up to 50 tons (customizable)

• Press Type: Hydraulic or Pneumatic (factory selectable)

• Motor Power: 5.5 kW

• Cycle Time: Adjustable, typical 3-5 seconds per press

• Cutting Depth: Adjustable from 0 to 50 mm

• Dimensions (L x W x H): Approximately 2500 mm x 1400 mm x 1800 mm

• Weight: Approx. 2200 kg

• Power Supply: 380V, 50Hz, three-phase

• Noise Level: <75 dB(A)

• Safety Features: Emergency stop, safety guards, interlock system

• Control System: Digital control panel with pressure and depth display

OPERATIONAL ADVANTAGES

Enhanced Cutting Precision for Superior Product Quality

The TW-9.5’s precise pressure control and cutting depth adjustment enable manufacturers to produce components that fit together flawlessly, reducing rework and improving final product appearance and durability. The ability to cut complex shapes with sharp edges enhances the functional and aesthetic attributes of footwear and other leather goods.

Increased Production Efficiency and Throughput

Fast cycle times combined with easy die changeover and automated control functions enable high-volume production runs with minimal setup time. This efficiency reduces labor costs and accelerates order fulfillment, making the TW-9.5 ideal for factories handling multiple product lines or large batch orders.

Flexible Operation Across Multiple Materials and Designs

Whether working with natural leather, synthetic fabrics, EVA foam, or rubber, the machine’s adjustable pressure settings and customizable dies support a broad range of materials and cutting profiles. This flexibility makes it suitable for diverse industries including footwear, automotive upholstery, luggage manufacturing, and more.

Improved Worker Safety and Ergonomics

By automating the press and integrating comprehensive safety features, the TW-9.5 reduces operator exposure to mechanical hazards and fatigue. The ergonomic control panel placement and simple operation reduce physical strain and increase operator productivity.

Reduced Material Waste and Cost Savings

Precise cutting reduces material wastage by minimizing miscuts and the need for post-cut trimming. Efficient die design and the machine’s consistent pressure application maximize raw material usage, contributing to cost savings and sustainable production practices.

APPLICATIONS

The TW-9.5 Press Cut Mold / Press Angle Cutting Machine is perfectly suited for a wide variety of industries and production tasks, including but not limited to:

• Footwear Manufacturing: Precision cutting of shoe uppers, midsoles, outsoles, and other components for sports, casual, formal, and specialty shoes.

• Leather Goods: Cutting leather panels for bags, wallets, belts, and accessories with intricate patterns and reliable edge finishes.

• Automotive Interiors: Cutting upholstery fabrics and foam padding for vehicle seats and door panels.

• Industrial Gaskets and Seals: Producing custom-shaped gaskets and seals with precise dimensions and consistent quality.

• Packaging: Creating custom-cut foam inserts and protective padding for delicate products.

ENVIRONMENTAL AND ENERGY CONSIDERATIONS

The TW-9.5 incorporates energy-efficient hydraulic or pneumatic systems that reduce power consumption and operational costs. Its low noise emissions and reduced vibrations contribute to healthier workplace conditions. Additionally, the precision cutting minimizes waste, supporting eco-friendly manufacturing goals.

CUSTOMER SUPPORT AND WARRANTY

Each TW-9.5 machine comes with a comprehensive warranty covering mechanical and electrical components for 12 months from the date of installation. Our technical support team offers expert guidance on installation, operation, maintenance, and troubleshooting, ensuring clients maximize the machine’s value and reliability.

The TW-9.5 Press Cut Mold / Press Angle Cutting Machine stands as a robust, flexible, and highly efficient solution for modern manufacturing environments. Its advanced press technology, angle cutting capabilities, and intelligent controls empower manufacturers to achieve unmatched precision and productivity while maintaining safety and ease of use. By investing in the TW-9.5, factories gain a versatile cutting solution capable of handling complex designs, diverse materials, and high production volumes, all while reducing operational costs and environmental impact. This machine is not just a tool but a strategic asset for any manufacturer aiming to excel in competitive markets with quality products and efficient processes.
