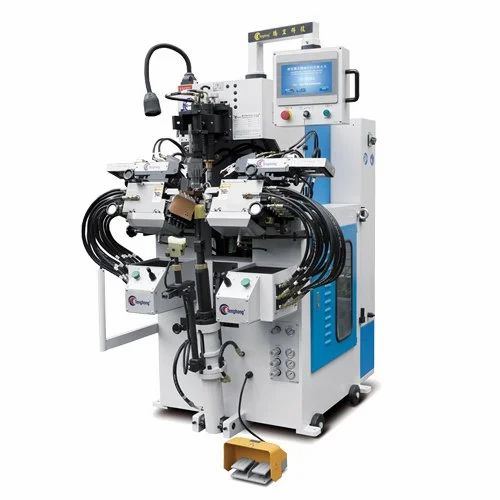

Computerized Full Automatic Cementing Toe Lasting Machine TW-689MA

The TW-689MA Computerized Full Automatic Cementing Toe Lasting Machine is a state-of-the-art footwear manufacturing solution designed to streamline the toe-lasting process. This machine integrates advanced automation with user-friendly features, ensuring consistent quality and high productivity in shoe production.

Key Features

1. Fully Hydraulic and Pneumatic Operation System

   • The TW-689MA utilizes a fully hydraulic and pneumatic system, providing stable and efficient operation for the toe lasting process.

   • This system ensures precise control over the application of adhesive and the shaping of the shoe's toe area.

2. Three Intelligent Operation Modes

   • Fully Automatic Mode: The machine autonomously performs the toe lasting process, minimizing the need for manual intervention.

   • Semi-Automatic Mode: Allows operators to control certain aspects of the process while the machine handles the rest.

   • Manual Mode: Provides complete manual control over the machine's operations, offering flexibility for specialized tasks.

3. Advanced PLC Control System

   • Equipped with a Programmable Logic Controller (PLC), the TW-689MA offers precise control over the machine's functions.

   • The system is integrated with a touchscreen interface displaying graphical symbols, real-time running states, and animated process flows, making operation intuitive and straightforward.

4. Parameter Settings with Security Features

   • Parameters such as time and stroke are set via numerical input, ensuring accuracy in the lasting process.

   • A key switch protection mechanism prevents unauthorized access to these settings, safeguarding the integrity of the machine's operations.

5. Precision Toe Lasting Mechanism

   • The machine features a four-finger lasting structure that ensures uniform application of adhesive across the toe area.

   • This design minimizes defects and enhances the quality of the finished product.

6. Dual Pincer System for Enhanced Control

   • Two pincers are employed to achieve a special counter pull in the side and heel areas, ensuring a secure fit and optimal shaping of the shoe's toe.

   • This system contributes to the overall durability and comfort of the footwear.

7. Automatic Balance Function

   • The finger-lasting mechanism is equipped with an automatic balance function, allowing for side radial automatic bonding.

   • This feature ensures a tight fit around the waist area and offers two-step operation pressure settings for customized results.

8. Hot-Melt Adhesive Application

   • The machine utilizes two floating polyester rods for direct application of hot-melt adhesives, eliminating the need for manual glue brushing.

   • This automated process improves efficiency and consistency in adhesive application.

9. Adjustable Cementing Path

   • The stop points for the cement path can be set directly via the touchscreen interface, allowing for easy adjustment of the cementing path.

   • This feature enhances flexibility and adaptability to different shoe designs.

10. Variable Glue Speed Control

    • The machine offers stepless speed regulation for glue application, enabling precise control over the adhesive dispensing rate.

    • This capability ensures optimal bonding and minimizes adhesive waste.

11. Telescopic Vertex Design

    • The vertex adopts a telescopic structure with a height fine-tuning device, allowing for precise positioning during the lasting process.

    • This design enhances the accuracy and quality of the toe lasting operation.

Technical Specifications

• Machine Dimensions: 1750 mm (L) × 1000 mm (W) × 1990 mm (H)

• Weight: Approximately 1300 kg

• Power Supply: 380V/220V

• Power Consumption: 2.2 kW

• Hydraulic Pressure: 5 MPa

• Heating Power: 1.2 kW

• Production Capacity: Up to 1500 pairs per 8-hour shift

Applications

The TW-689MA is suitable for a wide range of footwear manufacturing applications, including:

• Shoe Types: Men's, women's, and children's footwear, including sports shoes, casual shoes, and formal footwear.

• Materials: Compatible with various upper materials, such as leather, synthetic fabrics, and textiles.

• Production Environments: Ideal for both small-scale workshops and large-scale industrial production lines.

Benefits

• Increased Productivity: High-speed operation and automated processes lead to significant increases in production output.

• Consistent Quality: Precise control over cement application and lasting ensures uniform quality across all produced shoes.

• Reduced Waste: Efficient use of adhesive and materials minimizes waste, contributing to cost savings.

• Enhanced Flexibility: Quick-change features and adjustable settings allow for easy adaptation to different shoe models and sizes.

• Improved Operator Efficiency: User-friendly interface and ergonomic design enhance operator efficiency and reduce training time.

Maintenance and Support

To ensure optimal performance and longevity of the TW-689MA:

• Regular Maintenance: Scheduled maintenance, including lubrication and inspection of moving parts, is recommended.

• Spare Parts Availability: Genuine spare parts are readily available to replace worn or damaged components.

• Technical Support: Comprehensive technical support is provided, including troubleshooting assistance and software updates.

• Training Programs: Training programs are available for operators to ensure proficient use and maintenance of the machine.

The TW-689MA Computerized Full Automatic Cementing Toe Lasting Machine sets a new standard in footwear manufacturing, combining advanced technology with practical design to deliver exceptional performance. Its automated features, precision mechanics, and user-friendly interface make it an invaluable asset for any shoe production facility aiming to enhance efficiency, quality, and adaptability.
