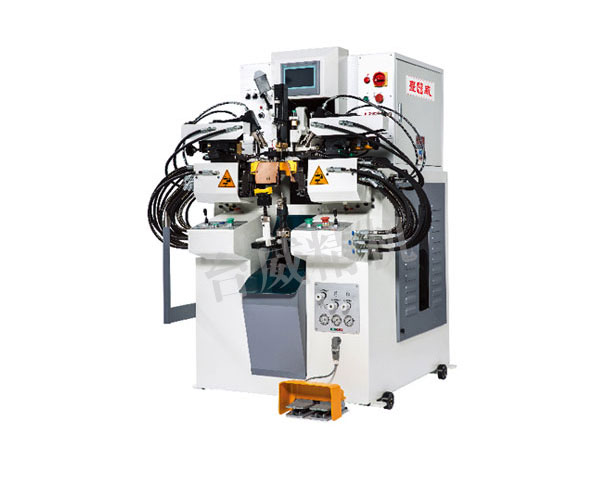

MACHINE NAME: COMPUTERIZED AUTO-CEMENT SIDE AND HEEL SEAT LASTING

MODEL NO: TW-689E

BRAND: TAIWEI

FEATURES

---

1. This machine can complete the knotting operation of the middle and back of the shoe at one time;
2. The electrical adopts PLC and graphic display touch screen control system to display the real-time operation status and action modification process animation, which is intuitive and convenient to operate;
3. The setting of gang parameters (itinerary and time) is entered numerically and protected by password to prevent improper changes by unauthorized personnel.
4. It has three intelligent operation modes, namely fully automatic mode, semi-automatic mode and manual mode;
5. The vertex adopts a telescopic structure design, and is equipped with a knot debugging and fine-tuning device for accurate positioning;
6. The tightener adopts the first strip type of wrapping and tightening, and the tightening effect is excellent;
7. The middle gang is equipped with 4 sets of side pressure and. The lipid pressure structure is specially designed to form an overlap with the rear sweeping knife mechanism to reduce the poor gang at the connection point;
8. The acupressure mechanism has the automatic leftover function and the middle bang arc automatic waist attachment in the table, and can set two levels of pressure action;
9. The inner and outer waist are equipped with a mandarin orange, and the upper is clamped with Mao Gan and then tightened inward, so that the inner waist upper is close to the shoe to achieve a perfect knot effect.





TECHNICAL PARAMETE

---

1. Capacity                : 2000Pairs/8H
2. Power                    : 2.6Kw
3. Hydraulic Pressure  : 5Mpa
4. Heating Power        : 0.4Kw
5. N.W.                      : 1080Kg
6. Dimension              : 1500x1400x1700mm

The TW-689E Computerized Auto-Cement Side and Heel Seat Lasting Machine represents the pinnacle of modern footwear manufacturing technology, offering unparalleled precision, efficiency, and adaptability. Designed for the complex task of side and heel seat lasting, this machine integrates advanced automation with user-centric features, ensuring consistent quality and high throughput in shoe production.

Advanced Computerized Control System

At the heart of the TW-689E is its sophisticated computerized control system:

• PLC-Based Operation: Utilizes a Programmable Logic Controller (PLC) to manage machine functions, ensuring precise control over the lasting process.

• Touchscreen Interface: Equipped with a user-friendly touchscreen interface that displays real-time operational data and allows for intuitive machine control.

• Graphical Display: Offers graphical representations of machine status and processes, aiding in easy monitoring and troubleshooting.

• Multi-Language Support: Supports multiple languages, accommodating diverse user bases and enhancing accessibility.(

Automated Cementing System

The TW-689E features an automated cementing system that streamlines the lasting process:

• Servo Motor Glue Feeding: Incorporates a servo motor-driven glue feeding mechanism, ensuring accurate and consistent application of adhesive.

• Three-Section Cement Control: Allows for independent control of cement application in three distinct sections, optimizing adhesive usage and reducing waste.

• Laser-Guided Cement Path: Utilizes laser technology to define the cementing path, ensuring precise application along the shoe's side and heel areas.

• Quick-Change Cementing Nozzles: Features include easily replaceable cementing nozzles, reducing downtime during maintenance and enabling quick adaptation to different shoe models.

• Precision Lasting Mechanism

The machine's lasting mechanism is designed for high precision and adaptability:

• Telescopic Structure: Employs a telescopic design for the last support, allowing for fine height adjustments to accommodate various shoe sizes.

• Independent Pincer Control: Features independently adjustable pincers for the left and right sides, enabling precise control over the lasting process.

• Pressure Adjustment: Allows for two-step pressure settings, ensuring optimal adhesion without damaging the shoe upper.

• Automatic Pincer Slipping: Incorporates a pincer slipping system that prevents excessive tension on the upper, preserving material integrity.

Enhanced Operational Efficiency

Designed to maximize productivity and minimize operator intervention:

• High-Speed Operation: Capable of processing up to 2000 pairs per 8-hour shift, significantly increasing production capacity.

• Quick-Change Mechanisms: Equipped with tool-free quick-change systems for pincers, wipers, and toe bands, reducing setup times between different shoe models.

• Automatic Error Detection: Features an auto-error warning system that alerts operators to potential issues, facilitating prompt maintenance and reducing downtime.

• Real-Time Diagnostics: Provides real-time diagnostic information on the touchscreen, enabling quick identification and resolution of operational problems.

  User-Centric Design

Focuses on ease of use and operator comfort:

• Ergonomic Layout: Designed with an ergonomic layout that minimizes operator fatigue and enhances workflow efficiency.

• Intuitive Controls: The touchscreen interface is intuitive, with clearly labeled controls and easy navigation, reducing the learning curve for new operators.

• Safety Features: Incorporates safety mechanisms such as emergency stop buttons and protective covers to ensure operator safety during machine operation.

Technical Specifications

• Machine Dimensions: 1700 x 1300 x 1750 mm

• Weight: Approximately 1045 kg

• Power Supply: 380V, 3-phase

• Power Consumption: 2.2 kW

• Oil Pressure: 50 kg/cm²

• Production Capacity: Up to 2000 pairs per 8-hour shift

• Oil Capacity: Approximately 130 liters

Applications

The TW-689E is versatile and suitable for various footwear manufacturing needs:

• Shoe Types: Ideal for men's, women's, and children's footwear, including sports shoes, casual shoes, and formal footwear.

• Materials: Compatible with a wide range of upper materials, including leather, synthetic fabrics, and textiles.

• Production Environments: Suitable for both small-scale workshops and large-scale industrial production lines.

Benefits

• Increased Productivity: High-speed operation and automated processes lead to significant increases in production output.

• Consistent Quality: Precise control over cement application and lasting ensures uniform quality across all produced shoes.

• Reduced Waste: Efficient use of adhesive and materials minimizes waste, contributing to cost savings.

• Enhanced Flexibility: Quick-change features and adjustable settings allow for easy adaptation to different shoe models and sizes.

• Improved Operator Efficiency: User-friendly interface and ergonomic design enhance operator efficiency and reduce training time.

Maintenance and Support

To ensure optimal performance and longevity of the TW-689E:

• Regular Maintenance: Scheduled maintenance, including lubrication and inspection of moving parts, is recommended.

• Spare Parts Availability: Genuine spare parts are readily available to replace worn or damaged components.

• Technical Support: Comprehensive technical support is provided, including troubleshooting assistance and software updates.

• Training Programs: Training programs are available for operators to ensure proficient use and maintenance of the machine.

The TW-689E Computerized Auto-Cement Side and Heel Seat Lasting Machine sets a new standard in footwear manufacturing, combining advanced technology with practical design to deliver exceptional performance. Its automated features, precision mechanics, and user-friendly interface make it an invaluable asset for any shoe production facility aiming to enhance efficiency, quality, and adaptability.
