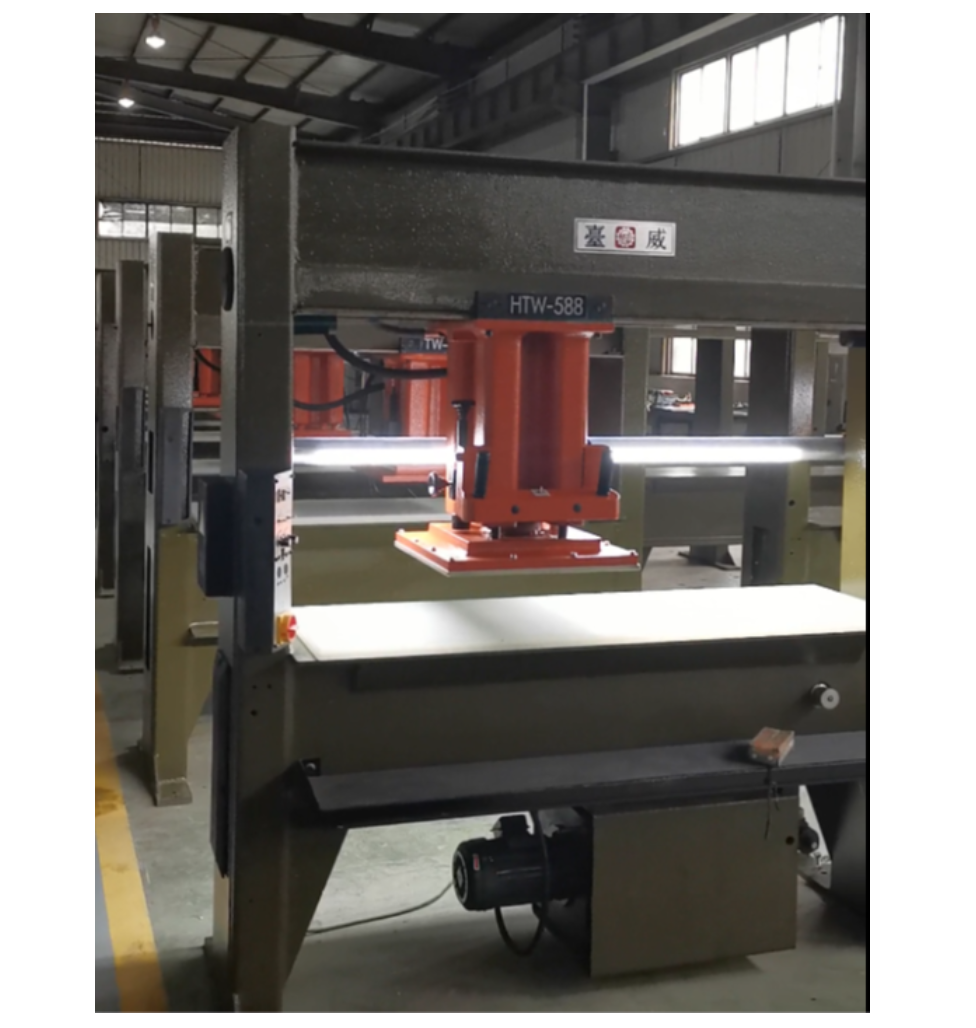

Travelling Head Cutting Machine TW-588\3

The TW-588\3 Travelling Head Cutting Machine is a cutting-edge industrial solution designed for precision die cutting across a wide variety of soft and semi-rigid materials. Engineered for efficiency, reliability, and operator convenience, this machine is an essential tool in industries such as footwear, automotive interiors, leather goods, packaging, gaskets, foam, and textile manufacturing. Equipped with a hydraulically powered, laterally movable cutting head and featuring robust design mechanics, the TW-588\3 provides exceptional performance for large-format sheet or roll material cutting tasks. It is specially designed for operations that require high cutting accuracy, frequent die changes, material versatility, and high-volume output without compromising cut quality. The machine is optimized for repetitive and complex cutting processes, allowing manufacturers to maintain tight tolerances and high productivity with minimal operator input. The TW-588\3 embodies modern mechanical design blended with intelligent control, built to last and deliver unmatched results on every stroke.

Precision Travelling Head Mechanism for Optimal Cutting Control

The primary highlight of the TW-588\3 is its travelling cutting head system, designed to glide smoothly across the machine bed with controlled lateral motion. This mechanism provides flexibility in die placement, allowing the operator to optimize every sheet’s cutting pattern for maximum material utilization. Unlike fixed-head machines that limit cutting to a static position, the travelling head system permits the head to move to any point on the cutting area. This results in even pressure distribution and consistent cutting quality across all positions. It also enables efficient handling of large dies, irregular shapes, or nesting layouts for mass production. The system is powered by precision-guided hydraulics, which provide a stable and strong downstroke for die engagement. This technology guarantees accurate and uniform cuts, especially important when cutting through multiple material layers or high-resistance composites like rubber, cork, or industrial foam.

Powerful Hydraulic Cutting System

The TW-588\3 is equipped with an industrial-grade hydraulic system, providing the necessary power to handle even the most demanding die-cutting applications. The hydraulic mechanism ensures fast response time, consistent force application, and reliable operation across continuous production shifts. Designed with dual-cylinder pressure balance, the system delivers equal force distribution across the entire cutting head surface, eliminating edge inconsistencies or material skewing during the stroke. Operators can adjust the cutting pressure according to the specific material type and thickness, ensuring clean edges without overcutting or damaging the die. This feature is particularly valuable in cutting multi-layered materials like foam and leather stacks or reinforced textiles used in automotive or medical product manufacturing. The hydraulic system’s adjustability and stability give operators complete control over the cutting outcome, reducing material wastage and boosting production consistency.

Enhanced Productivity with Intelligent Movement

To support high-speed production environments, the TW-588\3 has been designed with quick head positioning and fast stroke cycles, allowing for rapid job execution. The travelling head moves laterally along a guided rail system with precision, automatically positioning itself over the desired cutting area. Operators can manually position the head or use the automatic positioning system to recall previously stored positions. This feature significantly reduces the setup time between jobs, which is a major benefit for operations handling different die shapes, product types, or mixed material runs. Furthermore, the machine supports multi-point die placement, allowing operators to position several cutting dies across the material surface. With programmable travel lengths and memory settings, the TW-588\3 streamlines the production process, enabling one operator to manage multiple cut positions with high accuracy.

Material Versatility for Diverse Applications

One of the TW-588\3’s strongest attributes is its wide material compatibility. From delicate fabrics to dense industrial-grade rubber, this machine can cut through an extensive range of substrates without compromising on cut quality. Materials include but are not limited to:

• Natural and synthetic leather for footwear and accessories

• EVA foam, PU foam, sponge for insoles, and padding

• Textiles, mesh, canvas, and felt are used in bags and garments

• Thermoplastic sheets such as PVC, TPU, and PET

• Rubber, cork, and silicone for gasket or technical sealing applications

• Cardboard and compressed fiberboard for packaging components

This makes the TW-588\3 an ideal machine for factories that deal with multi-material product lines or serve multiple industries with a single setup.

High Cutting Precision for Mass Production

The combination of hydraulic force, precise die control, and lateral head movement ensures that every piece cut on the TW-588\3 is produced with minimal tolerance variance. Even in high-speed continuous operations, the machine maintains dimensional accuracy and edge cleanliness, which are critical for final assembly processes. Whether producing shoe insoles, car seat inserts, protective gear, or specialty packaging foam, consistency is paramount. The TW-588\3’s performance ensures that no matter the complexity or volume, every part cut meets strict dimensional standards. This level of precision also reduces the need for post-processing, minimizing labor hours and quality control rejection rates.

Ergonomic Design and Easy Operation

Operator efficiency and comfort are central to the TW-588\3’s design. The control system features an intuitive button layout and digital readouts, allowing operators to adjust stroke depth, pressure, and head position without complexity. Simple mechanical levers and digital interface options make the machine accessible to both novice and experienced users. The open design of the machine’s front and sides allows for easy material feeding and retrieval, while the wide cutting bed supports large-format materials or multi-layer stacks. Optional material clamps and guides help keep sheets aligned during cutting, improving precision and operator control. Thanks to its modular construction, the machine is also easy to maintain. Key components like hydraulic pumps, oil filters, and head positioning guides are readily accessible, ensuring minimal downtime during routine servicing.

Low Material Waste and Cost Efficiency

The TW-588\3’s programmable head movement and nesting capabilities help maximize material usage. Instead of wasting offcuts, operators can place multiple dies in tight layouts, utilizing nearly the full surface of the material sheet or roll. This level of material optimization results in substantial cost savings over large production cycles. In addition, the precise hydraulic control and die descent detection prevent unnecessary overcutting or misaligned strokes. This reduces the frequency of miscuts and minimizes both material and die wear, factors that directly contribute to operational savings and higher ROI.

Industrial-Strength Durability and Longevity

Every element of the TW-588\3 is built with industrial-grade components to ensure a long working life even under intense production loads. The machine’s heavy-duty steel frame resists vibration and distortion, ensuring precise alignment over time. High-quality bearings, pressure seals, and hardened guide rails are used throughout the machine to guarantee performance consistency. The cutting head is reinforced to withstand repeated hydraulic pressure without degradation in accuracy or mechanical alignment. With proper maintenance, the TW-588\3 can operate reliably for many years of full-time industrial use, making it a sound investment for factories looking to upgrade or expand their cutting capabilities.

Safety-Oriented Engineering

The TW-588\3 is equipped with comprehensive safety features that protect both the machine and the operator. These include:

• Two-hand control system to initiate the cutting stroke, ensuring that both hands are clear of the work area

• Emergency stop buttons are accessible from multiple sides

• Automatic head return after stroke completion

• Pressure relief valve for preventing hydraulic overload

• Overheat and oil level warning systems to protect internal components

These features comply with international safety standards, ensuring that the machine can be operated confidently in compliance with workplace safety protocols.

Smart Control and Memory Functions

For production facilities focused on flexibility and speed, the TW-588\3 includes intelligent control features that store operational presets. Operators can configure and save:

• Preferred stroke height and cutting depth

• Material type and thickness settings

• Head positioning sequences

• Job-specific pressure profiles

These memory settings allow the machine to switch between jobs quickly, reducing operator workload and minimizing human error. This is particularly useful in multi-product production lines, where different components must be cut in rapid succession.

Integration Capabilities and Upgrade Options

The TW-588\3 can be integrated into automated production lines or customized with modular attachments based on production needs. Optional upgrades include:

• Material feeding conveyors for automatic sheet or roll advancement

• Digital die positioning systems with programmable logic controls

• Laser alignment systems for die guidance and print registration

• IoT connectivity modules for real-time data tracking and remote diagnostics

With these additions, the TW-588\3 can become a central component in smart factory environments, offering live productivity tracking, predictive maintenance alerts, and quality assurance feedback loops.

Environmental and Operational Efficiency

In addition to its mechanical prowess, the TW-588\3 is designed to operate with low environmental impact. The machine uses sealed hydraulic oil systems that minimize leakage and evaporation. Oil recycling circuits reduce consumption, while intelligent cooling design minimizes heat generation. Its low-energy drive components help reduce electricity usage, and its quiet hydraulic pump ensures a more comfortable working environment with reduced noise pollution. The machine’s eco-friendly performance makes it a sustainable choice for manufacturers looking to align with green manufacturing principles without compromising productivity.

Summary of Key Features and Benefits

• Advanced travelling head system for full-range die positioning

• Robust hydraulic drive mechanism with precision pressure control

• Compatible with a wide range of materials from foam to leather

• High-speed cutting with minimal downtime and quick cycle turnover

• Ergonomic and intuitive control layout for easy operation

• Built-in memory presets for job recall and fast setup changes

• Optional upgrades for automation and IoT integration

• Heavy-duty industrial construction for long-term durability

• Intelligent layout for material optimization and reduced waste

• Fully compliant safety systems for operator protection

• Environmentally friendly operation with low power and oil usage

The TW-588\3 Travelling Head Cutting Machine is more than just a cutting tool; it is a complete manufacturing solution designed for performance, scalability, and long-term reliability. Whether your operation focuses on high-volume shoe production, multi-layer foam components, automotive upholstery, or custom packaging inserts, this machine will elevate your capabilities, improve your efficiency, and enhance your profitability. With its powerful hydraulic core, intelligent head movement, operator-friendly controls, and integration flexibility, the TW-588\3 is the perfect choice for factories ready to embrace next-level productivity and precision-driven performance.
