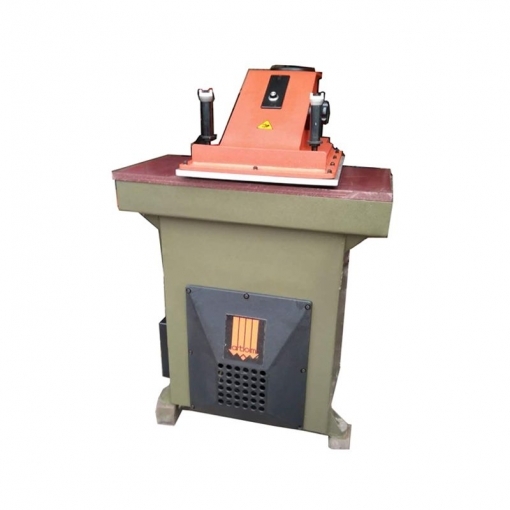

|Press Cutting By Hand TW-20C

The TW-20C Press Cutting by Hand machine is a meticulously designed manual press cutting solution ideal for industries requiring precise and reliable die cutting with full operator control. This machine combines the simplicity and flexibility of hand-operated pressing with the power and consistency of industrial-grade construction, making it a versatile choice for small to medium-scale production runs. Built for durability and ease of use, the TW-20C caters especially to workshops and manufacturers who value precision, ergonomic design, and operational safety while maintaining the tactile responsiveness that only manual operation can provide. Whether you are cutting leather, textiles, rubber, or composite materials, the TW-20C offers a robust and user-friendly platform for consistently high-quality results.

Manual Press Cutting with Enhanced Operator Control

Unlike fully automated cutting presses, the TW-20C gives operators direct tactile control over the cutting process. This hand-operated design allows experienced craftsmen to apply precise pressure tailored to the specific material and die being used. The result is excellent cut quality, minimal material waste, and the ability to handle complex or delicate materials that benefit from human judgment. The machine’s hand lever and press mechanism are designed to deliver smooth and consistent force, enabling accurate and repeatable cuts while reducing operator fatigue.

Strong and Reliable Frame Construction

The TW-20C features a heavy-duty steel frame engineered to withstand repeated pressing cycles without flexing or distortion. This sturdy construction ensures alignment and consistency across thousands of cuts, preserving die sharpness and maintaining precise cutting depth. Its compact yet robust frame allows the machine to be securely mounted on workbenches or stands, providing a stable base during operation and enhancing operator safety.

Adjustable Pressing Force and Stroke

The press lever mechanism offers adjustable force application, allowing users to customize the amount of pressure exerted on the cutting die. This flexibility is essential when working with materials of varying thickness and toughness, from thin fabrics to thick leather or dense rubber sheets. Stroke length can also be fine-tuned to optimize cutting action, ensuring clean cuts without damaging the base materials or dies.

Ergonomic Design for Comfortable Operation

Designed with the operator’s comfort in mind, the TW-20C incorporates an ergonomically positioned lever arm with a comfortable grip to reduce strain during extended use. The optimal lever length provides mechanical advantage, minimizing the physical effort needed to complete each cut. Additionally, the working height and clear visibility of the cutting area allow for precise die placement and alignment, contributing to consistent production quality.

Simple, Intuitive Operation

One of the core advantages of the TW-20C is its straightforward operation. The manual press requires no complicated programming or electronic control systems, making it accessible to operators with varying skill levels. This simplicity also means reduced maintenance complexity and lower overall cost of ownership. The machine includes clear markings and adjustment points for force and stroke, helping operators quickly set up for different materials and die types.

Wide Range of Material Compatibility

The TW-20C excels in cutting an extensive array of materials, including natural and synthetic leather, textiles, rubber, foam, plastics, and composite sheets. This versatility makes it an excellent choice for manufacturers in footwear, fashion accessories, automotive, packaging, and crafts industries. The ability to handle diverse materials with precision gives manufacturers greater flexibility in product design and innovation.

Enhanced Safety Features for Manual Operation

Although manually operated, safety remains a priority in the design of the TW-20C. Safety guards protect the operator’s hands from the die area during pressing, and a locking mechanism prevents accidental lever movement when the machine is idle. The machine’s robust frame and secure mounting points minimize vibrations and movement, reducing the risk of injury and improving cut accuracy.

Compact Size and Portability

The TW-20C is designed to occupy minimal workspace while maintaining full functionality. Its relatively compact dimensions make it ideal for workshops with limited space or for use in production lines where multiple machines may be operated side by side. Despite its sturdy construction, the machine’s manageable weight allows it to be relocated or reconfigured within the facility as production needs evolve.

TECHNICAL SPECIFICATIONS

Model: TW-20C
Cutting Force: Operator-controlled, maximum mechanical leverage
Lever Length: Ergonomically optimized for force application
Cutting Area: Suitable for dies up to 600mm x 400mm (varies with die size)
Machine Dimensions (LWH): Approximately 1500 mm x 900 mm x 1800 mm
Machine Weight: Approximately 650 kg
Power Supply: Manual operation, no electricity required
Safety Features: Protective guards, lever lock, stable mounting
Operation Mode: Hand-operated lever press
Materials Supported: Leather, textiles, rubber, foam, plastics, composites

APPLICATIONS

The TW-20C is ideal for a wide variety of cutting and die-cutting applications across multiple industries, including:

• Footwear manufacturing: Cutting leather uppers, soles, and soft midsoles with manual precision.

• Leather goods: Crafting bags, belts, wallets, and accessories where exact control over cut depth and pressure is critical.

• Textile industry: Cutting fabric patterns for garments, upholstery, and fashion accessories.

• Rubber and foam processing: Producing seals, gaskets, and padding components.

• Packaging: Cutting cardboard, plastic sheets, and foam inserts for custom packaging solutions.

• Crafts and prototyping: Ideal for small batch or custom product runs requiring flexible, precise cuts.

ADVANTAGES AND BENEFITS

Precision and Control

The manual operation allows skilled workers to make nuanced adjustments during cutting, achieving better results on complex or delicate materials. This personal control is especially beneficial in artisanal or custom production environments.

Cost-Effective Solution

Without the need for electrical components or complex automation, the TW-20C is an economical choice for businesses needing reliable cutting performance without large upfront investments in automation.

Low Maintenance and Durability

The simple mechanical design minimizes wear points and reduces maintenance frequency. Routine lubrication and periodic inspection of the lever and press components ensure years of dependable service.

Easy to Learn and Operate

Operators can quickly become proficient with the machine due to its straightforward mechanism and intuitive setup, reducing training time and improving workforce flexibility.

Portability and Space Efficiency

Its relatively light weight and compact footprint make the TW-20C suitable for dynamic workshop environments where flexibility and space savings are important.

FUNCTIONALITY IN DETAIL

Lever-Operated Pressing Mechanism

The core of the TW-20C’s functionality lies in its lever-operated mechanism. The lever arm is designed to multiply operator input force, enabling the user to generate high cutting pressure with minimal effort. The press stroke is smooth and controlled, allowing the operator to gradually apply force for optimal cut quality. The mechanical advantage also protects operators from strain injuries during repeated cycles.

Die Mounting and Alignment

The machine is designed to accommodate various cutting dies that can be securely mounted to the press base. The cutting area is visible and accessible, allowing operators to precisely position dies and materials before pressing. Adjustable stops and guides assist in repeatable alignment, improving consistency for batch production.

Safety Considerations

To prevent injury, the TW-20C features fixed guards around the pressing area. The lever arm is equipped with a locking mechanism to prevent accidental movement when not in use, and the stable frame reduces machine vibration and movement during operation. Operators are encouraged to use personal protective equipment and follow standard safety procedures during operation.

Maintenance and Service

Routine maintenance is straightforward, involving lubrication of pivot points and inspection of press components. The machine’s simple construction means most maintenance tasks can be performed quickly without special tools or technical expertise. Replacement parts such as bushings, lever grips, and springs are readily available from the manufacturer to ensure long-term operation.

INDUSTRY INSIGHTS AND CUSTOMER USE CASES

Artisan Footwear Workshops

Artisan shoemakers benefit greatly from the TW-20C because it allows precise, repeatable cuts while maintaining the hand-crafted feel essential to their products. The ability to control pressure manually helps preserve the integrity of delicate materials like soft leather or suede, critical for high-end shoes. Small batch production and prototyping are streamlined due to the quick setup and flexibility.

Small-Scale Leather Goods Production

Manufacturers of belts, wallets, and bags use the TW-20C for accurate cutting of both thick and thin leather materials. The press provides the reliability of a powered machine with the tactile feedback required for detailed cuts and embossing. The machine’s portability allows it to be used in multi-purpose workshops.

Textile Pattern Cutting

Textile factories and fashion designers employ the TW-20C to produce fabric patterns for sample making or limited runs. The manual control permits adjustments to cutting force depending on fabric type and layering, reducing material damage and improving cut accuracy.

Rubber and Foam Component Fabrication

In the production of automotive seals, padding, or packaging inserts, the TW-20C’s consistent mechanical force ensures clean, precise cuts that meet stringent quality standards. The manual nature of the machine allows operators to manage tough materials without risking overcut or die damage.

TRAINING AND SUPPORT

New users of the TW-20C receive detailed training on operation, safety, and maintenance, either on-site or via comprehensive instructional materials. The manufacturer provides ongoing technical support and spare parts availability to ensure minimal downtime and sustained productivity.

ENVIRONMENTAL AND SAFETY COMPLIANCE

The TW-20C is designed to comply with relevant workplace safety standards and environmental guidelines. Its manual operation eliminates electrical hazards and minimizes energy consumption, making it an environmentally friendly choice.

The machine’s safety features help protect operators from common hazards associated with press cutting.

The TW-20C Press Cutting by Hand machine stands out as a reliable, ergonomic, and cost-effective manual press cutting solution. It is perfectly suited to workshops and manufacturers seeking precise, consistent die cutting with full operator control. Its robust construction, ease of use, and broad material compatibility make it a versatile tool for a variety of industries, from footwear and leather goods to textiles and packaging. Whether for artisanal craft production or small-scale industrial use, the TW-20C delivers excellent cutting performance, safety, and operational comfort. It represents a valuable investment for businesses looking to enhance quality and efficiency without the complexity and cost of automated presses.
