Travelling Head (Manual) HTW-588/14

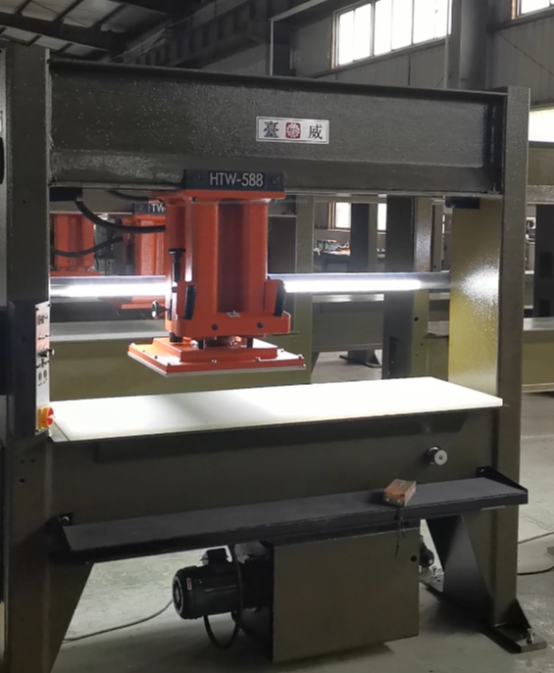

The Travelling Head (Manual) HTW-588/14 is a versatile and robust hydraulic die cutting press engineered and offered by APMC for a wide range of industrial applications. Designed with precision and ease of use in mind, this machine is tailored for efficient cutting operations involving small to medium-sized dies. It accommodates materials supplied in sheet or rolled form, providing flexibility in handling various substrates including leather, rubber, textiles, plastics, foam, and more.The HTW-588/14’s hydraulic traveling head moves smoothly from side to side within the press frame, controlled by an operator using manual positioning of the die and simple controls for the head movement. This configuration maximizes material utilization while allowing high-precision cutting, even with complex dies. The design ensures that users can adapt the machine to a diverse array of production requirements.

Core Features

 Hydraulic Traveling Head Mechanism

The defining characteristic of the HTW-588/14 is its hydraulic traveling head, a critical component that ensures precise, consistent force application during the cutting process. The hydraulic system is engineered for reliability, providing smooth up-and-down movements that translate into uniform cutting strokes.

• The hydraulic cylinder offers robust cutting force to handle a variety of materials, from thin textiles to thick rubber sheets.

• This mechanism minimizes mechanical wear and reduces maintenance frequency, ensuring long-term operational efficiency.

• The traveling head’s traverse motion is powered by an electric motorized system, enabling smooth lateral movements over the cutting bed with consistent speed and positioning accuracy.

 Manual Die Positioning with Controlled Cutting Head Movement

Operators manually position the cutting die over the material to maximize material use and adjust for varied product sizes and shapes. The traveling head’s motorized traverse then moves smoothly over the die, activating the hydraulic cylinder to deliver the cutting stroke.

• This combination of manual and motorized control empowers operators to optimize cutting patterns, minimizing waste.

• Manual die placement offers flexibility for custom or short-run jobs.

• The machine’s controls facilitate precise cutting head positioning, ensuring exact alignment with the die for flawless cuts.

 Versatile Material Compatibility

The HTW-588/14 is capable of processing a wide spectrum of materials used in industries such as footwear manufacturing, automotive component production, packaging, and textile processing.

• Suitable materials include natural and synthetic leather, rubber, plastic films, textiles, foam sheets, cardboard, and composites.

• It supports single and multi-layer cutting, increasing productivity for batch operations.

• The press effectively handles both sheet and roll materials, allowing it to adapt to diverse manufacturing workflows.

 Range of Tonnages and Bed Sizes

To accommodate varying production needs, the HTW-588/14 comes in a range of tonnages and bed dimensions. This flexibility enables manufacturers to select a model that precisely matches their product specifications and operational scale.

• The tonnage range spans from 20 tons to 35 tons of cutting force, providing adequate power for most small to medium die-cutting applications.

• Bed sizes vary, typically from approximately 20 to 30 inches in depth and 60 to 102 inches in width, offering generous cutting areas for various die sizes.

• The cutting stroke ranges between 4.3 inches and 9.8 inches, enabling precise control over cut depth and accommodating thicker materials when necessary.

Technical Advantages

 Enhanced Operator Safety

The HTW-588/14 is designed with operator safety as a paramount concern. Safety features include:

• Control panels and actuation elements are ergonomically positioned, allowing the operator to maintain safe distances during machine operation.

• Emergency stop mechanisms and interlocks are integrated to instantly halt machine movement if unsafe conditions are detected.

• The hydraulic system includes overload protection valves that prevent excessive force application, safeguarding both the operator and the tooling.

 Simple and Intuitive Operation

One of the key benefits of the HTW-588/14 is its straightforward, user-friendly interface.

• Operators benefit from clear, intuitive pushbutton controls that facilitate rapid learning curves and reduced training times.

• Manual die placement combined with motorized cutting head traversal strikes a balance between automation and control, making it adaptable for various operator skill levels.

• The machine includes easy-to-adjust settings for stroke length and cutting pressure, allowing quick changes between job runs.

 Robust Construction for Long-Term Durability

Built from high-quality steel and precision-engineered components, the HTW-588/14 is constructed to withstand the rigors of continuous industrial use.

• Its rugged frame provides stability and vibration resistance, critical for maintaining cutting accuracy.

• Components are sourced from trusted suppliers and undergo stringent quality checks.

• The hydraulic system utilizes premium seals and hoses to ensure leak-free operation and extended service life.

 Energy Efficiency

The HTW-588/14 is designed to optimize energy consumption without compromising cutting power.

• Its hydraulic pump and motor system operate efficiently, reducing electrical costs and environmental impact.

• Energy-efficient motor drives for the traveling head movement contribute to overall machine sustainability.

• The system minimizes idle power use through intelligent control circuits.

Applications and Use Cases

The HTW-588/14 finds extensive use in industries where precision die cutting is essential:

• Footwear Production: Cutting of shoe soles, uppers, insoles, and lining materials.

• Leather Goods: Manufacturing of wallets, belts, handbags, and accessories.

• Automotive Components: Production of gaskets, seals, and interior trim parts.

• Packaging: Die cutting of foam inserts, cardboard, and plastic components.

• Textile Processing: Cutting of fabric layers for garments, upholstery, and technical textiles.

• Rubber and Foam Products: Gasket cutting, shock-absorbing pads, and protective inserts.

The machine’s versatility allows it to handle both prototype and full production runs, serving small workshops as well as large manufacturing facilities.

Customization and Optional Features

APMC offers customization options to adapt the HTW-588/14 to specific customer needs, including:

• Variable Cutting Force Adjustment: For sensitive materials, the cutting pressure can be finely tuned.

• Extended Bed Sizes: Custom bed dimensions to fit larger dies or multiple dies.

• Enhanced Control Panels: Upgraded electronic controls with programmable logic controllers (PLC) for automated stroke programming.

• Additional Safety Guards: Custom safety enclosures or light curtains for enhanced operator protection.

• Die Rails and Holders: Options for securing dies firmly to the bed to prevent shifting during cutting.

• Integrated Feed Rollers: Manual or programmable incrementing feed rolls to facilitate material handling.

Maintenance and Support

The HTW-588/14 is engineered for ease of maintenance:

• Critical hydraulic components are accessible for inspection and servicing.

• The machine’s modular design simplifies the replacement of worn parts.

• APMC provides comprehensive technical support and spare parts availability globally.

• Regular maintenance schedules recommended include hydraulic fluid checks, seal inspections, and mechanical lubrication.

• Operator manuals and training programs ensure customers maximize machine uptime and lifespan.

Benefits Summary

• Versatile and Flexible: Supports a wide range of materials, die sizes, and production volumes.

• Accurate and Reliable: Hydraulic control and motorized traveling head provide consistent, clean cuts.

• User-Friendly: Manual die positioning combined with motorized controls offers ease of use.

• Safe: Integrated safety features protect operators and tooling.

• Durable: Constructed for long-term industrial performance with minimal maintenance.

• Cost-Effective: Energy-efficient operation and minimal downtime lower total cost of ownership.

• Adaptable: Customizable to fit unique customer requirements and workflows.

The Travelling Head (Manual) HTW-588/14 by APMC stands as a dependable and efficient solution for die cutting needs in diverse manufacturing environments. Its robust hydraulic traveling head, combined with manual die placement and motorized head movement, offers a balanced approach to precision, flexibility, and operator control.Whether cutting leather for shoes, rubber for automotive gaskets, or textiles for fashion, the HTW-588/14 is designed to optimize material usage, reduce waste, and maintain production flow with minimal downtime. Its range of tonnages, bed sizes, and cutting strokes allows manufacturers to select the model best suited to their operational demands.The machine represents a smart investment for companies seeking high-quality, durable die cutting presses that deliver consistent performance, easy maintenance, and safe operation over many years.
