MACHINE NAME: 9 PINCERS COMPUTER MEMORY CONTROL AUTOMATIC CEMENTING TOE LASTING MACHINE

MODEL NO: TH-747MA

BRAND: TENGHONG

FEATURES

• The mid soles and vamps do not need to cement at first because of the automatic cementing design it can not only reduce labor but also be unglued when heating after forming ensuring the perfect shape.
• The rising stop point and the drafting stop point of the newly designed last supporter are adjusted speedily and externally accompanied by the digitized position indicator with a precision up to 0.1mm, which is the most accurate repeatability.

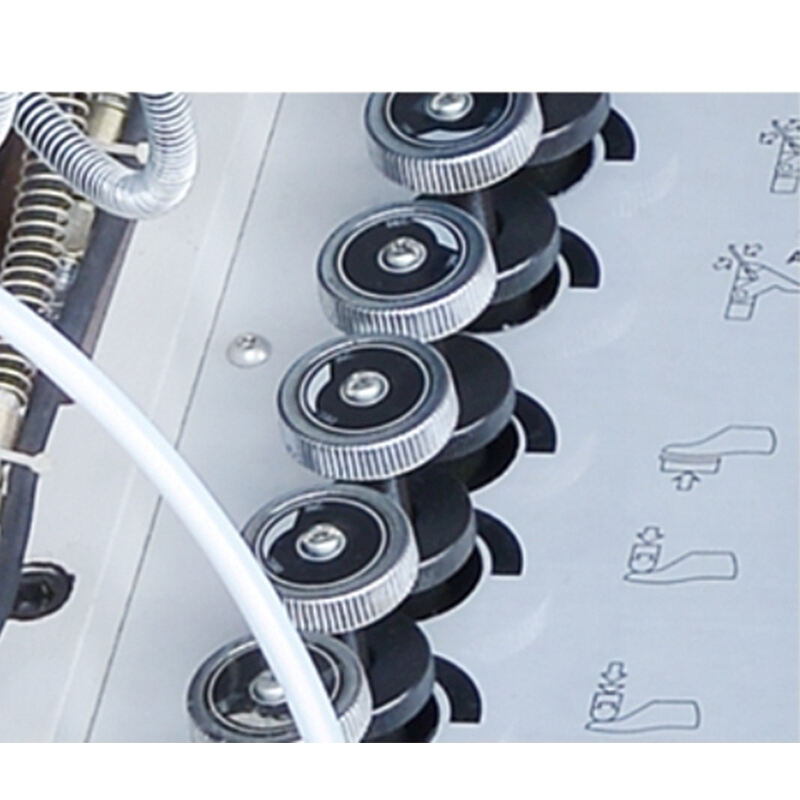

• The centralized control of selection and function switches make the operation more convenient.
• The middle pincer can be adjusted for yawing to be left and to the right within 15 Degree each side according to the toe cap shape suitable for special shoe models and pincers assembly arrangement.
• The fifth pincer has the function of inward rotation the rotation angle adjustment is depending on the demands and enabling the shoe more fit the shoe last when lasting.
• the machine can be installed additionally with the auxiliary wiper and side pressing body according needs.

TECHNICAL PARAMETER

1. Pincers                   : 9
2. Capacity                 : 1600 pairs/8H
3. Power                     : 3HP
4. Net weight              : 1200kg
5. Oil pressure            : 50kg/cm2
6. Heating Power         : 1.75kw
7. Oil Filling                : 115 liters
8. Gross weight           : Be provided before shipment.
9. Dimension               : 1750(L)x980(W)x1950mm(H)
10. Packing size            : 1860(L)x1030(W)x2160mm(H)

The TH-747MA is a state-of-the-art automatic toe lasting machine engineered to deliver precision, efficiency, and consistency in high-volume footwear manufacturing. Featuring 9 independently controlled pincers, an intelligent PLC control system, a touchscreen interface, and a multi-stage automatic cementing mechanism, this machine is ideal for medium to large-scale shoe factories aiming to enhance productivity while maintaining high quality standards. At its core, the TH-747MA combines advanced mechanical engineering with smart automation. It minimizes manual labor, increases precision during the lasting process, reduces errors, and ensures perfect shoe shape retention. Whether you're manufacturing casual shoes, dress shoes, or complex footwear models with unique toe caps, the TH-747MA offers the flexibility, reliability, and innovation required by modern shoe manufacturers.

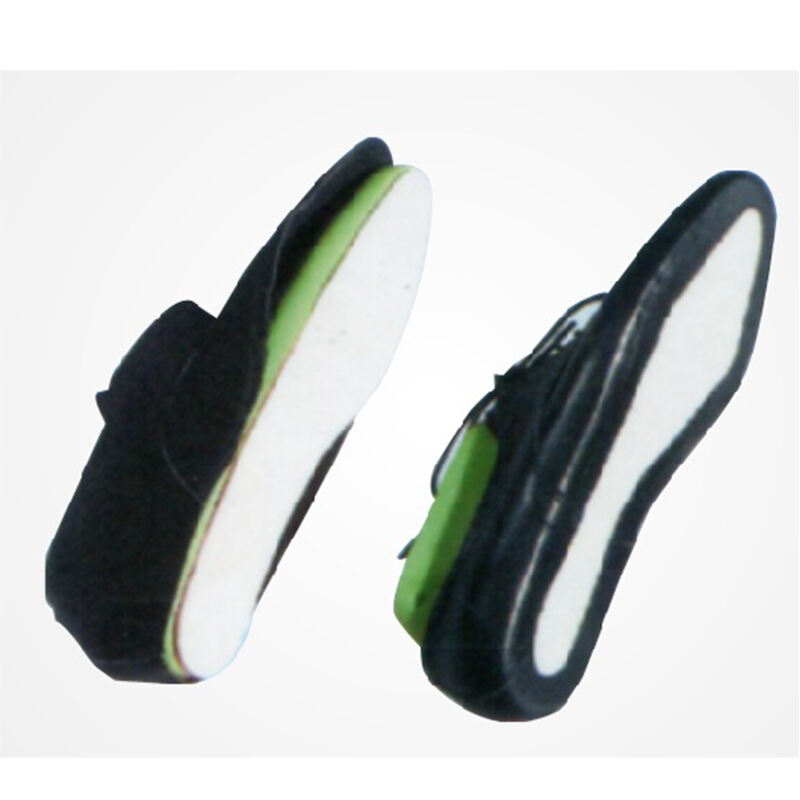

Automatic Cementing Design for Mid-Sole and Vamp

The TH-747MA revolutionizes the traditional toe lasting process by integrating an automatic cementing system. Unlike conventional machines that require manual cementing before forming, this innovative machine eliminates pre-cementing, saving labor time and costs significantly.

• Advantages:

  • Eliminates the pre-cementing step

  • Reduces labor costs

  • Ensures lasting form retention without delamination

  • Improves shaping accuracy and consistency

Intelligent Touchscreen with Full Parameter Control

All critical settings and adjustments can be managed via a user-friendly touchscreen interface. The lasting knife movements, sweep speeds, and micro-adjustments can be fine-tuned with ease.

• Key Features:

  • Digital speed and micro-adjustment control

  • Real-time parameter display

  • Simplifies adjustments and increases operational precision

  • Operators can quickly learn and use the interface, reducing training time

Three-Stage Mechanical Design with Electronic Ruler Precision

This model adopts a three-stage toe lasting mechanism. Each section is independently optimized using electronic ruler feedback, allowing the machine to conform to the natural curve of any shoe last.

• Precision Benefits:

  • Follows the shoe’s arc precisely

  • Enhanced toe shape consistency

  • Perfect for shoes with curved or non-standard toe designs

Optimized Toe Shaping via Sectional Arrangement

The three-section design is intentionally configured to reflect the natural curvature of most shoe types, offering a more natural and snug fit during toe formation.

• Outcome:

  • Enhanced aesthetics and comfort

  • Perfect toe shaping with reduced defects

  • Uniformity across large production batches

Advanced Hydraulic and Circuit Systems

The TH-747MA incorporates a hydraulic drive system complemented by high/low voltage circuit design, ensuring stable, smooth, and safe operation under continuous use.

• Engineering Benefits:

  • Improved machine stability under pressure

  • Reduced risk of malfunction

  • Long service life under heavy-duty production conditions

PLC System with Graphic Touch Interface

Equipped with an intuitive PLC control system, the machine allows operators to control every mechanical and timing function easily. It also provides graphic data visualization for improved diagnostics and system control.

• Control Features:

  • Stores up to 100 shoe-lasting configurations

  • Saves pincer location and lasting parameters

  • Quickly switch between shoe models

  • Prevents downtime during shoe style transitions

Security-Enhanced Parameter Setting

All stroke and time parameters are numerically set and protected via a key switch security system, ensuring only authorized personnel can modify sensitive settings.

• Security Features:

  • Prevents unauthorized access

  • Reduces production inconsistencies

  • Maintains quality control

Comprehensive Diagnostic and Error Reporting

The TH-747MA includes a built-in error diagnostic system, reducing troubleshooting time and enabling quicker recovery during faults or operational anomalies.

• Support Advantages:

  • Alerts and displays errors in real-time

  • Helps maintenance teams pinpoint issues rapidly

  • Increases machine uptime

Pincer Functionality and Customization

Nine Independent Pincers for Flexible Toe Lasting

The TH-747MA utilizes nine fully adjustable pincers, each capable of independent control for fine-tuning the grip on different shoe upper materials and toe shapes.

• Precision Control:

  • Enhanced fit for various shoe styles

  • Perfect for complex or custom footwear designs

  • Maintains shape integrity during forming

Middle Pincer with 15° Bidirectional Deflection

The central pincer offers up to 15 degrees of movement to the left or right. This allows it to accommodate asymmetric toe caps and fashion footwear requiring unique shaping dynamics.

Automatic Rotation for Fifth Pincer

To improve the lasting effect on the inner waist, the fifth pincer can be set to perform a rotational movement, achieving a better contour around curved areas.

Manual and Automatic Pincer Adjustments

Operators can choose between:

• Manual lift/lowering

• Automatic pull-down stroke setting

This flexibility ensures that the vamp tension is optimized for a secure fit during the lasting process.

Individual Group Pincer Control

Once the vamp is secured, the pincers within the group can be manually released or clamped, providing the operator with complete control over the shaping process.

Inner Support Table Features

External Height Adjustment with Indicator

The inner support table’s height is externally adjustable and features an indicator ruler, allowing for quick and accurate configuration.

Dual-Stage Rise with Heel Top Seat Lock

The support table rise mechanism operates in two stages, synchronized with the heel top seat action. This prevents the last from slipping and ensures a stable base for precise toe lasting.

16mm Forward/Backward Adjustment

The platform’s forward/backward travel is up to 16mm, easily controlled via a front-positioned handwheel, allowing for fine-tuned fitting based on shoe size and style.

Press Head Mechanics

Two-Stage Pressure Adjustment

The press head uses an adjustable two-stage pressure mechanism, enabling operators to configure:

• Constant pressure control

• Positioning control

This functionality enhances press precision and caters to a variety of materials and design requirements.

Technical Specifications

Why Choose the TH-747MA?

Efficiency and Labor Savings

The elimination of manual cementing at the start of the process means faster production, fewer workers required, and less room for error.

High Customization and Flexibility

With nine programmable pincers, adjustable support table features, and customizable parameters, this machine supports a wide variety of shoe styles—from traditional designs to avant-garde fashion footwear.

Robust Diagnostics and Memory Features

The PLC’s 100 configuration memory and built-in diagnostic functions mean fast changeovers, minimal downtime, and streamlined production management.

Designed for High-Volume Operations

With a productivity rate of 2000 pairs per 8 hours, this machine is a powerful workhorse ideal for mid-to-large-scale manufacturers that prioritize both speed and quality.

Applications

• Men’s and Women’s Dress Shoes

• Fashion Footwear with Unique Toe Caps

• Casual Shoes and Loafers

• Custom Footwear Production

• OEM Shoe Manufacturing

Maintenance and Operational Tips

1. Daily Check: Clean the pincers and knife edges to avoid residue buildup that could affect precision.

2. Weekly Lubrication: Ensure the hydraulic system is adequately lubricated and oil levels are maintained.

3. Screen Backup: Regularly back up PLC configurations to avoid data loss.

4. Training: Train staff on the touch panel and pincer configuration to maximize efficiency.

5. Calibration: Calibrate the electronic ruler and indicator rulers monthly to ensure accurate readings and alignment.

The TH-747MA 9 Pincers Computer Memory Control Automatic Cementing Toe Lasting Machine is more than just a machine—it's a comprehensive toe lasting solution. Whether you're producing 500 or 5,000 shoes a day, the TH-747MA’s cutting-edge automation, intelligent controls, and robust construction will keep your production line running efficiently, precisely, and profitably. With features tailored to reduce manual labor, increase productivity, and ensure consistent quality, the TH-747MA is a future-ready investment for footwear manufacturers aiming to dominate in a competitive market.
