MACHINE NAME: 9 PINCERS COMPUTER MEMORY CONTROL AUTOMATIC CEMENTING TOE LASTING MACHINE

MODEL NO: TH-739MA

BRAND: TENGHONG

FEATURES

• Oil pressure operation system is adopted, the machine is more stable when it is working.
• The PLC system with the touch screen make the machine operation stable and simple.
• Set parameters (stroke and time) by entering numbers, and set key switch to prevent the changing by non-authorized.
• The PLC controller can save 100 groups of shoe patterns parameter data and location of pincers.
• Error diagnostic function and save troubleshooting time.
• Optional pincers with quick removal design easy to replace.
• The middle pincer can make 15 degrees deflection to the left and right suitable for special toe cap and shoe models arrangement.
• The fifth pincer can be set automatic rotation action to make the inner waist last of the best effect.
• After the pincer holds the vamp, you can manually control the release and clamp of the pincers in the same group.
• The pressure can be depressurized at the second rise of the inner supportable.

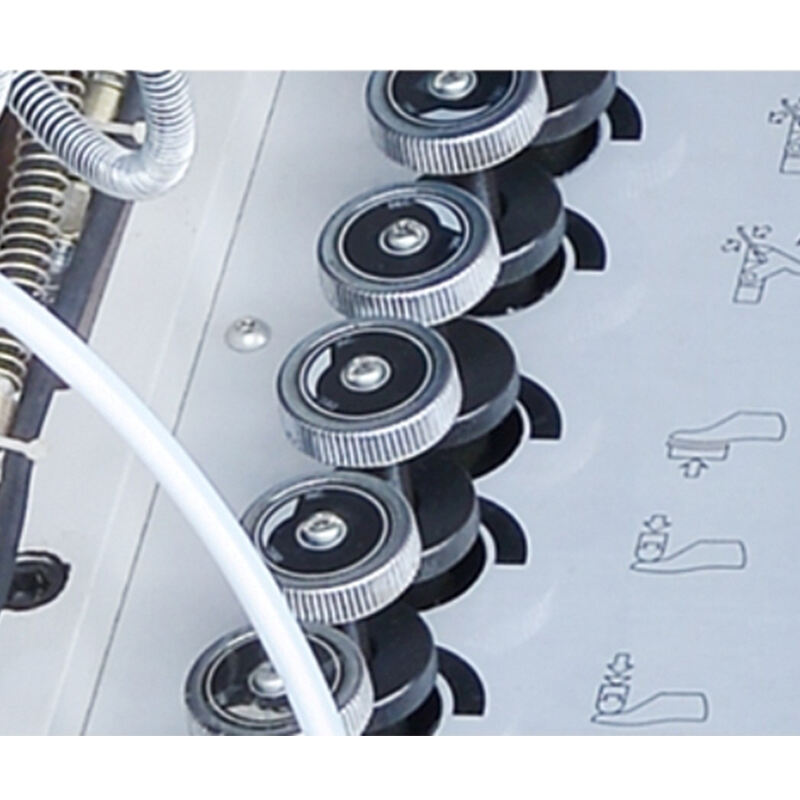

• The height of the inner supportable is adjusted by the outside of the machine and is displayed with an indicator ruler.
• The inner support table rise can be set as a two stage action with the heel top seat action to prevent the last slide.
• The distance off front and back positions of the inner support platform is up to 16mm, it can be adjusted by the hand wheel in front of the machine.
• The press head mechanism adopts adjustable two stage pressure and it can be set to constant pressure control or positioning control during the first pressure.
• Optional auxiliary sweep knife mechanism, auxiliary holding mechanism and automatic glue feeding mechanism.
• Pincer plate has the function of electric control left and right lateral opening and closing its convenient to replace pincers.
• The machine has automatic gluing function precise gluing position effectively reducing Laboure and increasing production.

TECHNICAL PARAMETER

1. Pincers                   : 9
2. Capacity                 : 2000 pairs/8H
3. Power                     : 3HP
4. Net weight              : 1200kg
5. Oil pressure            : 50kg/cm2
6. Heating Power         : 2kw
7. Oil Filling                : 115 liters
8. Gross weight           : Be provided before shipment.
9. Dimension               : 1750(L)x980(W)x1950mm(H)
10. Packing size            : 1860(L)x1030(W)x2160mm(H)

In the ever-evolving landscape of footwear manufacturing, precision, efficiency, and adaptability are paramount. The TH-739MA 9 Pincers Computer Memory Control Automatic Cementing Toe Lasting Machine stands as a testament to advanced engineering, designed to meet the rigorous demands of modern shoe production. With its state-of-the-art features and robust construction, the TH-739MA ensures consistent quality, reduced downtime, and enhanced productivity.

Hydraulic Operation System

>span class=ms-1 inline-flex max-w-full items-center relative top-[-0.094rem] animate-[show_150ms_ease-in]>

PLC Controller with Touchscreen Interface

Equipped with a Programmable Logic Controller (PLC) and a user-friendly touchscreen interface, the machine offers intuitive operation. Parameters such as stroke and time can be set by entering numerical values, and a key switch prevents unauthorized changes, enhancing operational security.

Memory Storage for Shoe Patterns

The PLC controller can store up to 100 groups of shoe pattern parameter data and pincer locations. This feature allows for quick retrieval and setup, significantly reducing changeover time between different shoe models and increasing overall production efficiency.

Error Diagnostic Function

An integrated error diagnostic function enables rapid identification and troubleshooting of issues, minimizing downtime and maintaining continuous production flow.

Quick-Removal Pincers

The machine features optional pincers with a quick removal design, facilitating easy replacement and maintenance. This design minimizes downtime during pincer changes and ensures consistent, lasting quality.

Adjustable Middle and Fifth Pincers

• Middle Pincer Deflection: The middle pincer can deflect 15 degrees to the left and right, accommodating special toe cap shapes and various shoe model arrangements.

• Fifth Pincer Rotation: The fifth pincer can be set for automatic rotation, enhancing the lasting effect on the inner waist of the shoe.

Manual Control of Pincer Groups

After the pincers hold the vamp, operators can manually control the release and clamp of the pincers within the same group. This feature allows for fine-tuning during the finishing process, ensuring optimal fit and finish.

Two-Stage Inner Support Table Rise

The inner support table's height is adjustable from the machine's exterior and displayed with an indicator ruler. It can be set for a two-stage rise action, working in conjunction with the heel top seat action to prevent the latter from sliding, thereby ensuring precise positioning during lasting.

Adjustable Inner Support Platform

The front and back positions of the inner support platform can be adjusted up to 16mm using a handwheel located at the front of the machine. This adjustability allows for the accommodation of various shoe sizes and designs, enhancing the machine's versatility.

Two-Stage Press Head Mechanism

The press head mechanism adopts an adjustable two-stage pressure system. It can be set to either constant pressure control or positioning control during the first pressure stage, providing flexibility to suit different materials and shoe designs.

Optional Auxiliary Mechanisms

Depending on production needs, the TH-739MA can be equipped with optional auxiliary mechanisms, including:

• Auxiliary Sweep Knife Mechanism: Enhances the lasting process by ensuring smooth and uniform material application.

• Auxiliary Holding Mechanism: Provides additional support during the lasting process, improving accuracy and consistency

• Automatic Glue Feeding Mechanism: Automates the glue application process, ensuring precise gluing positions, reducing labor requirements, and increasing production efficiency.

Electric Control Pincer Plate

The pincer plate features electric control for left and right lateral opening and closing, facilitating convenient pincer replacement and maintenance.

Technical Specifications

• Model: TH-739MA

• Number of Pincers: 9

• Voltage: 380V

• Power: 2 HP

• Heating Power: 1.75 kW

• Oil Pressure: 50 kg/cm²

• Productivity: 2000 pairs per 8-hour shift

• Oil Filling Capacity: 115 liters

• Net Weight: 1200 kg

• Machine Dimensions: 1750 mm (L) × 980 mm (W) × 1950 mm (H)

• Packing Size: 1860 mm (L) × 1030 mm (W) × 2160 mm (H)

Operational Advantages

• High Precision: The digitized adjustments ensure consistent and precise toe lasting, reducing material wastage and rework.

• Enhanced Productivity: With a capacity of 2000 pairs per 8-hour shift, the TH-739MA meets high-volume production demands.

• Versatility: The ability to store multiple shoe models and adjust to various materials makes it suitable for diverse production lines.

• Reduced Downtime: Quick adjustments and memory storage minimize setup times between different production runs.

Applications

The TH-739MA is ideal for manufacturers producing:

• Casual Footwear: Ensuring comfort and consistency in design.

• Formal Shoes: Maintaining the sleek and precise appearance required.

• Sports Shoes: Handling diverse materials and designs with ease.

• Children's Footwear: Accommodating smaller sizes with high precision.

The TH-739MA 9 Pincers Computer Memory Control Automatic Cementing Toe Lasting Machine is a fusion of innovation and practicality. Its advanced features, combined with user-friendly operations, make it an indispensable asset for footwear manufacturers aiming for excellence in quality and efficiency.
