MACHINE NAME: 9 PINCERS COMPUTER MEMORY CONTROL AUTOMATIC TOE LASTING MACHINE

MODEL NO: TH-739A

BRAND: TENGHONG

FEATURES

• ^{The rising stop point and the drafting stop point of the newly designed last supporter are adjusted speedily and externally, accompanied by the digitized position indicator, with a precision up to 0.lmm, which is the most accurate repeatability.}

• ^{There are two speed-changing modes to choose when the last supporter is rising, it can improve the efficiency of production. especially for the fragile vamps.}
• ^{The machine can be installed additionally with the auxiliary wiper and automatic cementing mechanism body depending needs.}
• ^{Use the encoder to control the lasting mode, which can greatly shorten the adjustment time compared with the traditional manual adjustment.}
• ^{This machine features shoe memory and storing 100 shoe models.}

TECHNICAL PARAMETER

1. Pincers                   : 9
2. Capacity                 : 2000 pairs/8H
3. Power                     : 3HP
4. Net weight              : 1200kg
5. Oil pressure            : 50kg/cm2
6. Heating Power         : 2kw
7. Oil Filling                : 115 liters
8. Gross weight           : Be provided before shipment.
9. Dimension               : 1750(L)x980(W)x1950mm(H)
10. Packing size            : 1860(L)x1030(W)x2160mm(H)

In today’s competitive and technologically evolving footwear industry, manufacturers must consistently seek equipment that provides higher precision, greater speed, and superior repeatability. The TH-739A 9 Pincers Computer Memory Control Automatic Toe Lasting Machine is designed to fulfill the needs of modern, high-efficiency shoe production lines. With smart memory functions, high-speed adjustment capabilities, and intelligent automation, the TH-739A delivers a significant leap in toe-lasting technology. This machine is the result of rigorous engineering combined with the latest advancements in mechanical automation, pneumatic technology, and computer control. It provides unmatched performance in terms of accuracy, production output, and long-term reliability, making it an indispensable tool for manufacturers who prioritize product quality, process flexibility, and operator efficiency.

Overview of TH-739A Capabilities

The TH-739A is a computer memory control automatic toe-lasting machine with 9 independent pincers, specially designed for precision toe-lasting operations across various shoe types. The machine is capable of memorizing up to 100 shoe models, thereby reducing the setup time between production runs. Its newly designed last supporter features digitally displayed adjustment with up to 0.1mm precision, giving manufacturers consistent and repeatable results with minimum downtime . Additionally, the TH-739A is fitted with dual-speed rising modes, allowing operators to select between two pre-configured speeds based on the type of material or design complexity. This is especially useful when working with fragile vamps or premium shoe materials. For factories with varied production demands, the TH-739A can be equipped with optional modules such as auxiliary wipers and automatic cementing mechanisms, further increasing its versatility.

Key Features and Functional Advantages

Digitally Adjustable Last Supporter

One of the standout innovations of the TH-739A is the digitally adjustable last supporter system. Traditional toe-lasting machines rely heavily on manual adjustments, which are time-consuming and error-prone. The TH-739A introduces a modernized solution with:

• External rapid adjustment system: Easily accessible knobs and sliders allow operators to make fine-tune adjustments without dismantling machine parts.

• Digital position indicators: Show the exact height and drafting point settings in real-time with a repeatability precision of 0.1mm.

• Quick changeover: Ideal for factories switching between multiple shoe styles, reducing setup time and increasing daily output.

Dual Speed Rising Modes

The TH-739A allows the last supporter to rise with two selectable speeds, giving operators flexibility when handling different shoe materials:

• Fast mode: Increases throughput for rugged, high-durability materials like leather.

• Gentle mode: Designed for delicate vamps or finely detailed upper structures to prevent damage and ensure perfect toe formation.

This adaptability enhances the machine's performance across a wide range of shoe categories—from athletic sneakers to premium formal shoes.

Optional Cementing and Wiper Add-Ons

Depending on factory setup and product needs, the TH-739A can be upgraded with:

• Auxiliary wipers: Ensure the material is evenly and tightly wrapped around the last before cementing.

• Automatic cementing mechanism: Applies adhesive consistently and efficiently, reducing operator workload and minimizing waste.

This modularity is ideal for manufacturers looking to customize production lines without investing in entirely new machinery.

Encoder-Controlled Lasting Mode

Traditional mechanical adjustments require time-intensive calibration. The TH-739A leverages an encoder-based control system to automate and accelerate this process:

• Instant configuration change via software settings.

• Eliminates human error from manual adjustments.

• Faster setup for each shoe model.

• Reduced training requirements for operators.

With encoder control, each step of the toe-lasting process can be digitally managed for maximum efficiency.

Shoe Model Memory

Another critical advantage of the TH-739A is its computer memory capacity to store up to 100 unique shoe models:

• Easy program recall for repeat orders.

• Faster transition between different shoe designs.

• Improved consistency in product output.

• Ideal for short-batch production or just-in-time manufacturing environments.

Technical Specifications

>td >Number of Pincers

Operational Workflow

The TH-739A follows a streamlined toe-lasting process that can be optimized for different shoe types:

1. Last Insertion: The shoe last is securely positioned into the machine.

2. Toe Alignment: The toe section of the upper is precisely aligned using adjustable guides.

3. Last Supporter Engagement: Controlled by digital indicators to the desired height and position.

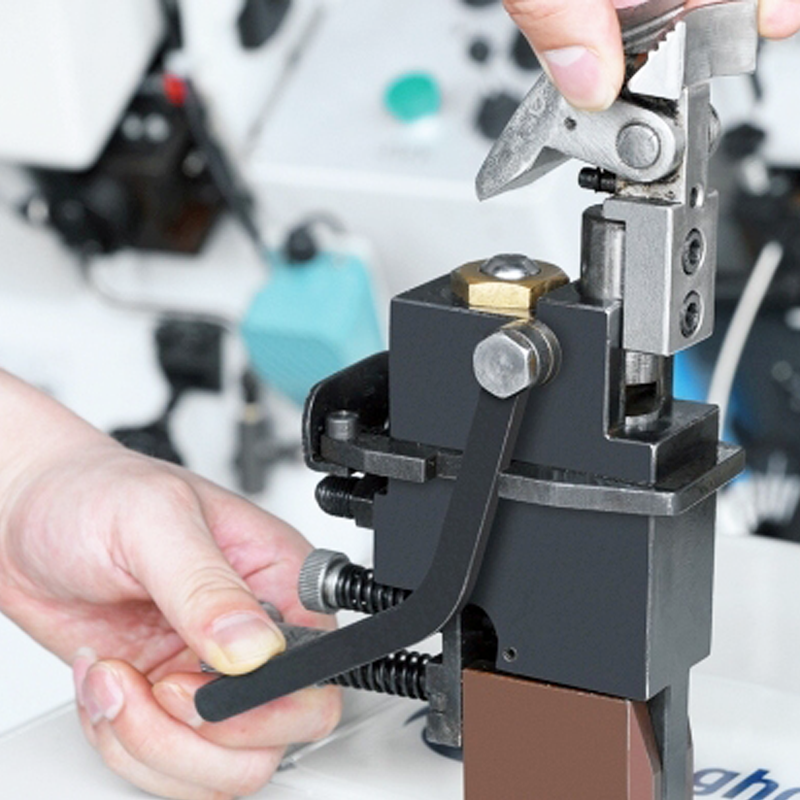

4. Pincer Action: Nine independent pincers grip and shape the upper over the last.

5. Optional Cementing: Adhesive is applied via an automatic cementing system, if installed.

6. Final Lasting and Holding: The toe shape is finalized with controlled pressure and temperature to set the form.

7. Model Storage or Recall: Settings are stored or retrieved for rapid processing of the next pair.

Industry Use Cases

The TH-739A is highly suitable for:

• Mass production footwear factories produce over 2000 pairs per shift.

• High-end footwear brands demand consistency and precision.

• Custom shoe workshops are looking to optimize batch production.

• OEM production facilities catering to varied client designs and specifications.

Its features align with the needs across multiple footwear sectors:

Smart Factory Integration

The TH-739A fits seamlessly into Industry 4.0-enabled smart manufacturing systems. Through the combination of computer memory, sensor integration, and encoder-driven adjustments, the machine supports:

• Remote diagnostics and performance monitoring.

• Integration into MES (Manufacturing Execution Systems).

• Data logging for predictive maintenance and quality control.

• Workstation automation to reduce labor dependency.

These capabilities help reduce human error, enhance traceability, and contribute to zero-defect production goals.

Maintenance and Serviceability

Designed with operator convenience in mind, the TH-739A simplifies maintenance with:

• Easy-access oil filling system (115L capacity).

• Durable construction for high uptime.

• Replaceable heating components.

• Digital system diagnostics for fast troubleshooting.

• Spare parts are compatible with global standards.

Routine maintenance schedules can be automated using the internal memory system, improving machine longevity and operational reliability.

Safety and Ergonomics

The TH-739A complies with modern industrial safety standards. Key features include:

• Emergency stop buttons at critical locations.

• Protective casing around mechanical movements.

• Heat insulation panels protect operators.

• Intuitive HMI interface with real-time status alerts.

• Ergonomic layout to reduce operator fatigue during long shifts.

These elements ensure a safer and more productive work environment.

Environmental Considerations

With a focus on sustainable manufacturing, the TH-739A offers:

• Energy-efficient heating systems (1.75kW rated).

• Reduced adhesive waste with precise cementing application (optional).

• Low oil consumption and closed-loop pressure systems to minimize leaks.

• Noise reduction systems for factory environment compliance.

This results in lower operating costs and a smaller carbon footprint, aligning with global green manufacturing trends.

Competitive Advantages

Compared to other toe lasting machines in its class, the TH-739A provides:

Packaging and Logistics

The machine is shipped securely in high-durability packaging:

• Packed Dimensions: 1860mm (L) x 1030mm (W) x 2160mm (H)

• Net Weight: 1220 kg

• Suitable for containerized sea freight or palletized air cargo.

• Includes installation guide, startup checklist, and optional training modules.

Training and Support

Our commitment to excellence extends beyond manufacturing. Buyers of the TH-739A benefit from:

• Comprehensive User Manual: Detailing operation, calibration, and troubleshooting.

• Onsite Training (Optional): For machine operators and maintenance staff.

• Technical Support: Available through email, phone, and remote video assistance.

• Software Updates: Ensure your machine remains compatible with emerging standards.

The TH-739A 9 Pincers Computer Memory Control Automatic Toe Lasting Machine is a future-ready, precision-built, and efficiency-enhancing solution for modern shoe manufacturers. With digitized controls, intelligent automation, model memory, and optional customization modules, it’s the ideal investment for companies looking to stay competitive in both high-volume and bespoke footwear markets. Whether you are scaling up production, upgrading from legacy machinery, or integrating smart systems into your factory, the TH-739A provides the flexibility, performance, and intelligence your operations demand.
