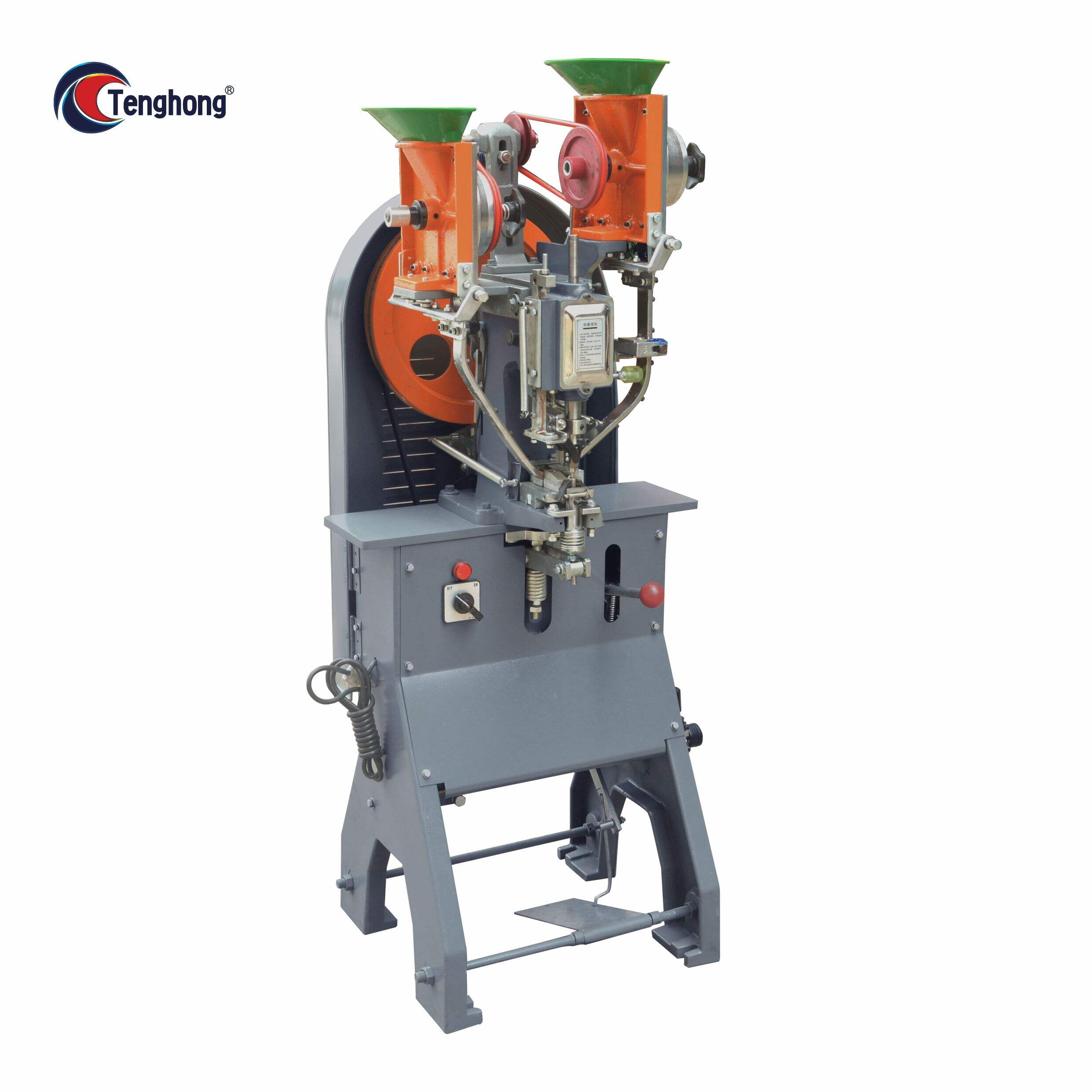

MACHINE NAME: AUTOMATIC RIVETING MACHINE

MODEL NO: TH-727R

BRAND: TENGHONG

FEATURES

• Used for attaching hollow rivets on tags, garments, shoes, belts, handbags, plastic articles, paper materials, etc.

FEATURE

Easy to operate, safe and efficient. Automatic feeding of both rivets and necked washers makes large volume work quicker and safer.

TECHNICAL PARAMETER

1. Snap fastener face diameter      : Φ6-15mm
2. Snap fastener diameter              : Φ3-5mm
3. Snap fastener length                  : 3-12mm
4. Throat depth                             : 130mm
5. Motor                                        : 1/2HP
6.  Dimension                                : 700x530x1500mm
7. N.W.                                         : 160kg


The TH-727R Automatic Riveting Machine is a state-of-the-art solution designed to automate and optimize the process of attaching hollow rivets onto a diverse range of materials and products. Engineered for precision, efficiency, and safety, this machine offers manufacturers in the garment, footwear, leather goods, plastic, and paper industries an advanced tool to boost productivity, ensure consistent quality, and reduce labor intensity. This detailed product description explores every facet of the TH-727R, from its versatile applications and user-friendly features to its technical specifications and operational advantages. Whether you are considering integration into your production line or seeking a comprehensive understanding of automated riveting solutions, this overview provides all the insights needed to appreciate the machine’s capabilities and strategic value.

Applications

The TH-727R Automatic Riveting Machine is specifically developed to cater to industries where hollow rivets are used as functional or decorative fasteners. Its adaptability allows it to handle a broad spectrum of products and materials, ensuring reliable riveting with minimal manual intervention.

Garments and Apparel

Rivets are an essential component in many types of garments, especially denim jeans, jackets, and other fashion apparel, where they provide reinforcement at stress points and add aesthetic appeal. The TH-727R automates this process, producing consistent, high-quality rivet attachments with excellent speed, significantly improving garment manufacturing efficiency.

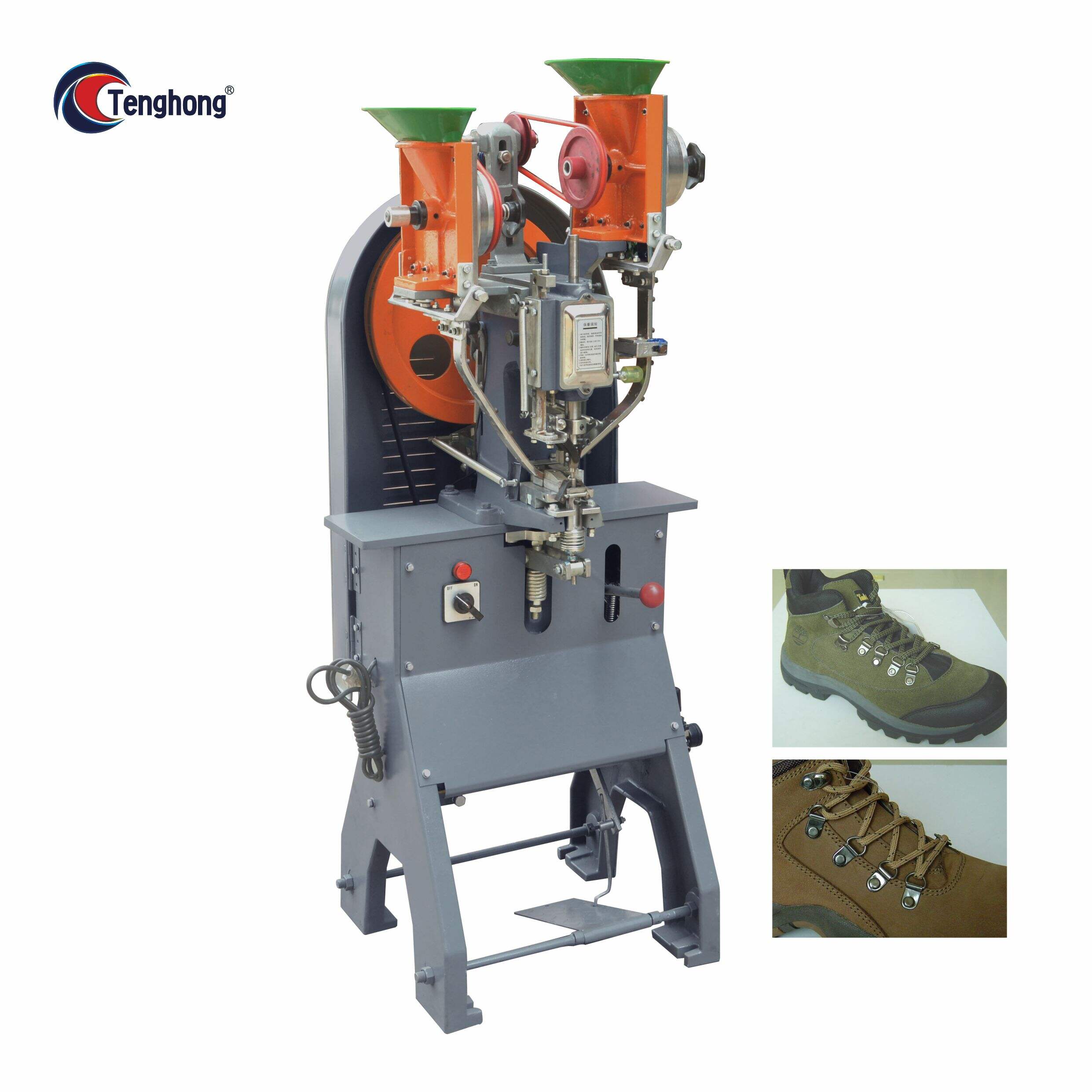

Footwear Manufacturing

Shoes often require rivets for both reinforcement and decoration, particularly in uppers, straps, and certain sole constructions. The machine’s precise riveting capabilities ensure secure fastening, improving durability and the overall finish of the footwear products.

Leather Goods

Leather belts, handbags, wallets, and accessories frequently utilize hollow rivets for structural integrity and decorative effects. The TH-727R can handle varying rivet sizes and lengths, making it ideal for leather product manufacturers aiming to maintain high craftsmanship standards while speeding up production.

Plastic Articles

In plastic manufacturing, rivets are used to join parts or attach additional elements. The TH-727R’s controlled riveting pressure prevents damage to delicate plastic components while ensuring firm attachment, making it suitable for a range of plastic goods.

Paper Materials and Tags

Tags, labels, and paper-based packaging often use hollow rivets for attachment. This machine supports precise riveting on these lighter materials without causing tearing or deformation, thereby improving product presentation and durability.

Other Materials and Products

The versatility of the TH-727R allows its use on various other materials and products requiring hollow rivet fastening, including accessories, promotional items, and small plastic or paper components.

Key Features

The TH-727R Automatic Riveting Machine boasts numerous features that distinguish it in the automated riveting equipment market, focusing on efficiency, safety, and ease of use.

User-Friendly Operation

Designed with the operator in mind, the machine offers an intuitive interface and straightforward controls. Minimal training is needed, enabling fast integration into production environments and quick operator proficiency.

Enhanced Safety

Safety features are incorporated to protect operators during machine operation. Protective guards, emergency stop mechanisms, and carefully designed workflows minimize the risk of injury, making it a reliable choice for busy manufacturing floors.

High-Speed Automated Feeding

One of the machine’s standout features is the automatic feeding of both rivets and necked washers. This system drastically reduces manual loading times, allowing for rapid, continuous operation suited for large volume production without frequent interruptions.

Consistent and Reliable Riveting

The TH-727R applies controlled riveting force to ensure uniform fastening, essential for maintaining the structural integrity and aesthetic quality of finished products. The precision reduces defects and improves overall product reliability.

Versatility in Rivet Handling

The machine supports a broad range of snap fastener face diameters (Φ6-15 mm), snap fastener diameters (Φ3-5 mm), and lengths (3-12 mm). This wide range makes it adaptable to various product requirements and manufacturing specifications.

Adjustable Throat Depth

With a throat depth of 130 mm, the machine can accommodate thicker or larger workpieces, enhancing its usability across different product types and sizes.

Robust Motor Power

Equipped with a 1/2 HP motor, the TH-727R balances power and efficiency to maintain smooth, consistent operation without excessive energy consumption.

Compact and Durable Design

Its dimensions (700 mm length × 530 mm width × 1500 mm height) and solid build (160 kg net weight, 220 kg gross weight) provide a stable, space-saving solution for factory floors, combining portability with durability.

Technical Parameters and Specifications

Understanding the technical parameters of the TH-727R Automatic Riveting Machine is crucial for planning its integration and maximizing its use:

• Snap Fastener Face Diameter: Φ6-15 mm — accommodating a wide range of rivet sizes suitable for various applications.

• Snap Fastener Diameter: Φ3-5 mm — versatile for different rivet thicknesses and product requirements.

• Snap Fastener Length: 3-12 mm — capable of handling various material thicknesses and rivet lengths.

• Throat Depth: 130 mm — allows riveting on thicker or larger items.

• Motor: 1/2 HP — provides consistent power for reliable operation.

• Dimensions: 700 mm (length) × 530 mm (width) × 1500 mm (height) — compact footprint for easy placement on the production floor.

• Net Weight: 160 kg — manageable for installation and maintenance.

• Gross Weight: 220 kg — reflecting robust construction for stable operation.

Operational Workflow

The TH-727R’s operational process is designed for efficiency, safety, and consistent output quality, comprising several key stages:

Preparation and Setup

Operators begin by loading the materials (garments, leather, plastics, paper, etc.) into the machine’s throat area. The adjustable throat depth accommodates different product thicknesses and sizes. Rivets and washers are loaded into their respective automatic feeders.

Automatic Feeding

The machine’s feeders automatically supply rivets and necked washers to the riveting area in a timed and synchronized manner, ensuring continuous operation without manual loading delays.

Riveting Cycle

Once the workpiece and rivet are positioned, the riveting mechanism engages, applying precise force to securely fasten the rivet to the material. The cycle is quick and consistent, maintaining uniform quality across batches.

Completion and Reset

Upon completion of each riveting operation, the machine resets itself automatically, preparing for the next cycle. This seamless transition maximizes throughput and minimizes idle time.

Benefits and Advantages

The TH-727R Automatic Riveting Machine delivers significant benefits, contributing to improved production outcomes and cost savings:

Enhanced Production Efficiency

Automation of rivet and washer feeding dramatically increases output rates compared to manual riveting. The high-speed operation and quick cycle times support large volume manufacturing.

Superior Product Quality

Consistent riveting force ensures uniform fastener attachment, reducing defects and enhancing the durability and appearance of finished goods.

Labor Cost Reduction

By automating the feeding and riveting process, the machine minimizes the need for skilled manual labor, reducing labor costs and lowering the risk of human error.

Operational Safety

Integrated safety features protect operators, reducing accident rates and downtime related to workplace injuries.

Versatility and Adaptability

The wide range of rivet sizes and materials the machine can handle makes it a versatile asset for manufacturers producing diverse product lines.

Maintenance Simplicity

Designed with maintenance in mind, the machine allows easy access to key components, enabling quick troubleshooting and routine upkeep.

Industry Applications in Depth

Garment Manufacturing

In the fast-paced garment industry, where durability and style are crucial, the TH-727R ensures that rivets are applied quickly and accurately, reinforcing seams and enhancing the aesthetic of jeans, jackets, and other apparel. Its automatic feeding system eliminates manual loading delays, allowing manufacturers to meet tight production deadlines.

Footwear Industry

Shoemakers rely on rivets to secure straps, reinforce uppers, and add decorative elements. The TH-727R’s ability to handle various rivet sizes and lengths enables it to meet the diverse needs of shoe production, improving throughput without compromising quality.

Leather Goods

Leather products require precision and strength in rivet attachment. The machine’s adjustable throat depth and rivet size versatility make it ideal for attaching rivets to thick leather belts, handbags, and wallets, ensuring long-lasting product quality.

Plastic Components

In plastic manufacturing, where rivet application must avoid deformation or damage, the TH-727R provides controlled riveting pressure, maintaining product integrity while delivering firm, reliable fastenings.

Paper and Packaging

Tags and labels often need secure attachment to products for branding and information. The machine’s gentle but precise riveting supports these lightweight materials without damage, improving product presentation.

Installation Guidelines

Proper installation is vital for optimal machine performance:

• Space Requirements: Allocate sufficient space to accommodate the machine’s dimensions and provide easy access for operation and maintenance.

• Power Supply: Connect to a stable 220V power source with appropriate grounding to ensure safety and consistent motor performance.

• Level Surface: Place the machine on a stable, level surface to prevent vibration and ensure accurate riveting.

• Operator Station: Ensure the operator has easy access to the control panel and safety switches for efficient and safe use.

Operator Training and Safety Protocols

Training

Operators require only brief training to become proficient with the TH-727R, focusing on loading materials, starting and stopping the machine, and performing basic troubleshooting.

Safety

• Always use the provided protective guards.

• Familiarize operators with emergency stop functions.

• Keep hands clear of moving parts during operation.

• Regularly inspect safety components for wear or damage.

Maintenance and Longevity

Regular maintenance extends the machine’s operational life and preserves performance:

• Lubrication: Periodically lubricate moving parts as recommended by the manufacturer.

• Feeder Checks: Inspect rivet and washer feeders for jams or wear to prevent production stoppages.

• Motor Inspection: Monitor motor operation and electrical connections to avoid unexpected failures.

• Cleaning: Keep the machine clean and free from debris to maintain smooth functioning.

The TH-727R Automatic Riveting Machine is a highly efficient, versatile, and safe solution for automated hollow rivet attachment across multiple industries. Its advanced automatic feeding system, wide rivet size compatibility, and user-friendly design make it an essential asset for manufacturers seeking to increase productivity, improve product quality, and reduce labor costs. Whether in garment production, footwear manufacturing, leather goods assembly, or plastic and paper processing, the TH-727R adapts seamlessly to diverse applications, offering consistent, high-speed riveting with minimal operator effort. Investing in the TH-727R means securing a reliable, durable, and efficient riveting solution capable of meeting modern manufacturing demands and supporting sustained business growth.
