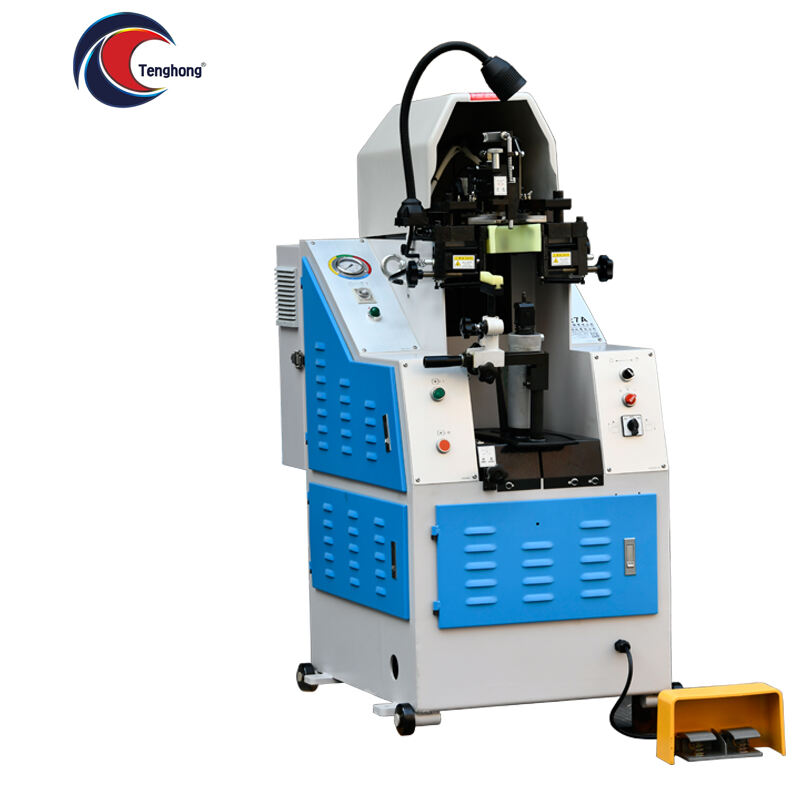

Side Lasting Machine TH-727A

The TH-727A Side Lasting Machine is a state-of-the-art industrial footwear manufacturing solution, specifically engineered for the side-lasting process. It plays a critical role in ensuring that the upper material of a shoe is tightly and smoothly wrapped around the last, enhancing the shoe’s form, structure, and durability. This machine is designed to meet modern production demands, offering exceptional speed, precision, flexibility, and ease of use across a wide range of shoe types and materials. Combining mechanical innovation with ergonomic design, the TH-727A is ideal for large-scale shoe factories, custom footwear workshops, and facilities focused on both high-end and mass-market shoe production. It ensures flawless, lasting results for sneakers, leather shoes, safety boots, casual footwear, and more.

Precision Side Lasting for a Flawless Fit

The side lasting process is a critical stage in shoe production where the upper material is stretched and lasted tightly over the sides of the last, conforming to the desired shape of the shoe. The TH-727A Side Lasting Machine is engineered to perform this task with extreme precision, ensuring uniform pull strength and a wrinkle-free finish. Using a specialized pincer system and powerful side pressing mechanism, the machine grips the upper securely and stretches it consistently around the contours of the last. This eliminates air pockets, reduces folding, and improves overall shoe aesthetics and structural quality. With adjustable tension control and intelligent positioning, the TH-727A accommodates various upper materials, including soft leathers, synthetic textiles, mesh, suede, and multilayer composites, ensuring uniform results regardless of material type or thickness.

High-Performance Pincer Mechanism

At the heart of the TH-727A is its advanced pincer mechanism, designed to handle multiple points of tension during the side-lasting process. This system consists of multiple (typically 9 or more) independently controlled pincers that work in unison or sequence to grip, pull, and position the upper along the last. Each pincer is designed for fine control, allowing for customized grip strength and angle adjustments to suit different shoe sizes, designs, and material properties. The result is a perfectly stretched upper that conforms to the last with no manual intervention, saving time and eliminating inconsistencies. This pincer mechanism contributes significantly to overall machine efficiency and quality, making the TH-727A indispensable for modern, high-volume production environments.

Servo-Driven Operation for Accuracy and Efficiency

The TH-727A incorporates a servo-driven control system, delivering exceptional accuracy in movement, pressure, and timing. Unlike traditional mechanical systems, servo motors allow the machine to adapt dynamically to varying production needs without sacrificing performance or speed. This servo system powers key elements such as the pincer arms, pressing mechanisms, and adhesive control (where applicable), ensuring smooth operation and consistent output. It reduces mechanical wear and provides finer control over process variables like side tension, lasting angle, and pressing duration. This level of precision is particularly important when producing complex shoe designs or working with sensitive materials that require careful handling.

Time-Saving and High-Productivity Design

Designed with speed in mind, the TH-727A features an optimized workflow that reduces cycle times and increases daily output. The automatic adjustment capabilities and programmable shoe memory functions allow operators to switch between different shoe types quickly, minimizing downtime and boosting production capacity. With a productivity potential of over 1000–1400 pairs in an 8-hour shift (depending on shoe design and operator proficiency), the TH-727A is an excellent solution for businesses seeking to scale up production without sacrificing quality. Quick setup functions, smart calibration, and programmable operations allow the operator to move from one shoe size or model to another with minimal readjustment, significantly enhancing workflow efficiency.

Intelligent Shoe Model Memory System

The TH-727A is equipped with an intelligent memory system capable of storing multiple shoe models and lasting configurations. This feature allows operators to preprogram settings for specific shoe styles, including pincer tension, pressing force, lasting time, and alignment preferences. These settings can be retrieved instantly, allowing fast changeovers between different production runs. This is particularly beneficial in environments that handle multiple styles or cater to custom orders. The ability to recall specific settings for each model enhances production repeatability and consistency, resulting in fewer defects and better quality control.

Strong Side Pressing for Secure Lasting

In addition to its high-precision pincers, the TH-727A includes a powerful side pressing mechanism that ensures firm and even contact between the upper and the midsole or insole. This side pressing system eliminates gaps, strengthens the bond, and contributes to the ergonomic shape of the final product. The pressing mechanism is adjustable, allowing for fine control of pressure levels according to the type and thickness of materials used. Whether working on soft athletic shoes or firm safety footwear, the machine can apply just the right amount of force to ensure lasting integrity. The pressing elements are also designed with wear-resistant materials and cushioned pads to avoid marking or damaging delicate upper surfaces during compression.

Versatile Compatibility Across Footwear Types

The TH-727A is compatible with a broad range of footwear styles, making it a versatile choice for manufacturers with diverse product lines. From men’s and women’s formal shoes to children’s sneakers and rugged industrial boots, the machine can accommodate various shapes and sizes. The adjustable last supports and pincer reach ensure that shoes with narrow toes, wide forefeet, or uniquely contoured shapes can be lasted without difficulty. This makes the TH-727A a valuable asset for companies targeting niche markets, including orthopedic footwear, fashion-forward designs, and limited-edition collections.

Intuitive Operator Interface

The TH-727A is equipped with an easy-to-use control panel, featuring a touchscreen interface or dial controls, depending on the model configuration. Operators can easily adjust machine settings, monitor operational status, and access saved shoe profiles with minimal training. This user-friendly interface supports multiple languages and includes helpful indicators for machine diagnostics, maintenance schedules, and system alerts. By simplifying machine operation, the TH-727A ensures that even newer workers can operate the machine effectively, reducing dependency on highly trained technicians. The smart interface also helps reduce setup errors and provides visual confirmation of machine settings before each operation cycle begins.

Industrial Build Quality and Longevity

Built with a reinforced steel frame and high-grade components, the TH-727A is engineered for long-term reliability in high-volume production environments. The machine’s structural integrity minimizes vibration and deflection during operation, maintaining consistent pressure and alignment throughout each cycle. The internal systems are designed for low maintenance, with durable bearings, automatic lubrication paths, and wear-resistant contact points. This construction ensures years of dependable service with minimal servicing required. Even in demanding environments with long operational hours and heavy loads, the TH-727A remains stable, safe, and efficient, making it a true workhorse in any shoe production line.

Safety Features for Operator Protection

The TH-727A includes comprehensive safety features to protect the operator and ensure worry-free operation. Safety guards over the pincer and pressing mechanisms, emergency stop buttons, and overload protection systems are standard in its design. The machine also includes sensor-based detection for material presence, alignment accuracy, and component positioning, preventing accidental operations and mechanical faults. In the event of any operational irregularity, the system halts automatically and provides an alert, allowing the operator to resolve issues safely. These safety systems comply with international industrial machinery safety standards and are designed to reduce workplace accidents and machine damage.

Integrated Adhesive Application (Optional Feature)

Depending on production needs, the TH-727A can be equipped with an optional adhesive application system to streamline the lasting process. This module includes a precise adhesive nozzle, servo-controlled flow rate, and heating elements to ensure proper glue application and bonding. By integrating adhesive application with side lasting, manufacturers can reduce the number of workstations and eliminate manual gluing steps. The adhesive delivery system ensures uniform coverage without overflows or drips, improving product appearance and reducing waste. This integration significantly contributes to cost savings, process simplification, and consistent bonding quality.

Environmentally Friendly and Energy-Efficient Operation

The TH-727A is designed for energy efficiency, using servo motors and optimized pneumatic systems that consume less power than traditional mechanical designs. It also features reduced compressed air usage and intelligent operation cycles that minimize energy use during idle periods. Its efficient operation helps factories reduce their energy footprint and meet sustainability goals without compromising productivity. Additionally, the machine is manufactured using eco-conscious processes and materials that support long-term environmental responsibility.

Key Benefits at a Glance

• Precision Lasting: Perfectly wraps the upper to the last with no wrinkles or gaps.

• Time Efficiency: Quick setup and rapid cycle time for high-volume output.

• Advanced Servo System: Improves motion control, accuracy, and energy savings.

• Custom Shoe Memory: Saves and recalls parameters for various shoe types.

• Smart Pressing: Uniform side pressing ensures strong bonds and sleek shapes.

• Material Versatility: Works with soft leather, synthetic textiles, suede, and more.

• Ergonomic Design: Intuitive controls and a comfortable working height reduce operator fatigue.

• Durability: Built with high-strength materials for long-term factory use.

• Safety Assured: Equipped with multiple protections and fault alerts.

• Optional Glue System: Seamless integration of adhesive application for streamlined processing.

The TH-727A Side Lasting Machine stands at the forefront of modern shoemaking automation. By offering precise side side-lasting, intuitive operation, flexible compatibility, and strong productivity features, it empowers manufacturers to produce premium-quality shoes at scale. The intelligent design integrates precision mechanics with digital convenience, helping factories reduce labor costs, increase throughput, and deliver perfect shoes with every cycle. From large production plants to specialty workshops, the TH-727A provides the adaptability, durability, and innovation required for today’s competitive footwear market. For businesses seeking lasting perfection, reliable performance, and a powerful edge in lasting automation, this machine is the ultimate choice.
