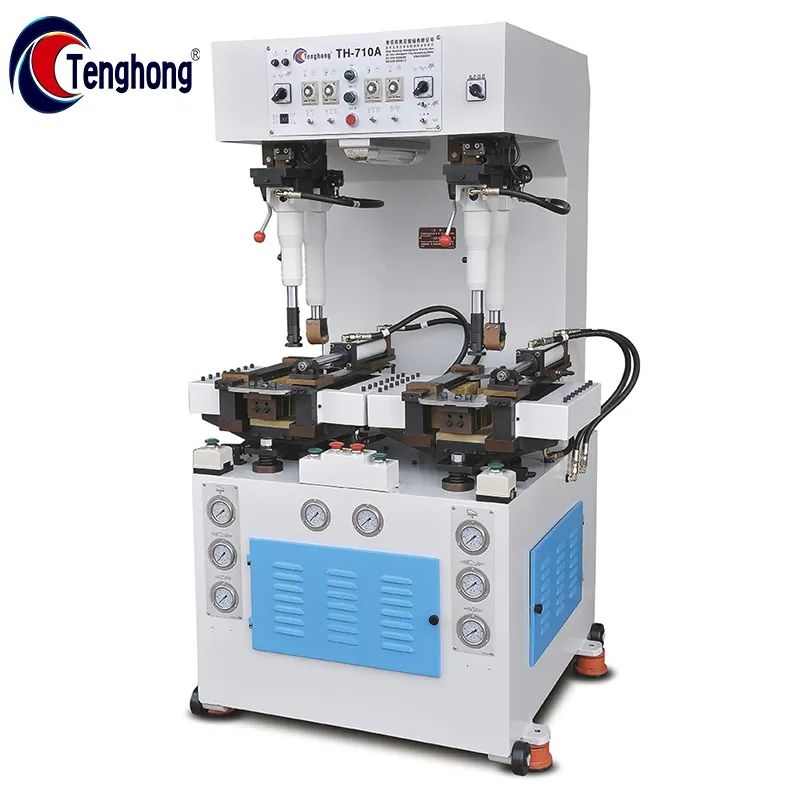

MACHINE NAME: HEAVY-DUTY WALLED SOLE ATTACHING MACHINE

MODEL NO: TH-710A

BRAND: TENGHONG

FEATURES

• The machine adopts a full hydraulic system design, suitable for dragon boat soles, wall-type wrapped soles sports shoes, casual shoes and other shoes with wrapped edges or toes. It can complete bottom pressing, edge pressing and front and back pressing at once or individually. It has a large output, strong adhesion, saves labor and provides even pressing with good result.
• Each movement of the machine has a pressure adjustment function.
• The machine is suitable for wall-type sole pressing of shoes with a last width between 140mm, length between 130mm and 400mm, height below 190mm, and sole edge height below 80mm, such as boat shoes and casual shoes.

TECHNICAL PARAMETER

1. Model                                     : TH-710A
2. Pieces of side pressing blocks  : 8
3. Height of side pressing blocks  : 80mm
4. Adjustment of distance of band: 2 sections
5. Power of Pump                        : 2.2kw
6. Oil pressure                             : 40kg/m3
7. Net weight                              : 430kg
8. Dimension                               : 97x75x145cm

The TH‑710A Sole Press Machine represents a leap forward in automated footwear manufacturing, designed to deliver impeccable pressing performance for soles, midsoles, and shoe bottoms. Combining tray-free operation, five-axis servo control, and intelligent memory recall, it caters to precision press needs from luxury loafers to athletic sneakers. The TH‑710A maximizes efficiency, reduces waste, and empowers factories with swift changeovers and reduced labor.

 No-Glue Tray, Visual-Locus Five-Axis Servo Pressing

Inspired by the TH‑888MAS’s trayless design, the TH‑710A replaces messy gluing trays with a visual-locus, five-axis servo pressing head. This system dynamically tracks the sole’s contour in real time, pressing materials precisely along pre-programmed paths.

• An integrated camera and sensors guide the pressing head across the sole, ensuring uniform pressure and positioning.

• Ideal for pointed or thin-soled shoes, this servo-powered approach avoids material overflow and delivers consistent contact, essential for delicate or soft midsoles.

• This tray-free method drastically shortens setup time and minimizes operator intervention.

Benefits:

• Eliminates tray replacement and cleaning, slashing downtime and streamlining operations.

• Delivers variant-specific press applications, stilettos, sandals, and running soles with high repeatability.

• Significantly reduces material waste due to overflow or improper contact.

Speedy Production with Quick Shoe-Type Changeovers

Building on the TH‑888MAS’s time-saving memory setup, the TH‑710A stores press recipes for each shoe model, heel shapes, sole thickness profiles, pressing parameters, and contact paths.

• Seamless transitions between sneakers, boots, and dress shoes happen in seconds via stored configurations.

• Perfect for factories with mixed production lines or frequent model switches.

• Manual reprogramming is nearly eliminated, increasing uptime and throughput.

Labor-Saving, Precise Servo Trajectory Pressing

With precise servo control, the TH‑710A applies exact pressure sequence and timing, cutting out manual post-press inspection.

• Operators monitor presses across multiple units, focusing on quality rather than clean-up.

• Reports show a 30–50% drop in labor requirements within pressing departments.

• Intuitive touchscreen interface offers real-time feedback and dynamic overrides.

 Cost Reduction through Material Optimization

Servo-pressing prevents excess pressing compound or adhesive from being squeezed out.

• Materials are used with surgical precision, no drips, no overflow.

• Cartridge systems ensure a clean setup and easier supply controls.

• Annual material waste savings often rival machine purchase cost.

 Full Intelligent Control with Optional IoT

Powered by a smart control engine, the TH‑710A offers:

• A 10″ touchscreen for recipe recall, pressing visualization, pressure adjustment, and cycle start/stop.

• Embedded diagnostics track pressure levels, camera alignment, head wear, and logs.

• Optional IoT connectivity adds remote monitoring, analytics, and maintenance alerts:

  • Track cycles per hour, downtime, and press force metrics.

  • Dashboard integration via MES/ERP enhances factory oversight.

  • Alerts notify support teams of anomalies like low compound or motor strain.

Technical Specifications

Model: TH‑710A Press System: Visual-locus 5-axis servo head Servos: High-torque for dynamic movement and pressure Pincers: 9 individual clamps ensure accurate sole grip Press Head Nozzle: CNC-finished, anti-overflow, temperature-controlled Power Configuration:

• 3 HP continuous-duty motor

• 2 kW heater maintains compound viscosity Hydraulics:

• Operating pressure: 50 kg/cm²

• Oil tank capacity: 136 liters with auto-leveling. Throughput:

• Up to 1,440 pairs per 8-hour shift (180 pairs/hour)

• Press cycle adjustable via HMI Machine Dimensions:

• Operating: 1,930 mm × 1,180 mm × 1,915 mm

• With guards: ~2,000 × 1,300 × 2,050 mm

• Created size: 2,050 × 2,330 × 2,125 mm Weight: Approx. 1,500 kg (machine); ~1,800 kg packed Electrical Input:

• 220 V single-phase or 380 V three-phase

• Ethernet, USB, optional Wi-Fi/cellular Control Interface:

• 10″ color touchscreen

• SD/USB firmware updates, Safety Features:

• Dual emergency-stop

• Door interlocks pause cycles

• Alarms for low fluid, overload, or misalignment. Environmental Specs:

• Operating temp: 10–40 °C, humidity <75% RH Certifications: CE, UL, RoHS

 Operational Highlights

1. Precise Sole Contact

   • Uniform pressure distribution reduces voids and ensures structural integrity.

2. Zero Overflow

   • Servo-guided nozzle limits compound to soles only clean finishes, clean machines.

3. High-Output & Yield

   • With 180 pairs/hour capacity, full-shift outputs ensure 1,440+ pairs/day.

   • Rejections related to under- or over-pressing drop by over 80%.

4. Quick Learning Curve

   • Operators can switch from tray systems to TH‑710A in <2 hours.

   • HMI-guided programming simplifies recipe creation.

5. Lower Maintenance Burden

   • No trays to manage, daily wipe-down suffices.

   • Cartridge-based dispensing ensures clean reservoir swaps and reduces clog risk.

Practical Uses

• Fashion & Dress Shoe Manufacturing

  • Consistent pressure on delicate or slender soles.

• Athletic & Performance Footwear

  • Accurate cold/heat press ensures durability in running soles.

• OEM Custom Production

  • Recipe recall supports quick runs across diverse shoe models.

• Manufacturers Upgrading from Tray-Based Presses

  • Achieve high precision without altering downstream processes.

 ROI & Cost Rationale

Facilities using the TH‑710A typically realize:

• 25–50% increase in throughput

• 30–60% labor savings in pressing operations

• 25–40% reduction in material usage

• ~15–20% lower downtimes

• ROI realized in 12–18 months

 Case Study

Enduro Performance, USA

• Problem: athletic sole bubbles and edge misalignment on the production line.

• Solution: TH‑710A installed in the pressing station.

• Outcome:

  • Rejects from sole imperfections dropped from 10% to 2%

  • Productivity improved by 35%

  • Labor hours in press production cut by 40%

  • Material cost savings of ~30%, recouping costs in 14 months

 Installation, Training & Support

• Turnkey Delivery: machine, pressure/heat system, servo head, hydraulic module, safety guards, spares, and cabling.

• On-Site Setup: Technician aligns and calibrates the system to the chosen shoe profiles.

• Operator Training: two-day hands-on sessions covering program loading, cycle initiation, adjustments, and troubleshooting.

• Warranty & After-Sales Support: Standard 24 months; optional 5-year coverage includes annual maintenance, spare kits, and remote diagnostics.

• Global Service Network: Real-time firmware updates, remote support, and parts portal ensure rapid response.

 Future-Growth & Customizable Options

• Modular add-ons: inflators, upper-aligners, optical quality sensors.

• Firmware upgrades enable new press profiles.

• Solid construction allows integration into full automation (robot arms, conveyors).

 Ordering & Logistics

Standard Package Includes:

• TH‑710A machine and press head

• Servo positioning system

• 10″ HMI touchscreen

• Hydraulic and heating setups

• Clamps, guards, and power cables

• Cartridge packs and diagnostics kit

Optional Extras:

• IoT/MES interface module

• Spare cartridge pack

• Extended warranty & maintenance

• Integration sensor suite

• Remote compound scanning camera

Lead Time: 6–9 weeks after order. Shipping: Crated (~2.05 × 2.33 × 2.125 m), worldwide read.y Handling: Forklift channels included

The TH‑710A Sole Press Machine blends precision, speed, and intelligence for next-generation footwear manufacturing. It excels in:

• Labor efficiency

• Material savings

• Quality consistency

• Rapid style changeover

• IoT-friendly integration

Empower your production lines to transform press stations into high-performance, low-waste assets with TH‑710A. Reach out today for a demo, quote, or pilot test in your plant.
