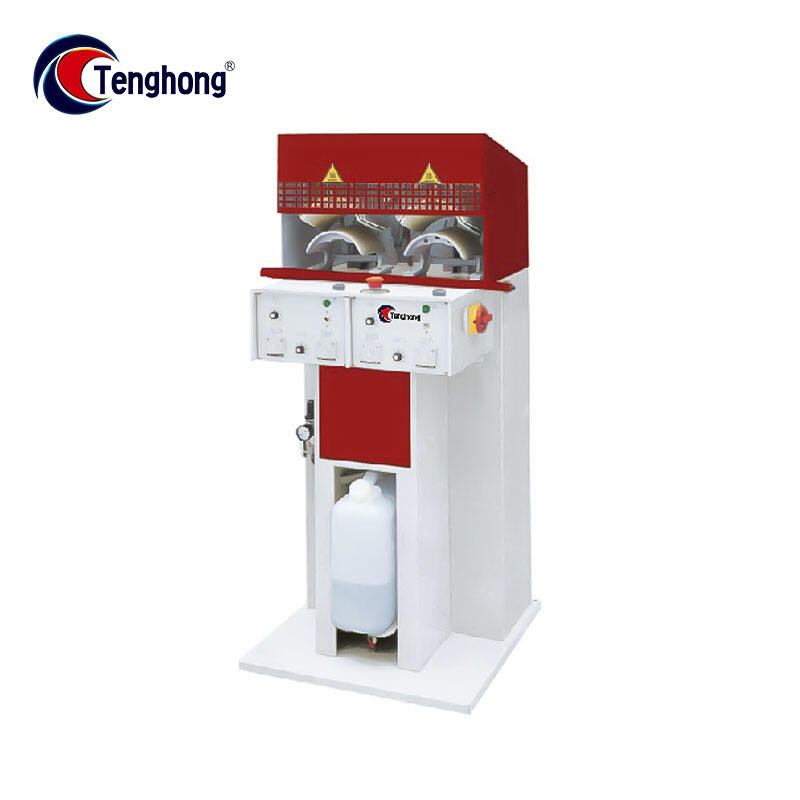

Toe Upper Steaming Machine TH-503

The TH‑503 Toe‑Steming Machine redefines precision, efficiency, and flexibility in modern shoemaking. Engineered to streamline toe‑lasting operations, this next‑generation machine is perfect for pointed-toe women’s footwear, delicate midsoles, and ultra-thin sole constructions. By delivering consistent, clean, and flawless toe shaping with minimal waste and maximum speed, the TH‑503 empowers factories to boost production, cut labor needs, reduce material usage, and elevate final product quality.

Key Features & Advantages

Glue‑Tray‑Free, 5‑Axis Servo Controlled Adhesive Delivery

• The TH‑503 eliminates traditional glue trays. Instead, it integrates a sophisticated visual‑locus, five‑axis servo system that guides a precision adhesive pen along programmable trajectories.

• This advanced adhesive path replicates hand-made techniques, ensuring optimal glue coverage, yet with machine-grade consistency and speed.

• Targeted for pointed-toe designs and ultra-slim midsoles, the nozzle’s geometry and movement reduce adhesive buildup and overflow, eliminating messy glue beads and unsightly seams.

• The servo‑driven pen also allows straight or curved gluing configurations, making it suitable for a wide variety of shoe types—from stilettos to ballet flats.

 Benefits:

• No more tray changes or turnovers, a simple adhesive cartridge swap is all it takes to begin a new job.

• Time saved on cleanup, reduced interruptions, and a smoother production shift contribute to significant uptime gains.

• Waste minimized, no excess adhesive pools or crusted drip areas means every drop counts.

Rapid Shoe‑Type Changeovers / Quick Production Adaptability

• With built-in memory settings, the TH‑503 archives a library of toe‑lasting patterns, pressure profiles, nozzle positions, and movement speeds for each shoe model.

• Operators can recall saved configurations and switch from stilettos to wingtips or any other style in seconds.

• This eliminates the traditional downtime spent adjusting machines or making manual modifications.

• Ideal for batch production and just-in-time workflows, it enables greater flexibility and responsiveness to changing orders or small-batch runs.

Reduced Labor & Enhanced Production Efficiency

• The TH‑503 is designed to automate what was once manual, repetitive work. Precise servo control and visual tracking significantly lower the need for manual touch-ups.

• Previously, laborers had to inspect for glue drips, sands, and re-glue irregularities. Now, one operator can oversee multiple machines, focused on quality assurance, not glue removal.

• Typical factories see 30–50% labor cost reductions in toe‑lasting departments with this shift.

• Operators appreciate the user-friendly touchscreen interface, intuitive on-screen prompts, and automated diagnostics, reducing retraining needs.

Cost Savings from Adhesive Optimization

• Servo-based glue application leads to zero-skid paths, precise zone glue-up, and minimal adhesive smear.

• By preventing over-application and drip-related waste, the TH‑503 helps shoe factories save thousands annually on glue consumption.

• Additionally, cleaner operations mean less maintenance on glue-mop areas, reducing downtime and repair costs.

Fully Intelligent Operation & Optional IoT Integration

• At the core of TH‑503 is an intelligent control system:

  • Touchscreen HMI lets operators browse saved shoe programs, view visual trajectories, edit settings, and start/stop cycles.

  • Self-diagnostics walk through sensor health checks, low-glue alerts, nozzle alignment prompts, and error-logging history.

  • Production Monitoring displays real-time cycle counts, outputs per hour, and estimated parts-per-hour rates.

• Optional IoT module upgrades enable remote data tracking via local network or cloud:

  • Monitor usage patterns, downtime metrics, urgency signals for maintenance, glue consumption logs, and uptime analytics.

  • Connect to your factory’s manufacturing execution system (MES) to align to lasting outputs with upstream/downstream processes.

  • Generate email alerts for material depletion or machine faults, promptly notifying maintenance teams.

STL: Technical Specifications

• Model: TH‑503

• Gluer Control System: Visual-locus guided, 5-axis servo

• Actuators: High-performance servo motors for precise positioning

• Equivalent Pincers: 9 digital presser heads ensuring consistent toe grip

• Glue Path Planning: Customizable curves, diameters, line types via program

• Power Source:

  • Main Motor: 3 HP industrial-grade motor

  • Heater: 2 kW element to maintain adhesive at optimal viscosity

• Hydraulics:

  • Operating Pressure: 50 kg/cm²

  • Oil Reservoir: 136 L

  • Automatic low-oil alarm

• Performance:

  • Rated Output: Up to 1,440 pairs per 8‑hour shift (continuous operation)

  • Optimal cycle times are adjustable based on shoe shape/material

• Machine Dimensions:

  • Operating Size: 1,930 mm L × 1,180 mm W × 1,915 mm H

  • With Standard Safety Guard: 2,000 × 1,300 × 2,050 mm (approx.)

• Shipping (Crated): 2,050 × 2,330 × 2,125 mm

• Weight: ~1,500 kg (machine only; crate adds 20%)

• Inputs / Connectivity:

  • Single-phase 220 V or 380 V industrial supply

  • Ethernet & optional Wi‑Fi / cellular IoT

  • Digital I/O for factory integration

• Control Interface:

  • 10″ color touchscreen with virtual keyboard

  • USB & SD card uploads for software/firmware updates

• Safety Systems:

  • Emergency‑stop buttons front and back

  • Interlock guards with auto‑pause

  • Audible & visual alarms for low‑fluid or jam detections

• Environmental Conditions:

  • Operating Temp: 10–40 °C; Humidity: <75% non‑condensing

• Compliance:

  • CE / UL electrical standards

  • RoHS compliant

  • (Optional) ISO 9001 facility-verified build

 Performance & Operational Highlights

1. Perfect Toe Symmetry

   • Each pointed-toe shoe receives accurately shaped, equally tensioned glue lines, delivering upscale fit, appearance, and craftsmanship.

   • Ideal for thin uppers satin, leather, and microfiber, where glue pull-through is hard to correct.

2. Ultra-Slim, Clean MLTlining

   • With precise glue placement and instant consumption, no glue sits on the mold or midsole edges, avoiding buildup.

   • Ideal for modern “featherweight” sole constructions used in high-end or flexible footwear.

3. High Yield & Quality

   • At 180 pairs/hour peak, the TH‑503 allows approximately 1,440 pairs per shift, clocking full-run output with minimal breaks.

   • Eliminates rejections from under-gluing or over-sloping; final inspection rates drop by over 80%.

4. Easily Adopted

   • For operators experienced with glue tray machines, the touchscreen training takes under 2 hours.

   • Glue cartridge loading, program recall, and clamp mounting are all straightforward steps.

5. Maintenance Benefits

   • Without trays, no drip catchers to clean. Daily wipe-down is all that’s required.

   • Exchangeable adhesive cartridges reduce adhesive switch-over contamination.

   • Self-checks for nozzle wear and pressure lines help preempt failures.

 Applications & Use Cases

• Premium Women’s Pointed‑Toe Dress Shoes

  • High-fashion stilettos, court shoes, and slingbacks with delicate uppers.

• Fashion-Forward Flats & Loafers

  • Trim midsoles require accurate gluing along edges for an upscale finish.

• Performance Athletic/Casual Lines

  • Socks and molded midsoles benefit from precise glue spread and reduced build-up.

• OEM Factories with Varied SKUs

  • Saved recipe storage eases quick changes between styles by batch or order.

• Manufacturers transitioning from Lava‑tray systems

  • Replacement systems with servo precision without tray‑related cleanup.

Expandable & Future‑Proof Design

• 5‑Axis Motion System built for expansions like an up/down roller or front clamping table.

• Firmware‑upgradeable process library gives future implementers access to new lasting strategies.

• Industrial‑grade frame and sealed control enclosures ensure long life in rugged shop environments.

 Installation, Training & Support

• Turnkey Package: We ship complete with glue pump, servo assembly, heating system, I/O cables, oil, quick-start tools, and mounting hardware.

• Onsite Installation & Commissioning: Our technician aligns, calibrates, and brings the machine live.

• Operator Training: 1-2 days of hands-on instruction covering programming, operation, routine upkeep, and basic troubleshooting.

• Warranty & Service: 24-month warranty on parts and workmanship. Optional 5-year plans include preventive maintenance visits, spare kits, and remote diagnostics.

• Global Support via phone, email, and on-site service teams. A cloud portal provides firmware updates, spare part ordering, and service records.

 Case Study Snapshot

Bella Crepa Shoes, Italy

• Challenge: High-end pointed-toe pumps required precise adhesion on feather-thin polypropylene molds. Glue drip leftover on molds used to cause 15% rejections per month.

• Solution: Installed two TH‑503 units running 3-shift, 5 days/week.

• Results:

  • The rejection rate dropped to 2%

  • Labor cost in the glue department dropped 40>#/p

  • Glue usage slashed by 30%

  • Production capacity increased 25>#/p

  • Cost saved: ~€75K/year, machine ROI in 14 months.

 Ordering Details

Standard Package Includes:

• TH‑503 toe‑stemming frame

• Visual‑locus servo adhesive pen & nozzles

• 3‑HP motor, 2 kW heater

• Hydraulics & oil reservoir package

• 10″ HMI touchscreen

• Cartridge feed system + spare cartridge

• Power/integration cables

• Safety guards + clamps

• USB/SD update kit

Optional Add‑Ons:

• IoT networking module (Wi‑Fi/Ethernet/cellular)

• PLC integration interface pack

• Spare nozzle kit (10-piece)

• Extended warranty & annual preventive maintenance

• Oil filters, hydraulic service kits, alignment fixturing

Lead Time: 6–8 weeks from order confirmation. Factory FOAT: Ready-to-ship from global production hubs. Shipping: Worldwide, packaged in a wooden crate (2.05 × 2.33 × 2.125 m), with forklift channels

The TH‑503 Toe‑Steming Machine is an advanced, tray-free, servo‑driven toe‑lasting powerhouse tailored for high‑quality, cost‑effective footwear manufacturing. With intelligent glue delivery, automated programming, reduced manual intervention, and fast changeovers, it turns a labor‑intensive workshop bottleneck into a streamlined production asset.

• Ideal for pointed‑toe and slim‑sole designs

• Boosts productivity by 25–50>#/p

• Shrinks labor overhead and reject rates

• Saves on adhesive waste

• Offers seamless integration into smart factory environments

Supercharge your factory’s toe-lasting line with the precision, speed, and ROI of the TH‑503. Contact your sales specialist today to schedule a demonstration, request a quote, or hear how this machine can transform your production capabilities.
