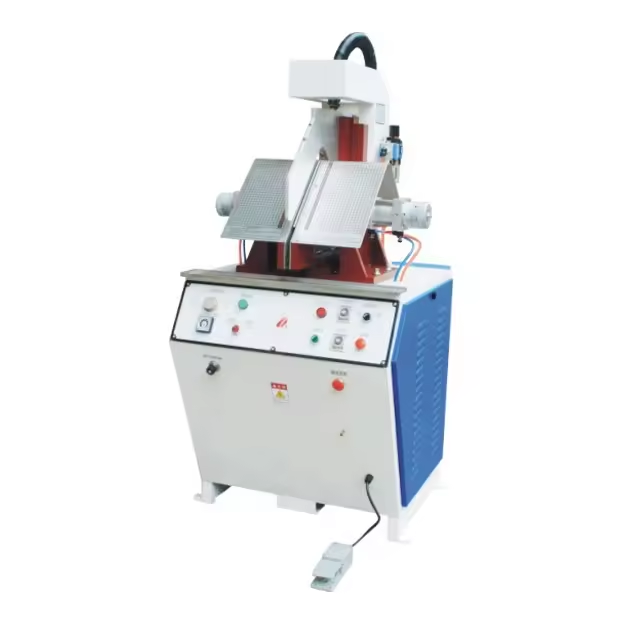

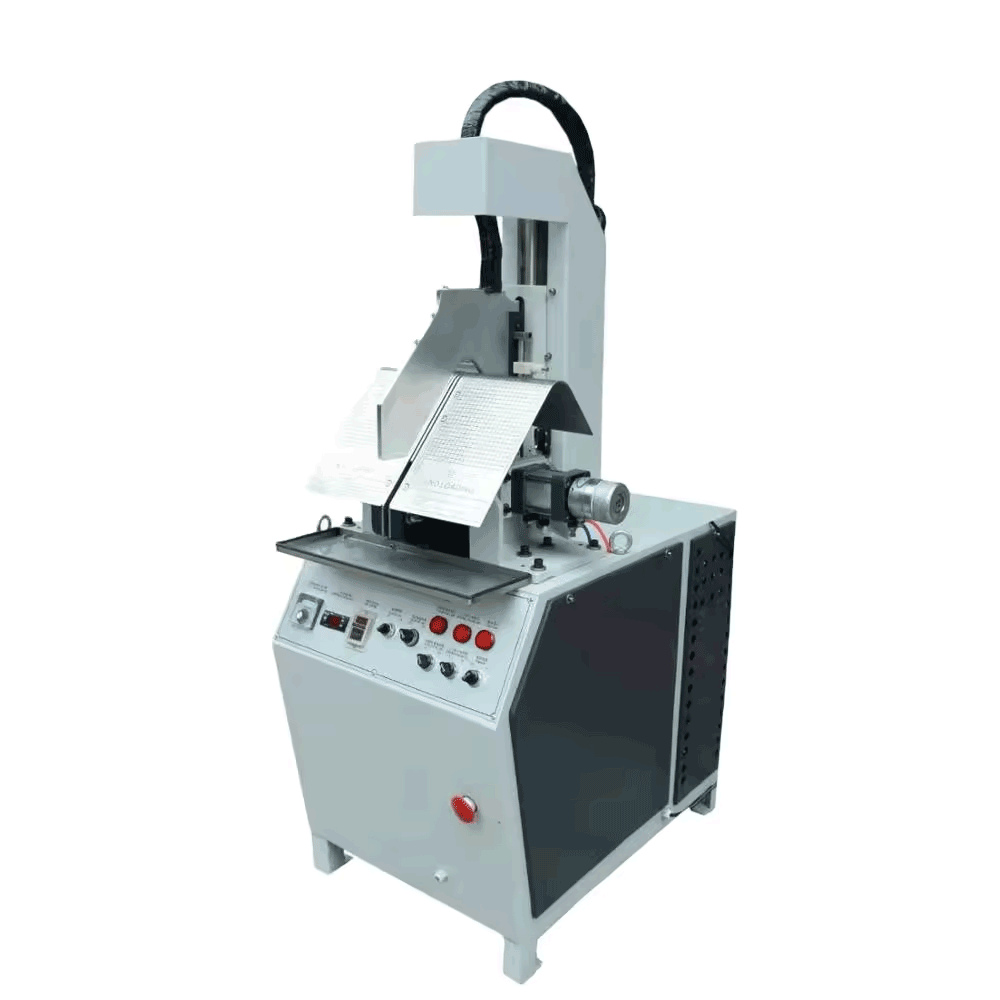

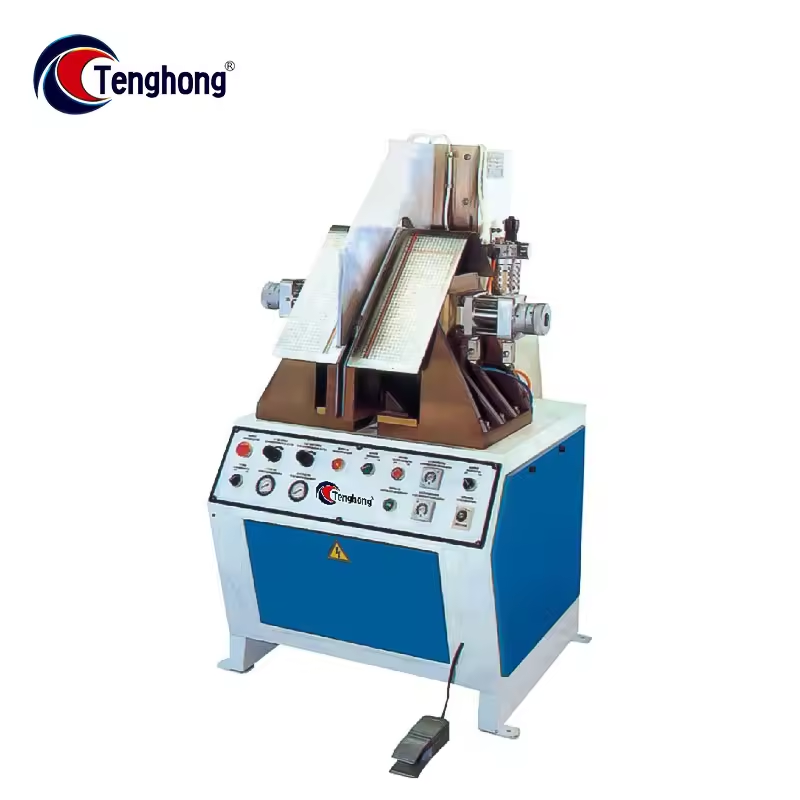

Shoe Upper Crimping Machine TH-318

In the rapidly evolving landscape of footwear manufacturing, the need for high-precision, labor-saving machinery is more critical than ever. The TH-318 Shoe Upper Crimping Machine is a state-of-the-art solution designed to meet the industry's growing demand for efficient, accurate, and operator-friendly equipment for forming and shaping shoe uppers and boots. The TH-318 is a fully pneumatic machine engineered to handle the complex process of upper crimping with absolute precision. Ideal for use on a wide variety of boot and vamp designs, it delivers consistent results across high production volumes. Thanks to its innovative pneumatic system, adjustable parameters, and stable mechanical structure, this machine enhances the speed, quality, and flexibility of your footwear production line. Footwear manufacturing is a discipline that blends artistry with technology. Each step in the process contributes to the final look, feel, and durability of the shoe, and crimping, particularly in boots and complex uppers, plays a key role. The TH-318 Shoe Upper Crimping Machine addresses one of the most intricate steps in shoemaking by automating the formation of smooth, curved vamps and boots. Crimping ensures that uppers fit tightly and smoothly over the last, shaping the contour of the front and side areas of the shoe. Traditional methods often involve manual effort and inconsistent results. With the TH-318, manufacturers gain the benefits of speed, accuracy, and repeatability, all while reducing manual labor and human error.

Core Applications and Use Cases

The TH-318 is engineered to handle the crimping of a wide variety of footwear types, including:

• Men’s and women’s boots

• Military or tactical footwear

• Children’s orthopedic shoes

• Luxury leather shoes

• Sports and casual footwear

• High-cut sneakers and fashion shoes

This machine is especially valuable for manufacturers dealing with complex curves, rigid materials, and mass-production requirements where consistency is vital. Whether you're working with genuine leather, synthetic materials, or layered fabric uppers, the TH-318 provides the mechanical strength and fine control needed for perfect curve formation.

Main Features and Functional Advantages

Wide Applicability for Auto Curve Setting

At the heart of the TH-318 is its automatic curve setting capability, designed for all types of boots and vamps. Whether the upper is made of soft leather or a stiffer composite material, this machine adjusts to accommodate different materials and shapes.

It automates the contouring process with high reliability, helping manufacturers maintain a uniform standard of quality across product lines. The shape formed through this crimping process ensures a sleek finish that enhances both comfort and style.

• No manual bending or shaping required

• Compatible with a broad range of designs

• Excellent for custom and premium footwear lines

Full Pneumatic System for Easy Operation

The TH-318 runs on a full pneumatic system, eliminating the need for complex electrical control units or hydraulic mechanisms. Pneumatic systems are widely favored in industrial automation for their simplicity, cost-effectiveness, and long service life.

Benefits include:

• Ease of use: Simple toggle controls make operation intuitive

• Smooth operation: Air pressure delivers consistent motion with minimal vibration

• Low maintenance: Fewer moving parts and no hydraulic fluid requirements

• Precision control: Adjustable pressure settings allow operators to fine-tune the shaping process

By relying solely on air pressure, the machine remains light, efficient, and easy to maintain — ideal for production environments where uptime and minimal maintenance are priorities.

Stable Movement with Column Runner Design

To ensure smooth, precise motion during the crimping process, the TH-318 adopts a column runner structure. This linear guidance system supports the vertical motion of the crimping press, maintaining alignment and reducing side loads that can lead to uneven shaping or material stress.

Advantages of the column runner system include:

• Improved stability: Even pressure distribution ensures the upper is shaped symmetrically

• Durability: Rigid mechanical framework withstands long production hours

• Accuracy: Reduced deflection results in consistently shaped uppers

• Smooth travel: Less mechanical resistance extends component lifespan

The mechanical precision provided by this system translates into real-world benefits for the quality and visual appeal of your shoes.

Adjustable Cutting Depth and Pressing Depth

One of the most important features for any crimping machine is adjustability, and the TH-318 excels in this area. Operators can fine-tune the cutting depth and the downward pressing depth to match the thickness and rigidity of each upper material.

This flexibility is critical in a modern production environment, where material variety is vast and customer preferences are constantly evolving. With the TH-318, you can:

• Achieve deeper curves on thicker leathers

• Reduce pressure for delicate materials

• Eliminate trial-and-error thanks to visible size markings

• Match machine settings to specific shoe designs and sizes

The visible vamp size scale further enhances accuracy by allowing quick and precise adjustments without the need for extensive measurements or external tools.

Technical Specifications and Performance

Every element of the TH-318 is designed to meet industrial-grade standards, ensuring it performs reliably in demanding production environments. Here’s a breakdown of its key technical specifications and what they mean for your business:

• Voltage: 220V — Compatible with standard industrial power supply, ensuring easy installation in most countries.

• Power: 1.5KW — Energy-efficient operation that minimizes electricity costs while maintaining optimal performance.

• Weight: 230 kg — Heavy enough to provide stable operation without being difficult to relocate or install.

• Output: 1500 pairs per 8-hour shift — High productivity suited for both small workshops and large manufacturing plants.

• Pneumatic Pressure: 0.4–0.6 MPa — Adjustable air pressure range that provides enough force for various material types and shapes.

• Machine Dimensions: 780mm (L) x 610mm (W) x 1520mm (H) — Compact footprint that saves factory floor space while offering robust operational capability.

This specification profile ensures that the TH-318 can be integrated into a wide variety of production setups — from boutique workshops to large-scale factory assembly lines.

Operational Workflow

Here is how the TH-318 fits into your production workflow:

1. Material Preparation: Place the pre-cut upper onto the working platform.

2. Adjustment: Set the depth, pressure, and vamp size as per material specifications.

3. Clamping and Alignment: Use the visible alignment guides and clamps to hold the upper securely.

4. Crimping: Initiate the pneumatic system. The machine automatically presses the upper downward along the vamp curve.

5. Release and Inspection: The shaped upper is released after pressing, ready for further assembly.

This simple yet precise operational flow ensures that minimum training is required for new operators and allows existing staff to work faster with higher confidence.

Durability and Maintenance

Built with industrial-grade materials and engineered for minimal wear, the TH-318 is designed for longevity. Its full-pneumatic system means there are no complicated motors or hydraulics to service, which reduces downtime and maintenance costs.

• Resistant to corrosion and wear

• A simple air system requires only occasional filter cleaning

• Heavy-duty pressing parts ensure extended performance

• All components are easily accessible for inspection or replacement

The machine’s uptime is among the best in its category, ensuring production lines keep moving without interruption.

Safety Features

Operator safety is a top priority in any manufacturing environment. The TH-318 is equipped with several features designed to ensure safe operation:

• Dual-hand activation system to prevent accidental start-up

• Pressure release valve to avoid over-compression

• Non-slip working surface to keep the upper material stable

• Emergency stop button accessible from the operator’s position

These built-in safeguards protect operators while ensuring production is not hindered by avoidable errors or injuries.

Ergonomics and Usability

Footwear production often involves repetitive movements. The TH-318 is designed with operator ergonomics in mind, featuring:

• Optimized height for standing or seated use

• Minimal force requirement thanks to pneumatic power

• Simplified interface with clearly labeled controls

• Low noise operation compared to electric and hydraulic alternatives

These considerations make the TH-318 an operator-friendly machine that reduces fatigue and increases productivity over long shifts.

Environmental Considerations

As more manufacturers aim to reduce their environmental footprint, the TH-318 proves to be a sustainable choice:

• Air-powered operation eliminates the need for oil or hydraulic fluids

• Low energy consumption reduces carbon emissions

• Quiet performance contributes to a safer, healthier work environment

• Minimal waste thanks to precision forming and fewer reworks

The machine aligns well with eco-conscious factories striving for cleaner, greener operations.

Customization and Integration

The TH-318 can be customized to match your specific production requirements. Manufacturers can request modifications in:

• Clamp design

• Control layout

• Size ranges for specialized footwear

• Interface language or labeling

Additionally, it can be easily integrated into semi-automated production lines or paired with digital monitoring systems for production tracking.

Who Should Use the TH-318?

This machine is a valuable asset for:

• Footwear manufacturers producing boots and high-cut shoes

• Leather goods companies offering custom-fitted footwear

• Orthopedic shoe companies require precision crimping

• Export-focused factories seeking higher consistency

• Small and medium enterprises are modernizing their manual production lines

It’s ideal for businesses looking to reduce manual labor, improve product quality, and increase production without sacrificing craftsmanship.

Return on Investment (ROI)

Investing in the TH-318 leads to clear business benefits:

• Higher output with fewer workers

• Lower product rejection rate

• Faster turnaround for bulk orders

• Greater control over production quality

• Reduced operator fatigue and errors

In just a few months, the machine pays for itself through labor savings, increased order capacity, and enhanced product quality.

The TH-318 Shoe Upper Crimping Machine is a perfect example of intelligent design and reliable performance in the footwear manufacturing industry. Combining full pneumatic automation with precise mechanical control, it brings together speed, accuracy, safety, and flexibility in a compact, user-friendly package. Whether you're producing rugged leather boots or fashionable high-top sneakers, this machine ensures that every pair gets the professional, finely contoured finish it deserves. It is a tool not just for making shoes, but for elevating the entire standard of your brand’s craftsmanship.
