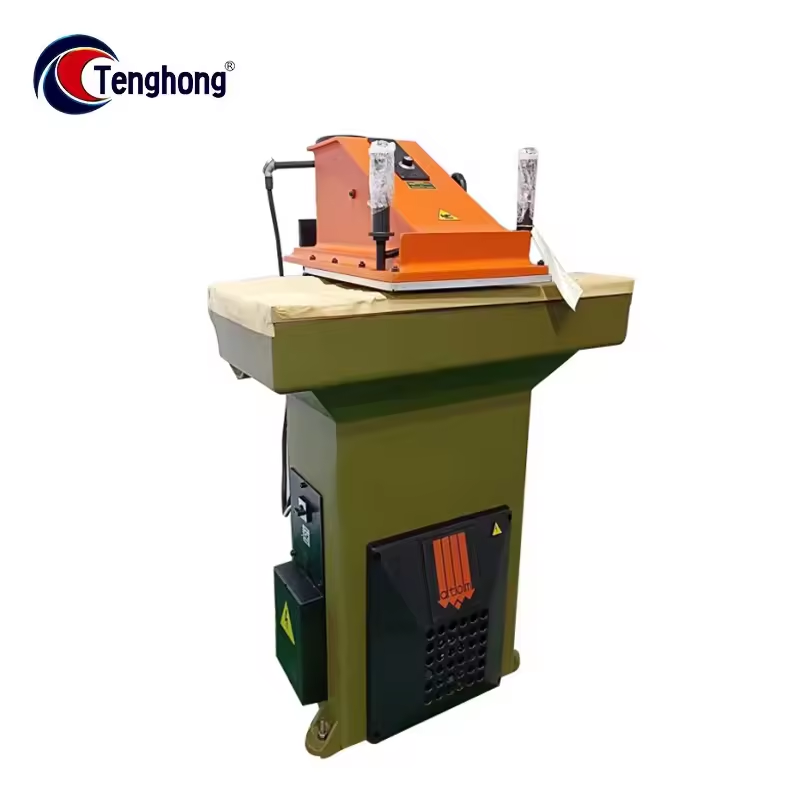

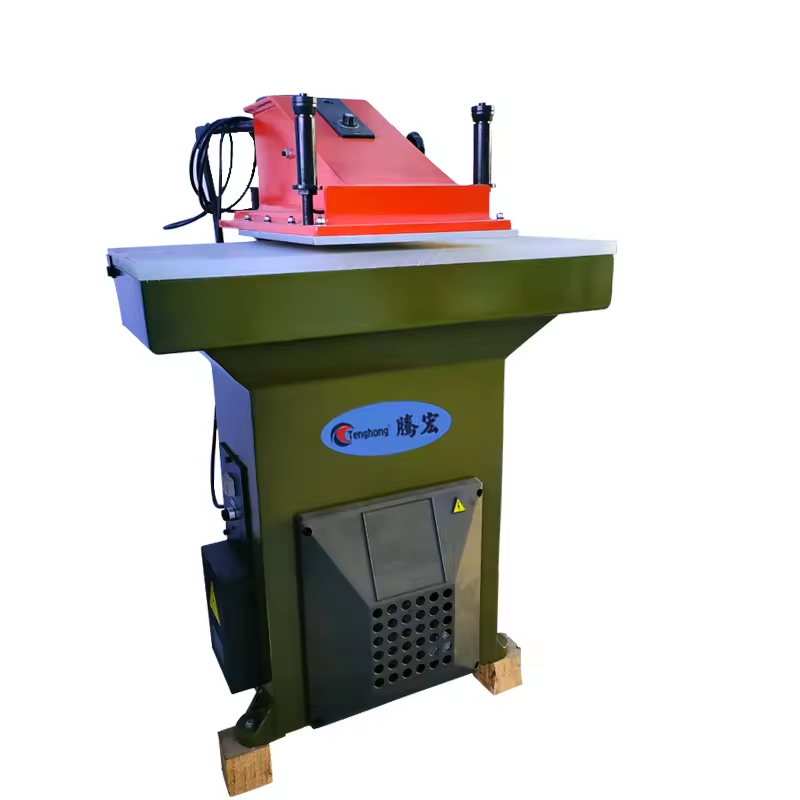

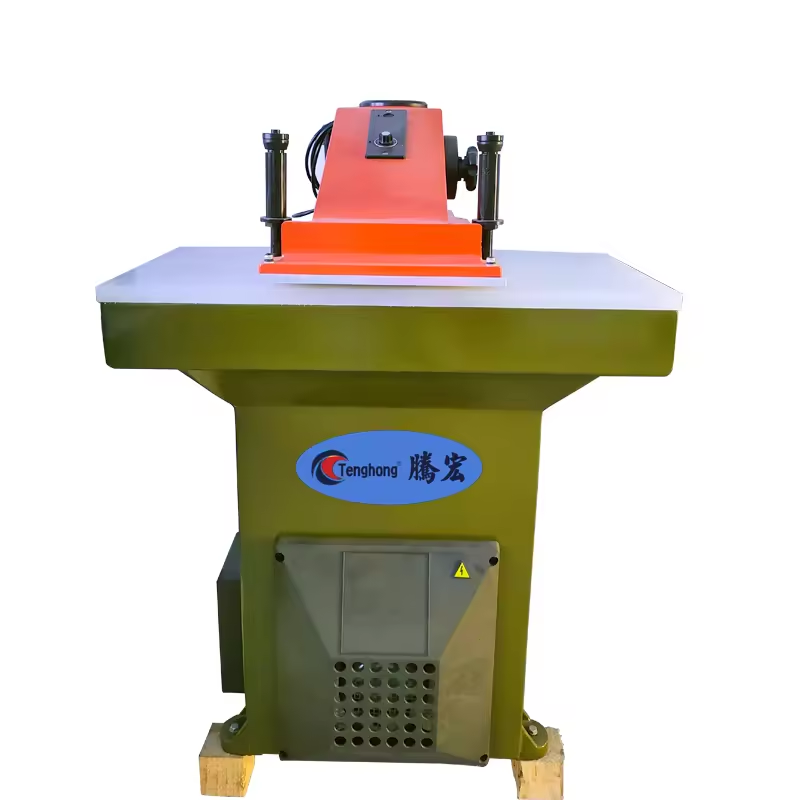

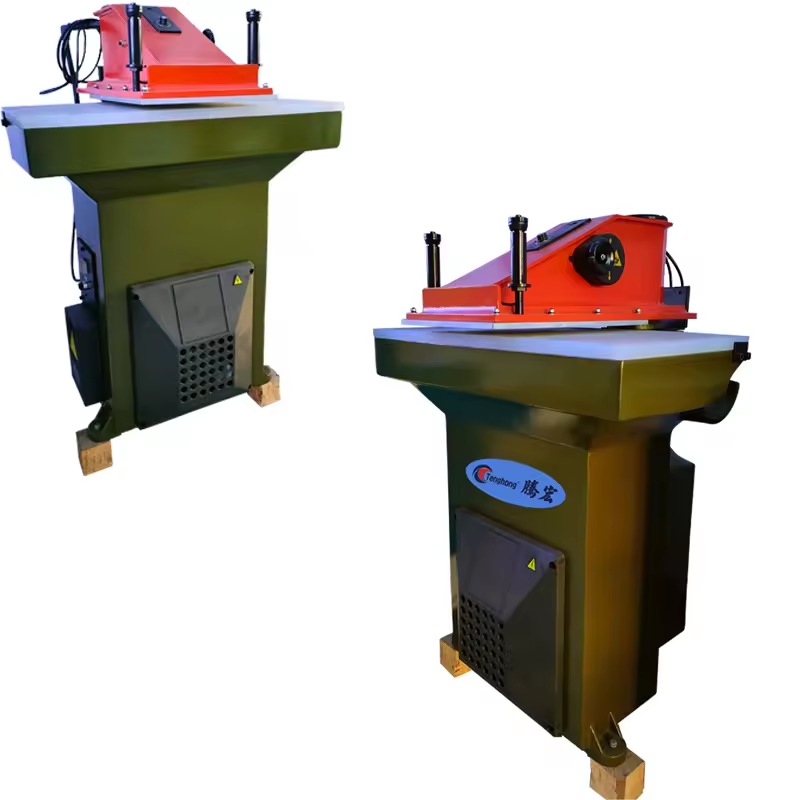

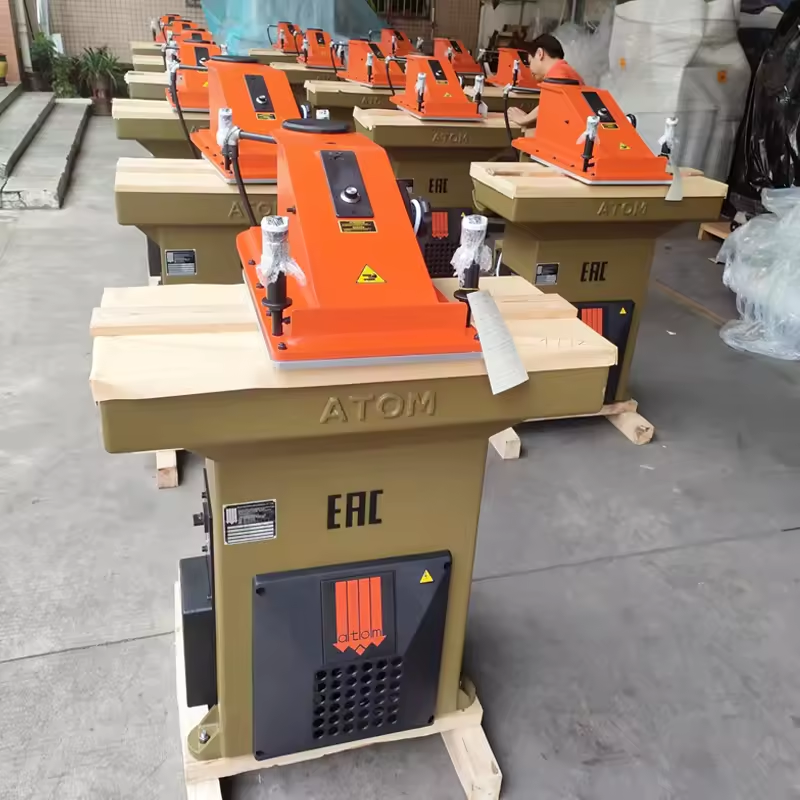

Hydraulic Swing Arm Cutting Machine TH-228

The TH-228 Hydraulic Swing Arm Cutting Machine is a state-of-the-art industrial cutting press designed to deliver exceptional performance, reliability, and efficiency for a wide range of cutting applications. Engineered with a unique hydraulic pressure system, this machine operates at very high speeds while maintaining low noise levels and minimal oil temperature rise, making it one of the most advanced and user-friendly cutting machines available today. Ideal for manufacturers and workshops involved in leather goods, textiles, plastics, rubber, and other sheet materials, the TH-228 offers precision, safety, and convenience in one compact and powerful package. Its swing arm mechanism, combined with hydraulic power, enables smooth, fast cutting cycles with minimal operator fatigue, all while consuming very little electrical power.

Unique Features and Innovations

Unique Hydraulic Pressure System

The TH-228 is powered by an advanced hydraulic pressure system that provides consistent, strong cutting force without the harsh mechanical shocks commonly associated with traditional presses. This unique hydraulic mechanism delivers power efficiently and smoothly, allowing the machine to operate at very high speeds while preserving the integrity of the die and materials being cut. The hydraulic pressure system is designed to maintain a low oil temperature during operation, which significantly extends the life of hydraulic components and reduces maintenance requirements. This is particularly beneficial in high-volume production environments where the machine operates continuously for long hours.

Very High-Speed Operation

Speed is a critical factor in industrial cutting machines, and the TH-228 excels in this area. Its hydraulic system enables rapid cutting strokes, allowing operators to complete up to 2000 pairs of cuts within an 8-hour shift without sacrificing precision or quality. The fast return speed of the swing arm minimizes cycle times, while the machine’s overall design ensures consistent pressure application on each cut. This results in both improved throughput and enhanced product consistency.

Low Noise and Low Oil Temperature

Unlike many mechanical cutting presses that generate loud noise and excessive heat during operation, the TH-228 is engineered to run quietly with noise levels between 68-70 decibels, equivalent to the sound of a normal conversation in a room. This creates a more pleasant and safer working environment by reducing noise pollution and operator fatigue. Additionally, the machine’s optimized hydraulic circuit prevents oil overheating, maintaining a stable, low oil temperature. This feature not only protects the hydraulic pump and seals but also extends the service life of the entire hydraulic system, reducing downtime and maintenance costs.

Dual Operation Mode – Hand Switch Serviceability

The machine is equipped with a convenient hand switch operation mode, allowing operators to easily control the cutting cycle. This simple on/off hand switch design facilitates quick and safe operation while providing better control over the cutting process. The hand switch system is highly serviceable, making maintenance and repair straightforward. The ease of operation reduces operator training time and enhances productivity on the shop floor.

Power-Saving Design

The TH-228 is designed with energy efficiency in mind. Its electrical power consumption is only 0.75 kW, which is significantly lower than many other cutting machines with similar capabilities. This energy-saving design helps reduce operating costs and contributes to environmentally friendly manufacturing practices. To complement its low power consumption, the machine is also fitted with an electrical protection system to safeguard against power surges, short circuits, and other electrical hazards. This increases the machine’s reliability and protects your investment over time.

Labor-Saving Swing Arm Operation

The machine’s swing arm is ergonomically designed to be easy to operate, making the cutting process safer, faster, and less physically demanding. The arm’s smooth movement requires minimal force from the operator, reducing fatigue and the risk of repetitive strain injuries . Because of its robust and well-balanced construction, the swing arm experiences very low breakdown rates, ensuring consistent machine uptime and reducing maintenance interruptions.

Two Cutting Stroke Styles with Easy and Accurate Adjustment

The TH-228 offers two selectable cutting stroke styles, giving operators flexibility to choose the cutting method that best suits their material and die requirements. This stroke adjustment mechanism is intuitive and highly accurate, enabling precise control over cut depth and pressure. The ease of setting and switching between stroke styles enhances operational efficiency, especially when handling different materials or thicknesses on the same production line. It also minimizes waste by ensuring optimal cutting force without damaging the die or material.

Technical Overview and Specifications

Though the TH-228 and its variant TH-228L share many features, they differ slightly in size, weight, and cutting pressure capacity to accommodate different production demands.

• Both models have overall compact dimensions of approximately 80 cm in length, 90 cm in width, and 130 cm in height, making them suitable for installation in a variety of factory layouts, including limited space environments.

• The TH-228 weighs 620 kilograms, making it lighter and easier to move or reposition, while the TH-228L weighs 900 kilograms, offering increased stability for heavier or larger cutting operations.

• Both models operate on standard 380V electrical voltage and come with motors rated around 0.75 kW to 0.9 kW, ensuring efficient power delivery with minimal energy consumption.

• Maximum cutting stroke is 9 cm on both models, providing ample range for processing materials of varying thicknesses.

• Pressure capabilities differ, with the TH-228 generating 20 tons of cutting force and the TH-228L producing 25 tons, allowing the latter to tackle tougher or thicker materials more effectively.

• Workspace dimensions vary slightly between the models: the TH-228 offers a cutting area of 90 by 43 cm, and the TH-228L extends this to 90 by 45 cm, providing extra room for larger dies or complex layouts.

• The oil capacity also differs, with the TH-228 holding 25 kilograms of hydraulic oil and the TH-228L requiring 35 kilograms, consistent with its higher power and pressure rating.

Applications Across Industries

The versatility and precision of the TH-228 Hydraulic Swing Arm Cutting Machine make it an invaluable asset across a broad spectrum of industrial applications:

Leather Industry

This machine is perfectly suited for cutting various types of leather materials, including genuine leather, synthetic leather, and composite leather sheets. It can easily handle multi-layer cutting, enabling faster production of shoe uppers, handbags, wallets, and belts. Its low noise and smooth cutting action are particularly beneficial in workshops and factories where operator comfort and quiet operation are prioritized.

Textile and Apparel Manufacturing

The TH-228 excels in cutting fabric materials such as nylon, canvas, cotton blends, and other woven or non-woven textiles. Whether producing garment patterns, bags, or industrial fabrics, the machine’s precise hydraulic pressure ensures clean cuts without fraying or distortion.

Plastic and Composite Materials

Plastic sheets, vacuum-formed parts, foam composites, and other synthetic materials can be cut with remarkable accuracy using this machine. Its adjustable pressure and cutting stroke allow manufacturers to customize operations to the exact material specifications, minimizing waste and maximizing yield.

Packaging Industry

For packaging manufacturers, the TH-228 enables fast and consistent die cutting of cardboard, paperboard, and laminated sheets. Its swing arm design facilitates quick loading and unloading, ideal for rapid production lines focused on high volume and quality.

Rubber and Foam Products

Industries producing rubber gaskets, seals, and foamed products benefit from the machine’s ability to cut through soft yet tough materials cleanly. The hydraulic swing arm provides sufficient force without damaging delicate edges or materials.

Operation and User Experience

The TH-228 Hydraulic Swing Arm Cutting Machine is designed with operator comfort and ease of use at its core:

• The swing arm is balanced and smooth, requiring minimal operator strength to move, which helps prevent fatigue during long shifts.

• The hand switch operation allows the operator to control the cutting stroke conveniently without needing to manually handle complex levers or buttons.

• Cutting stroke adjustment is straightforward, with clearly marked controls that allow precise selection of the cutting depth and style.

• The low noise operation helps maintain a comfortable work environment, enhancing focus and reducing stress levels among operators.

• The machine’s compact footprint makes it easy to incorporate into existing production lines without requiring major rearrangements or workspace expansion.

Maintenance and Durability

Maintaining the TH-228 is simple and cost-effective, thanks to thoughtful engineering and quality components:

• The hydraulic oil level and quality should be monitored regularly to ensure optimal machine performance and longevity. The machine’s oil capacity varies by model, but replenishment is straightforward.

• The motor and electrical components are protected by a comprehensive electrical protection system, reducing the risk of damage due to power fluctuations or faults.

• The swing arm mechanism and hydraulic pump are built with durable materials designed for extended service life and minimal breakdown.

• Routine checks on seals, hoses, and mechanical joints should be performed to prevent leaks and maintain cutting precision.

• Operator training is streamlined by the machine’s intuitive design and simple controls, reducing the chance of misuse or accidental damage.

Safety Features and Considerations

Safety is paramount in industrial machinery, and the TH-228 does not disappoint:

• The dual operational mode via hand switch ensures that cuts are deliberate, minimizing the risk of accidental activation.

• The swing arm moves smoothly and predictably, avoiding sudden jolts that could cause injury or damage to materials.

• The low noise level reduces auditory strain on operators, contributing to overall workplace safety.

• Protective guards can be installed around moving parts to prevent operator contact and potential accidents.

• The machine’s electrical protection system guards against electrical hazards, protecting both operators and equipment.

Why Invest in the TH-228 Hydraulic Swing Arm Cutting Machine?

Choosing the TH-228 means embracing a cutting-edge, efficient, and safe solution for your cutting needs:

• Efficiency: High-speed cutting capabilities combined with low power consumption reduce operational costs and increase throughput.

• Precision: Hydraulic pressure and adjustable cutting stroke guarantee clean, accurate cuts across multiple materials and thicknesses.

• Reliability: Durable components and low maintenance requirements ensure long-term operation with minimal downtime.

• Safety: Thoughtful safety design protects operators and reduces workplace risks.

• Flexibility: Two cutting stroke styles and adjustable workspace make the machine adaptable to a wide range of products.

• Operator Comfort: Low noise, ergonomic swing arm, and easy controls promote a comfortable and productive working environment.

The TH-228 Hydraulic Swing Arm Cutting Machine is a versatile, powerful, and user-friendly solution for modern manufacturing challenges. Whether you are producing leather goods, textiles, plastic components, packaging materials, or foam products, this machine offers the perfect blend of speed, precision, safety, and energy efficiency. Its unique hydraulic pressure system, combined with the ergonomic swing arm design and low operational noise, creates an unparalleled working experience that benefits both operators and manufacturers. Investing in the TH-228 means improving your production capacity, reducing costs, and ensuring consistent, high-quality output for years to come.
