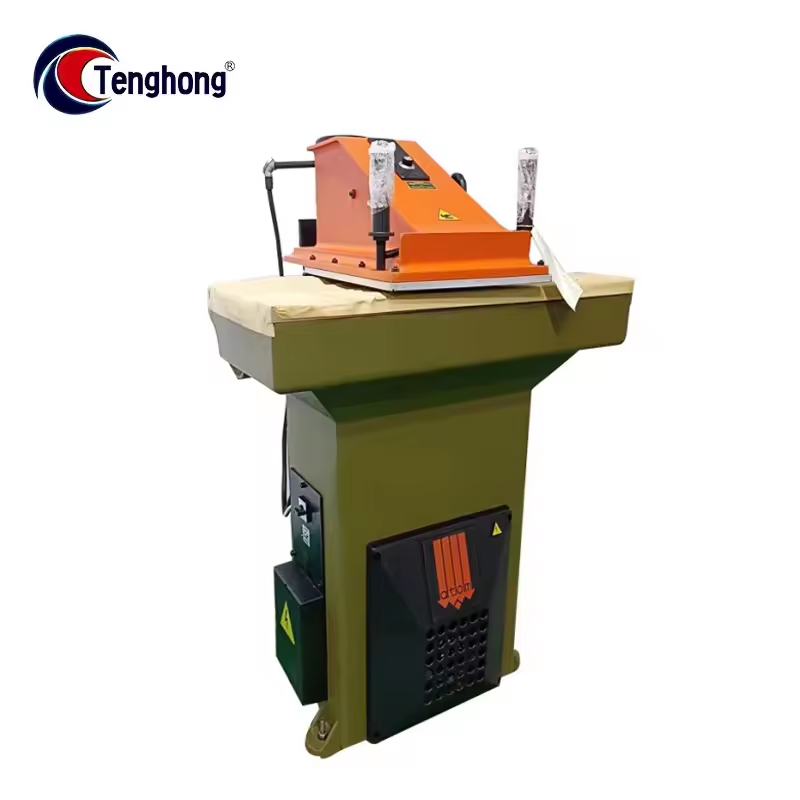

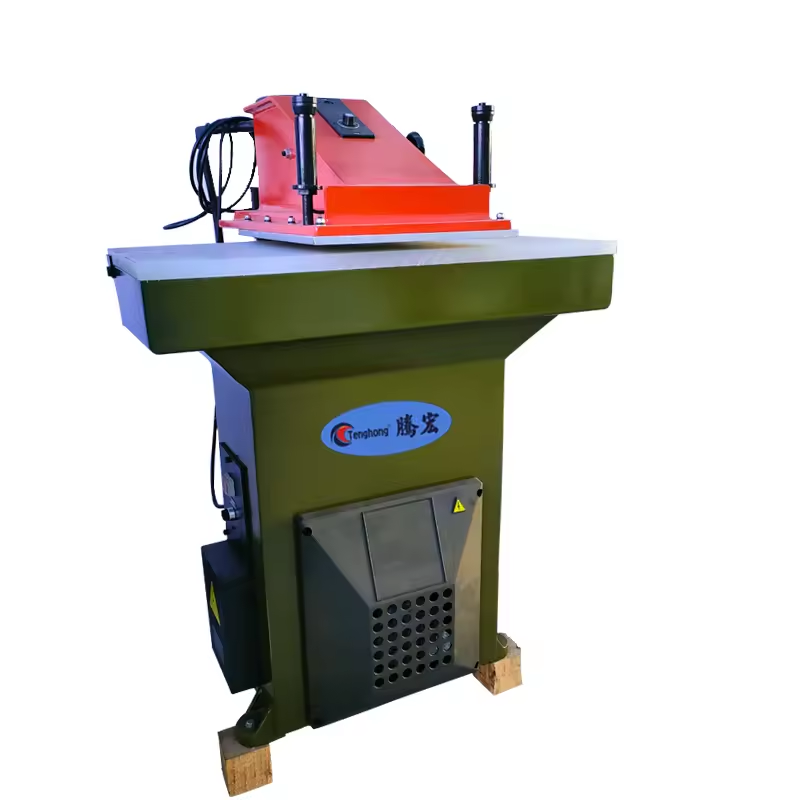

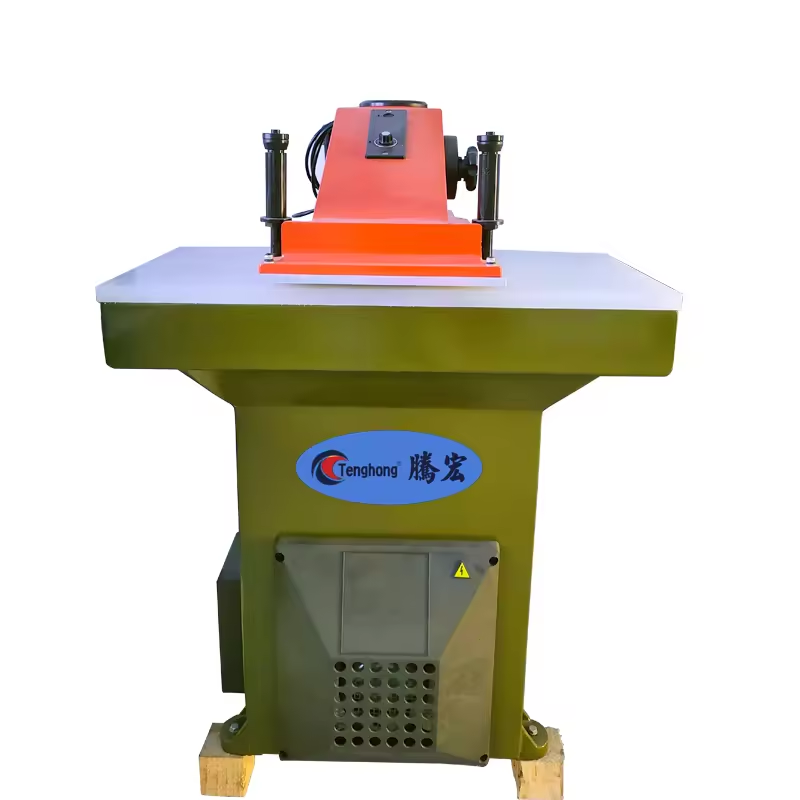

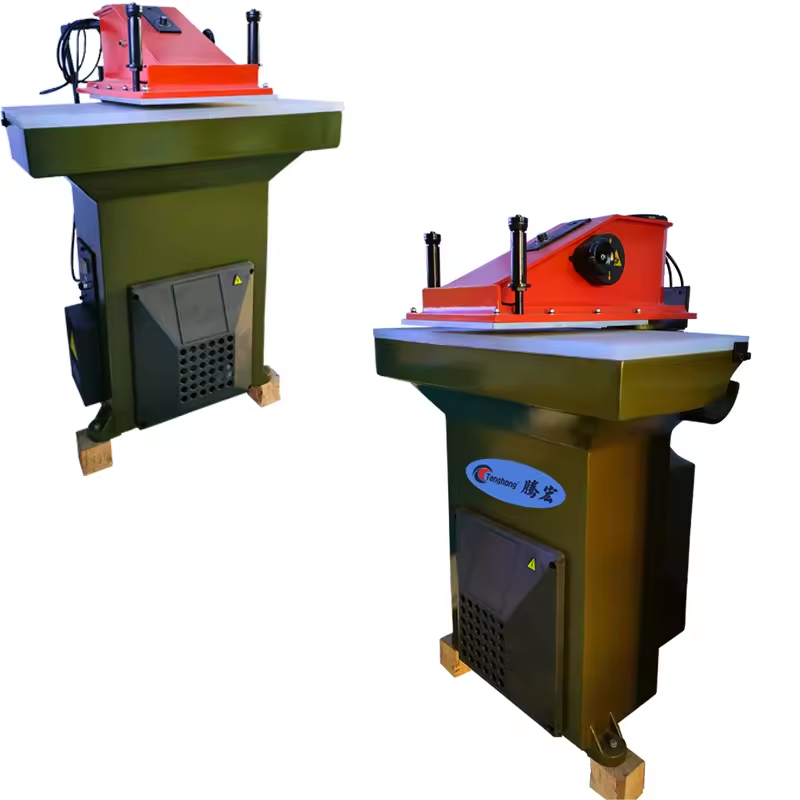

Hydraulic Swing Arm Cutting Machine TH-228

In the fast-paced world of industrial manufacturing and material processing, cutting efficiency, precision, and operational reliability play a crucial role in determining productivity and product quality. The TH-228 Hydraulic Swing Arm Cutting Machine is expertly engineered to meet the highest standards of modern cutting technology. Combining unique hydraulic pressure control with cutting-edge design innovations, this machine delivers unparalleled speed, low noise, and exceptional energy efficiency, all while ensuring operator safety and ease of use. Whether applied in leather goods, textiles, plastics, composites, or packaging production, the TH-228 sets a new benchmark for swing arm cutting machines. Below, you will find an in-depth exploration of its unique features, operational mechanics, advantages, and practical applications, designed to provide you with a comprehensive understanding of why this machine is a smart investment for enhancing your cutting operations.

Unique Hydraulic Pressure System: The Core of Efficient Cutting

At the heart of the TH-228 lies a unique hydraulic pressure system that is engineered for optimal cutting force with exceptional control. Unlike traditional mechanical presses that rely on brute force and complex gear trains, this machine uses hydraulic fluid pressure to deliver consistent, powerful, and smooth cutting strokes.

This hydraulic system provides several distinct advantages:

• Precise Pressure Control: The hydraulic pressure can be finely tuned to match the specific requirements of various materials and cutting dies, ensuring perfect cuts without material damage.

• Consistent Cutting Force: Hydraulic pressure remains steady throughout each cycle, eliminating the fluctuations common in mechanical systems that can cause inconsistent cuts or premature die wear.

• Powerful Yet Smooth Operation: The system balances strength and gentleness, allowing the machine to cut through tough materials while maintaining surface integrity and reducing waste.

By integrating this unique hydraulic pressure technology, the TH-228 achieves cutting performance that is both powerful and refined, suitable for a wide variety of industrial cutting applications.

Very High Speed for Increased Productivity

Speed is a decisive factor in manufacturing efficiency. The TH-228 is designed for very high-speed operation, enabling rapid cutting cycles without compromising precision.

Thanks to its advanced hydraulic system combined with the innovative swing arm mechanism, the machine can perform quick, repetitive cuts with minimal downtime between strokes. This translates into:

• Higher output per hour, meeting or exceeding demanding production targets.

• Reduced bottlenecks in cutting stages, helping smooth workflow transitions.

• Faster response to urgent orders or batch changes, increasing manufacturing agility.

High-speed cutting reduces labor costs and overall production time, giving users a competitive edge in markets where turnaround time is critical.

Low Noise Operation for a Healthier Workplace

Noise pollution is a common challenge in industrial environments, often contributing to operator fatigue and potential hearing damage. The TH-228 addresses this with low noise operation, a feature that enhances workplace comfort and safety.

The hydraulic swing arm cutting machine operates with minimal mechanical clatter or vibrations, thanks to:

• The hydraulic cushioning effect absorbs shock during cutting strokes.

• Smooth, balanced movement of the swing arm, reducing mechanical impact sounds.

• Noise-dampening materials are integrated into the machine frame and housing.

Operators benefit from a quieter work environment, which improves concentration and reduces stress. Moreover, low noise emissions help companies comply with occupational health regulations and contribute to overall employee well-being.

Very Low Oil Temperature for Reliability and Longevity

Hydraulic systems typically generate heat during operation, which can degrade oil quality and damage machine components if not properly managed. The TH-228 is designed to maintain very low oil temperature even during prolonged high-speed cycles.

This is achieved through:

• An efficient hydraulic circuit design that minimizes friction and heat generation.

• Integrated oil cooling mechanisms that dissipate heat quickly.

• Use of high-quality hydraulic fluids with excellent thermal stability.

Maintaining a low oil temperature extends the service life of both the hydraulic fluid and critical machine parts, reducing maintenance intervals and preventing unexpected downtime. It also improves the machine's overall reliability, making it ideal for continuous production environments.

Hand Switch Operation and Serviceability

Ease of operation and maintenance are central to the TH-228's design philosophy. The machine features a hand-operated switch that allows the operator to start and stop the cutting cycle conveniently and safely.

Key benefits include:

• Simple control interface: The hand switch is ergonomically placed for easy access without disrupting workflow.

• Enhanced operator control: Manual switching ensures the operator can closely monitor each cut for quality assurance.

• Safe and deliberate operation: The cutting cycle only initiates upon hand activation, reducing the risk of accidental starts.

In addition to ease of operation, the TH-228 is highly serviceable. Components are accessible for routine inspection and maintenance, with modular parts designed for quick replacement. This minimizes machine downtime and simplifies upkeep.

Power Saving Design with Electrical Protection System

Energy efficiency is a major consideration for modern manufacturing equipment. The TH-228 excels in this regard with its low electrical power consumption of just 0.75 kW, significantly lower than many comparable machines.

This efficiency stems from:

• The optimized hydraulic pump and motor system delivers necessary power without excess energy waste.

• Intelligent electrical design that matches power supply to operational needs.

• The integration of an electrical protection system that safeguards the motor and electrical components from overload, short circuits, and voltage fluctuations.

The electrical protection system not only prevents damage but also improves operational safety and prolongs machine life. Reduced energy consumption translates into lower utility bills and a smaller environmental footprint, supporting corporate sustainability goals.

Labor Saving Through Easy Swing Arm Operation

The TH-228’s swing arm design is a standout feature that greatly reduces operator effort and labor intensity.

Benefits of the swing arm mechanism include:

• Effortless operation: The arm’s balanced construction and smooth pivot motion allow even heavy cutting strokes to be performed with minimal manual force.

• Safe handling: The swing arm keeps the operator's hands clear of the cutting area, reducing the risk of injury.

• Fast operation: Quick arm movement enables rapid repositioning and cutting cycles, increasing throughput.

• Low breakdown rates: Durable, well-engineered joints and hydraulic systems minimize mechanical failures and maintenance needs.

This combination of easy handling and reliable performance saves labor costs and enhances workplace safety, making the TH-228 ideal for high-volume production lines and workshops.

Two Cutting Styles with Adjustable Cutting Stroke for Precision

Precision and flexibility are paramount in material cutting. The TH-228 enables users to set the cutting stroke through two distinct cutting styles, providing adaptability to a wide variety of cutting needs.

The two cutting styles typically include:

• Full cut: The blade completely penetrates the material, suitable for thick or multilayer cutting.

• Half cut: The blade partially penetrates, useful for labels, decals, or layered products where only partial cutting is required.

Operators can adjust the stroke length and pressure with ease, ensuring:

• Accurate cuts tailored to specific materials and product designs.

• Reduced wear on dies by avoiding excessive force.

• Minimization of material waste and product defects.

This flexible cutting stroke setting, combined with the hydraulic precision, ensures the TH-228 consistently produces high-quality results with minimal operator intervention.

Application Versatility Across Industries and Materials

The TH-228 Hydraulic Swing Arm Cutting Machine is an extremely versatile tool suitable for a variety of applications across multiple industries, including:

• Leather Industry: Efficiently cutting genuine and synthetic leather for footwear, handbags, upholstery, and garments.

• Textile and Fabric Cutting: Handling canvas, nylon, and other fabrics for industrial and fashion applications.

• Plastic and Composite Materials: Cutting thin to medium-thick plastics, foams, and composite sheets used in packaging and manufacturing.

• Paper and Cardboard: Cutting paper boards and packaging materials precisely and quickly.

• Automotive and Upholstery: Cutting foam and fabric layers for car interiors and furniture production.

Its ability to handle multiple layers and different materials with precision makes it a versatile asset in facilities with diverse production needs or batch processing requirements.

Robust Construction and Compact Design

Built with a rugged frame and high-quality components, the TH-228 offers a reliable and durable platform capable of enduring demanding industrial environments.

• The compact footprint allows the machine to fit comfortably into workshops and production lines without requiring excessive floor space.

• Solid construction reduces vibrations and increases cut accuracy.

• Quality materials and precision engineering ensure long-term durability.

This robustness, combined with a space-saving design, maximizes return on investment by delivering consistent performance over many years.

Safety Features for Operator Protection

Safety is integrated into the TH-228 from the ground up:

• The hand switch operation ensures deliberate activation.

• Safety guards and covers protect moving parts.

• Emergency stop options are typically included to immediately halt the machine.

• The swing arm’s design keeps the operator’s hands away from cutting areas.

Together, these features help minimize workplace accidents, ensure compliance with safety standards, and promote responsible operation.

Easy Maintenance and Reduced Downtime

Maintenance has been simplified in the TH-228 to help users maintain peak performance with minimal disruption:

• Serviceable components are easily accessible.

• Hydraulic fluid checks and replacements are straightforward.

• Modular design facilitates quick part swaps.

This ease of maintenance helps reduce unplanned downtime and repair costs, maximizing production uptime.

Environmental and Economic Benefits

With low power consumption, low noise emissions, and reduced waste through precise cutting, the TH-228 also offers environmental advantages:

• Lower energy costs reduce operational expenses.

• Quiet operation contributes to healthier workplace conditions.

• Accurate cutting reduces scrap and material waste.

This combination supports sustainable manufacturing practices without compromising productivity.

The TH-228 Hydraulic Swing Arm Cutting Machine is a next-generation cutting solution designed to bring precision, efficiency, safety, and versatility to your manufacturing processes. Its unique hydraulic pressure system, high-speed capabilities, low noise, and low oil temperature operation set it apart from conventional cutting machines. With energy-saving design, easy hand operation, labor-saving swing arm mechanics, and dual cutting styles for versatile material handling, this machine is the smart choice for businesses looking to optimize cutting tasks across a broad range of industries.
