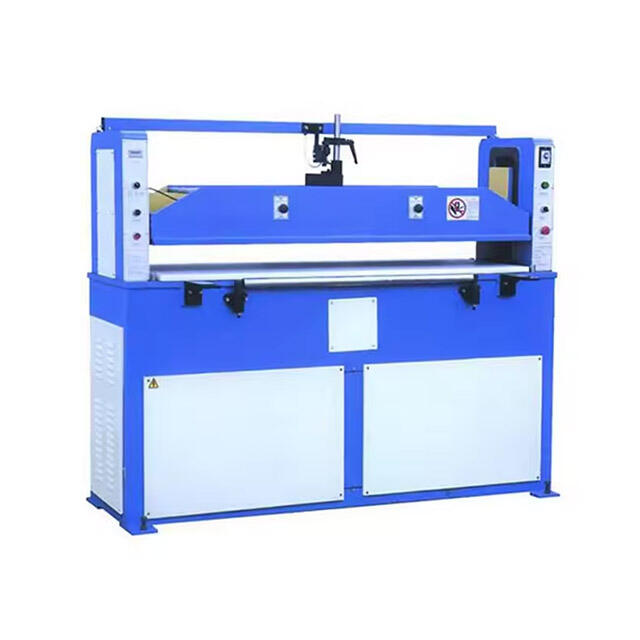

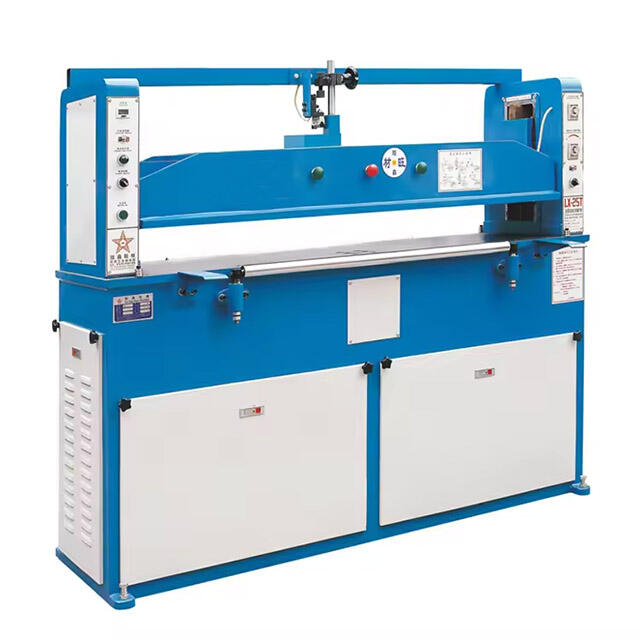

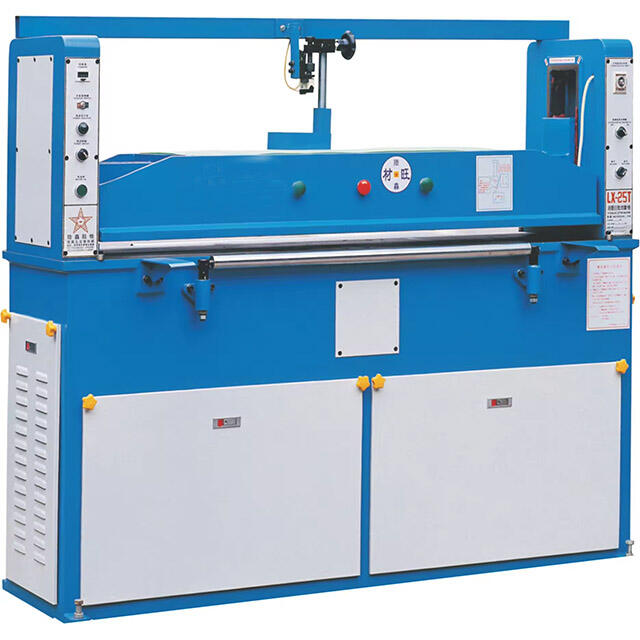

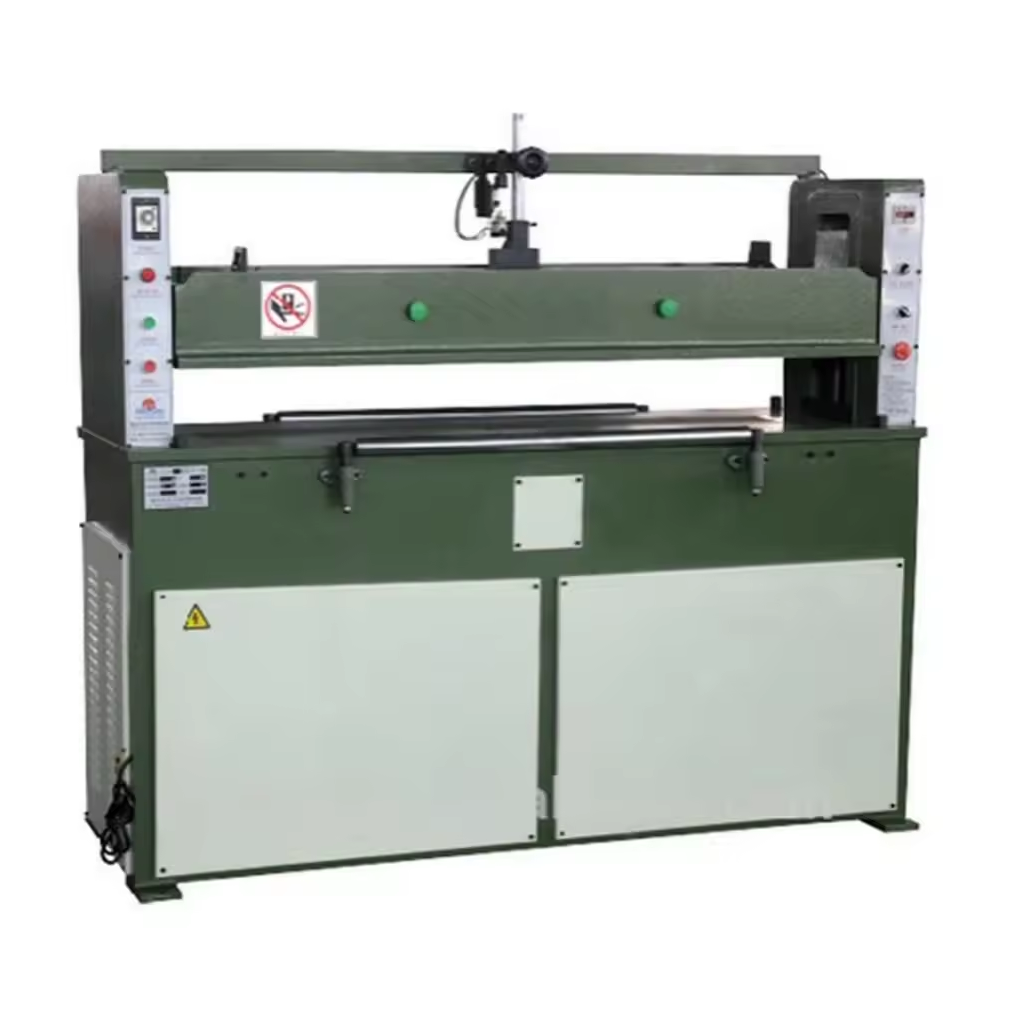

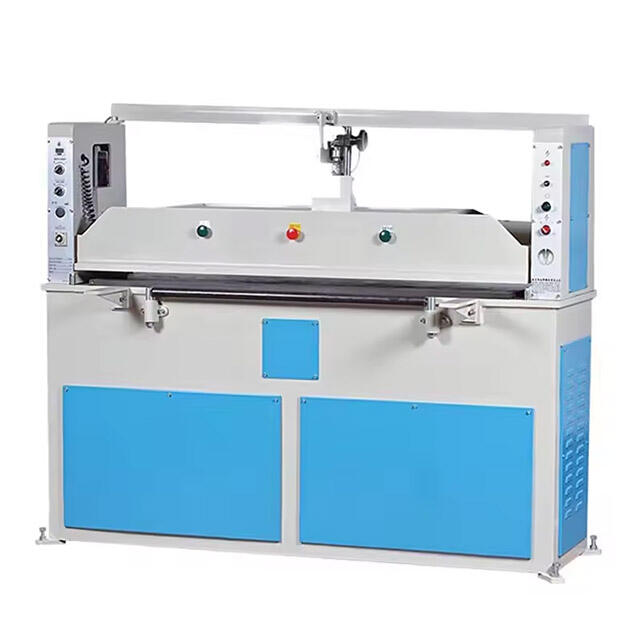

Hydraulic Die Plane Leather Cutter Machine Plane Clicker Press Machine TH-226

The TH-226 Hydraulic Die Plane Leather Cutter Machine, also known as the Plane Clicker Press Machine, is an advanced industrial cutting press designed for high-precision, high-efficiency material cutting applications. Engineered with innovative hydraulic technology and enhanced operational safety features, this machine provides an effective solution for cutting a wide variety of materials in the leather, plastics, composite, and synthetic product industries. Combining the best of traditional mechanical cutting press advantages with modern hydraulic and safety enhancements, the TH-226 stands out as a highly reliable, versatile, and efficient machine for both small and large-scale production lines. Its plane-style design accommodates the cutting of one or multiple layers of diverse materials, making it indispensable for manufacturers seeking quality and productivity improvements.

Key Features

Versatile Material Compatibility

One of the primary strengths of the TH-226 Hydraulic Die Plane Leather Cutter is its ability to cut through a wide range of materials. Whether working with natural leather, plastics, canvas, nylon, paper boards, vacuum forming products, wood, composite materials, or foaming products, this machine is designed to deliver clean, precise cuts every time. The capacity to handle multiple layers simultaneously significantly increases output without compromising cut quality. This multi-layer cutting capability is especially valuable in industries such as footwear manufacturing, upholstery, automotive interiors, and packaging.

Plane-Style Design for Precision Cutting

The machine features a plane-style construction that ensures even pressure distribution over the entire cutting surface. This design prevents material distortion or shifting during the cutting process, resulting in consistent, accurate cuts that meet strict production standards. The stable working platform, combined with the precise hydraulic force application, allows for intricate die cutting operations, perfect for producing detailed shapes, patterns, and labels with sharp edges and clean finishes.

Dual Operation Modes – Foot and Hand Control

Safety and operational flexibility are paramount in the TH-226’s design. The machine incorporates dual operation modes, foot-operated and hand-operated, which can be easily switched to suit different working conditions or operator preferences. This feature enhances workplace safety by requiring one deliberate action per cutting cycle, reducing accidental activations. It also enables the operator to maintain better control over the cutting process, improving accuracy and reducing fatigue during extended operation.

Simple and Accurate Cutting Point Setting

Adjusting the cutting point is a critical aspect of die-cutting machines, and the TH-226 excels in this area. The cutting point setting mechanism is engineered to be straightforward, enabling operators to make fine adjustments quickly and precisely. This ease of setting means less downtime during material changeovers or adjustments, contributing to higher overall productivity. It also reduces the learning curve for new operators, making training more efficient.

Quiet and High-Speed Operation

Unlike traditional mechanical presses that can be noisy and cause vibrations, the TH-226 operates quietly and smoothly thanks to its hydraulic drive system. This reduction in noise pollution creates a more comfortable work environment, improving operator concentration and safety. In addition, the hydraulic system facilitates faster cutting cycles without sacrificing precision, allowing production lines to run more efficiently and meet tight deadlines with ease.

Manpower Saving and Improved Efficiency

By automating much of the cutting force application and reducing manual effort, this machine significantly saves manpower. The powerful hydraulic press ensures consistent force application, eliminating the variability associated with manual or mechanical presses. This consistency enhances product quality, reduces material wastage, and allows operators to focus on other critical production tasks, thus optimizing labor allocation and operational efficiency.

Compulsory Lubrication System for Durability

The TH-226 is equipped with a compulsory lubrication system specifically designed for the transmission bar. This system ensures continuous, automatic lubrication during operation, minimizing wear and tear caused by friction and overheating. By protecting key mechanical components from damage due to neglect or improper maintenance, the lubrication system extends the machine’s service life and reduces maintenance costs over time.

Flexible Feeding Options

To accommodate different production setups, the TH-226 supports various feeding methods, including roller-type feeding systems. These feeding mechanisms facilitate smooth, automated material supply to the cutting area, enhancing throughput and reducing operator workload. For industries dealing with labels, plastic products, or delicate materials, the machine’s special half-cutting feature allows for partial cuts, enabling easy peeling or folding of finished products without damaging the substrate.

Robust Build Quality and Longevity

Constructed with heavy-duty steel and precision-engineered components, the TH-226 is built to withstand the rigors of continuous industrial use. The sturdy frame and quality hydraulic parts ensure minimal vibration, stable cutting pressure, and prolonged operational reliability. This robust design makes the machine suitable for harsh factory environments and guarantees years of dependable service with minimal downtime.

Technical Specifications

The TH-226 Hydraulic Die Plane Leather Cutter Machine boasts specifications that reflect its industrial-grade capability and versatility:

• Model: TH-226

• Overall Dimensions: 2330mm (Length) × 900mm (Width) × 1130mm (Height)

• Net Weight: 1550kg

• Power Rating: 1.5 kW motor, delivering sufficient power for consistent hydraulic pressure

• Hydraulic Stroke: Adjustable from 50mm up to 150mm, allowing for a broad range of material thicknesses and die sizes

• Working Table Size: Spacious 1600mm by 500mm, providing ample room for large dies and material handling

These parameters enable the TH-226 to handle extensive production requirements and diverse material types with ease.

Applications

The TH-226 Hydraulic Die Plane Leather Cutter is ideal for a broad range of industries where precise cutting of sheet materials is essential. Some notable applications include:

Footwear Manufacturing

Cutting leather, rubber, and synthetic shoe components is a critical step in shoe production. The TH-226’s ability to process multiple layers of shoe uppers, soles, and insoles ensures streamlined production and consistent part quality. Its precise die cutting allows for intricate designs, enabling manufacturers to innovate and customize styles without sacrificing efficiency.

Leather Goods and Accessories

From handbags and belts to wallets and apparel, the machine is capable of cutting leather sheets accurately to the required shapes and sizes. This enables manufacturers to reduce manual labor, improve cut consistency, and increase production volume.

Automotive Interiors

Automotive upholstery often involves cutting composite materials, synthetic leathers, foam, and fabric for seats, panels, and headliners. The TH-226’s adjustable stroke and strong hydraulic force make it suitable for these multi-layered materials, ensuring precise cutting without material damage.

Packaging Industry

The machine can cut paper boards, cardboard, and vacuum-formed packaging components, making it an excellent tool for packaging manufacturers looking for fast, reliable cutting presses that reduce waste and improve product uniformity.

Plastic and Composite Material Fabrication

With its ability to cut plastics and composite materials cleanly, the TH-226 is a versatile addition to workshops producing plastic parts, labels, or specialty synthetic products.

Textile and Apparel Industry

Cutting nylon, canvas, cotton, hemp, and other fabric layers is simplified by the machine’s adjustable stroke and die precision, reducing manual cutting errors and enhancing throughput.

Operation and Safety

User-Friendly Operation

The TH-226 is designed with operator convenience in mind. The foot and hand switching operation modes allow workers to adapt cutting methods according to their preferences or ergonomic needs, improving comfort and productivity. The clear-cut controls and easy-to-set cutting points ensure that even less experienced operators can quickly learn to operate the machine efficiently and safely.

Safety Features

Safety is paramount with this hydraulic cutter. The dual mode operation requires conscious activation for each cut cycle, minimizing the risk of accidental pressing. Additionally, the machine’s sturdy construction and well-guarded moving parts reduce exposure to hazards. The hydraulic system provides controlled pressure application, avoiding sudden or uncontrolled movements common in mechanical presses.

Maintenance

The compulsory lubrication system automatically oils the transmission bar, reducing the chance of mechanical failure due to poor lubrication. This reduces downtime and maintenance effort. Routine maintenance involves checking hydraulic fluid levels, inspecting seals and hoses, and ensuring the cutting dies are sharp and properly aligned. The machine’s design facilitates easy access to these components, speeding up service tasks.

Advantages Over Traditional Mechanical Presses

• Quieter Operation: Hydraulic power reduces noise and vibrations, creating a safer, more comfortable work environment.

• Higher Precision: Hydraulic control allows for more consistent and accurate pressure application, improving cut quality.

• Greater Flexibility: Adjustable stroke and variable pressure settings accommodate a wider range of materials and thicknesses.

• Improved Safety: Dual control mode and controlled hydraulic force reduce operator risk.

• Labor Savings: Reduced manual effort and faster cutting cycles enhance production efficiency.

• Durability: Automatic lubrication and robust construction minimize wear and extend service life.

Why Choose the TH-226 Hydraulic Die Plane Leather Cutter Machine?

In today’s competitive manufacturing environment, efficiency, precision, and reliability are crucial. The TH-226 delivers on all fronts, enabling manufacturers to:

• Increase output without compromising product quality

• Reduce labor costs and operator fatigue

• Cut a wide variety of materials with one machine

• Enhance workplace safety and reduce accident risk

• Minimize machine downtime and maintenance expenses

With its proven hydraulic technology and versatile functionality, the TH-226 is a wise investment for manufacturers aiming to modernize and optimize their cutting operations.

Customer Support and After-Sales Service

Our commitment extends beyond the sale. We provide comprehensive technical support, installation guidance, and operator training to ensure you get the maximum value from your TH-226 machine. Our skilled service team is available for routine maintenance, troubleshooting, and parts replacement to keep your production line running smoothly.

The TH-226 Hydraulic Die Plane Leather Cutter Machine is a cutting-edge solution for industries requiring high-precision, efficient, and safe material cutting. Its robust hydraulic system, flexible operation modes, and compatibility with numerous materials make it an indispensable tool for leather goods manufacturers, footwear producers, automotive suppliers, packaging companies, and more. By investing in the TH-226, businesses gain a reliable, high-performance machine that drives productivity, ensures product quality, and enhances worker safety — all critical factors in maintaining a competitive edge in today’s manufacturing sector.
