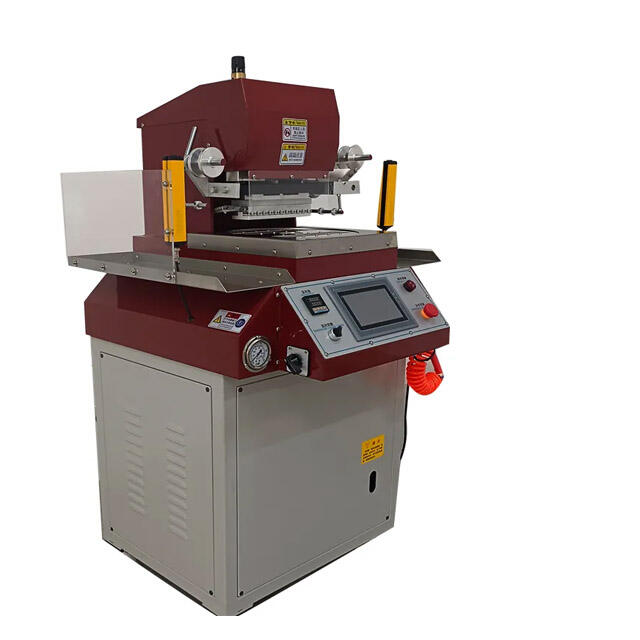

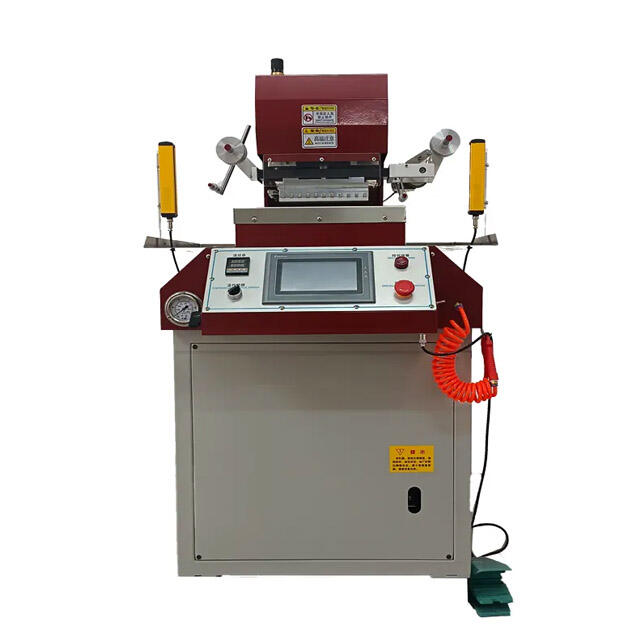

Rotating Platform Hot Stamping Machine TH-170

The TH-170 Rotating Platform Hot Stamping Machine is a high-performance, industrial-grade machine designed to meet the complex needs of modern manufacturing processes involving surface stamping, embossing, and branding. Whether you're working with leather, synthetic materials like PU leather, rubber, or even paper packaging, this machine delivers consistent results with exceptional precision. Engineered with efficiency, safety, and reliability in mind, the TH-170 sets a new standard in hot stamping and embossing technology.

Overview of the TH-170 Rotating Platform Hot Stamping Machine

The TH-170 is a versatile hydraulic hot stamping machine featuring a 180-degree rotating platform, making it ideal for large-scale production environments where speed and consistency are critical. The rotation mechanism allows operators to load and unload materials safely while the machine processes the other side, resulting in improved productivity and workflow efficiency.

This machine is suitable for surface stamping and embossing on a wide range of materials, including:

• Genuine leather

• PU (polyurethane) leather

• Rubber

• Paper packaging

• Handbags

• Shoes

• Belts

• Leather goods

• Other similar materials

Its hydraulic system ensures stable pressure, allowing for clear, consistent stamping results even on materials with varying thickness or texture. The compact yet robust design ensures the TH-170 can fit into various manufacturing environments while still delivering powerful and dependable performance.

Hydraulic Pressure Mechanism

The TH-170 utilizes a hydraulic mechanism to generate powerful and stable pressure, ensuring that every stamp or emboss is deeply imprinted with uniform consistency. This mechanism is particularly beneficial for embossing trademarks, logos, letters, and intricate patterns on tough or uneven surfaces.

• Stability: Hydraulic systems eliminate pressure fluctuations, providing a stable stamping process.

• Power: It delivers up to 3kW of stamping power, ensuring that even the hardest surfaces can be embossed effectively.

• Durability: Built with industrial-grade components, the hydraulic system requires minimal maintenance and offers a long operational life.

180-Degree Rotating Work Platform

One of the standout features of the TH-170 is its 180-degree rotating table. This innovative design enhances workflow and minimizes downtime:

• Dual-Side Operation: While one side of the table is in the stamping position, the other side can be used to set up the next piece, ensuring almost zero idle time.

• Increased Safety: Reduces operator exposure to hot surfaces and moving parts during operation.

• Enhanced Productivity: Greatly improves cycle times by allowing continuous operation.

Precision Temperature and Time Control

Achieving perfect stamping or embossing results requires precise control over heat and duration. The TH-170 offers:

• Adjustable temperature settings: Tailor the heat level based on the material and type of foil being used.

• Programmable timing functions: Control the dwell time to ensure clear, accurate imprints without burning or warping the material.

• Thermostatic regulation: Maintains consistent temperature throughout operation for high-quality outcomes.

Versatile Template Specifications

The machine features a stamping area or template size of 200mm x 60mm, which is ideal for:

• Logos and branding

• Decorative patterns

• Labeling and lettering

• Standard product markings

This size is particularly suitable for items like belts, shoe tongues, handbag flaps, and box lids. The well-proportioned template accommodates both linear and compact designs without sacrificing detail.

Material Compatibility

One of the main advantages of the TH-170 is its broad compatibility with various materials. This includes:

• Leather & Faux Leather: Easily stamps real and synthetic leathers with clean, embossed finishes.

• Rubber: Perfect for footwear and industrial rubber goods, leaving permanent, legible markings.

• PU Leather: Common in fashion goods, PU leather responds well to heat stamping.

• Paper Packaging: Useful for decorative branding or custom packaging needs.

• Textiles: Capable of stamping logos or designs onto fabric blends where applicable.

Its powerful press and uniform heat distribution make it an all-purpose tool across several industries.

Technical Specifications

• Model: TH-170

• Power: 3kW

• Voltage: 380V

• Template Size: 200mm × 60mm

• Machine Dimensions: 770mm × 750mm × 1480mm

• Weight: 285kg

The TH-170 is designed for 380V industrial power, suitable for factory floor usage where high-voltage equipment is standard. The physical footprint is compact for its class, which makes integration into existing production lines or workstations seamless.

Applications Across Industries

Footwear Industry

For manufacturers of shoes and boots, especially premium leather footwear, branding through embossing is essential. The TH-170 offers:

• Durable, professional branding on tongues, soles, and insoles

• High-quality decorative embossing for design aesthetics

• Batch stamping with consistent results

Leather Goods Production

From wallets to belts and bags, leather goods benefit from fine embossing. The machine delivers:

• Crisp logo impressions

• Deep embossing for tactile branding

• Controlled pressure to avoid damaging fine leather

Handbags and Fashion Accessories

Luxury brands and manufacturers of fashion accessories can use the TH-170 to:

• Stamp custom logos and initials

• Apply design elements like borders and texture patterns

• Handle both genuine and synthetic leather materials

Packaging Industry

For paper and cardboard packaging manufacturers, hot stamping adds value:

• Enhances brand recognition

• Provides high-end visual appeal

• Perfect for gift boxes, product packaging, and promotional items

Stationery and Printing

Notebooks, folders, and custom stationery often feature stamped logos or monograms. The TH-170 is ideal for:

• Decorative embossing

• Custom branding

• Personalized touches on high-end products

Ergonomics and Safety

Safety and operator comfort were key considerations in the design of the TH-170.

• Shielded Moving Parts: Protects operators from accidental contact with heated elements.

• Rotating Platform Mechanism: Prevents the need to reach over hot or moving components.

• Emergency Stop Function: Instantly halts operation in case of malfunction or error.

• Intuitive Controls: Easy-to-use interface allows operators to adjust parameters without complex training.

These features help reduce workplace injuries and fatigue, promoting a safe and productive working environment.

Ease of Use and Maintenance

The TH-170 is designed for ease of operation:

• User-friendly interface: Simple controls with clear labeling make it accessible for both skilled and novice workers.

• Quick-change template system: Allows for fast changeovers between stamping designs.

• Minimal Maintenance: Hydraulic and electrical components are durable and require infrequent service.

• Accessible Components: All critical areas are easy to reach for cleaning and maintenance.

Regular maintenance includes checking the hydraulic fluid levels, inspecting the electrical system, and cleaning the heating element. With these steps, the machine can maintain optimal performance for years.

Customization Options

For businesses with specific requirements, the TH-170 can be customized:

• Custom Mold Templates: Die-cut molds can be crafted for unique branding needs.

• Temperature Range Adjustments: Fine-tuning for specific materials or finishes.

• Optional Sensors or Automation Add-ons: Integration with production lines or conveyor systems.

This flexibility makes the TH-170 suitable for both standalone operations and high-volume, automated environments.

Benefits to Manufacturers

The TH-170 delivers several strategic benefits to manufacturers:

• Enhanced Product Value: Embossed branding and decoration elevate the perceived quality of products.

• Increased Efficiency: Dual-sided rotating platform reduces downtime and speeds up cycle times.

• Cost-Effective: Reduces reliance on manual labor and produces less material waste due to precise control.

• Reliability: Engineered for industrial use, the machine offers long-term stability and performance.

Why Choose the TH-170 Hot Stamping Machine

Investing in the TH-170 means investing in quality, reliability, and versatility. It's built to perform in demanding industrial environments while offering the flexibility required for artisanal, small-batch runs. Whether you operate a leather workshop, a packaging production line, or a fashion accessory brand, this machine can dramatically improve your stamping and embossing capabilities.

Key reasons to choose the TH-170:

• Dual-mode operation with rotating table

• Heavy-duty hydraulic mechanism for strong, consistent pressure

• Efficient energy use with 3 kW power

• Safe, ergonomic design for long working hours

• Adaptable for use on multiple materials

• Customizable to meet your business's branding or decorative needs

The TH-170 Rotating Platform Hot Stamping Machine is a specialized solution for businesses aiming to add value through high-quality stamping and embossing. Its combination of hydraulic power, advanced safety features, and rotating platform functionality makes it a must-have for industries working with leather, PU, rubber, and packaging materials. With its robust engineering, ease of use, and broad material compatibility, the TH-170 empowers manufacturers to meet the demands of today’s competitive markets. It is not just a machine—it is an investment in craftsmanship, efficiency, and brand elevation.
