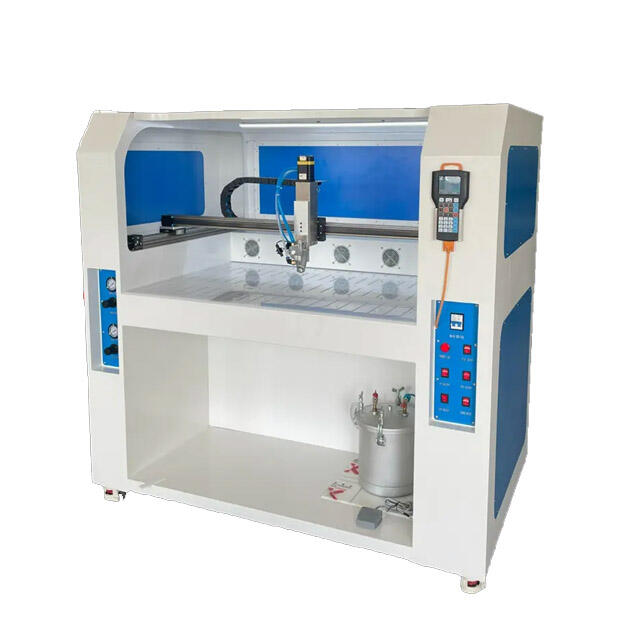

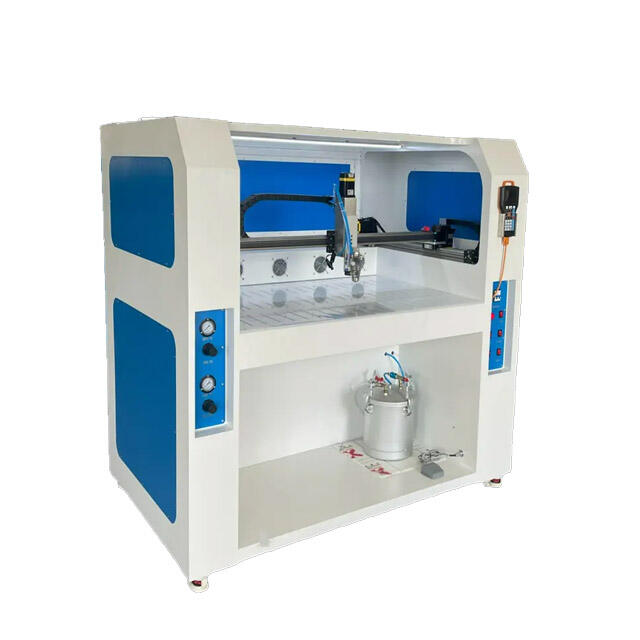

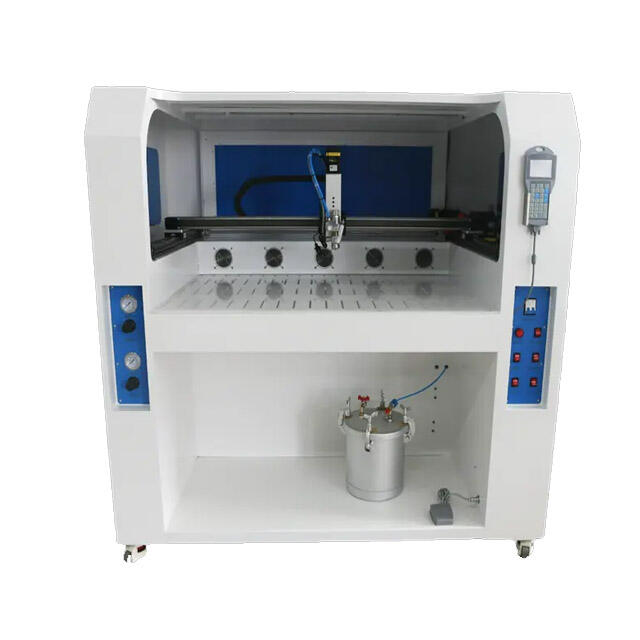

MACHINE NAME: CNC SPRAYING ALL-IN-ONE MACHINE

MODEL NO: TH-057

BRAND: TENGHONG

FEATURES

The fully automatic intelligent glue spraying machine adopts digital trajectory operation control technology, which is simple and convenient to operate. It is suitable for spraying glue in industries such as shoe making, sliver bags, handbags, luggage, jewelry, paper products, printing, toys, etc.

1.Easy to operate, handheld programmer, can also be programmed on a computer using CAD/CORELDRAW and other applications to convert graphics into PLT format and then download to the machine, making it easy to learn and understand.

2.Fast speed, high efficiency, adopting a bridge platform structure, which can work while placing materials. The spraying speed is 2-3 times faster than manual work.

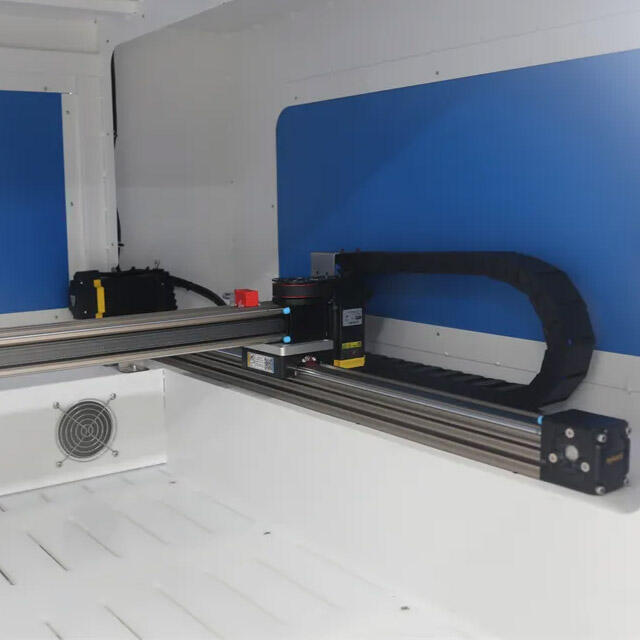

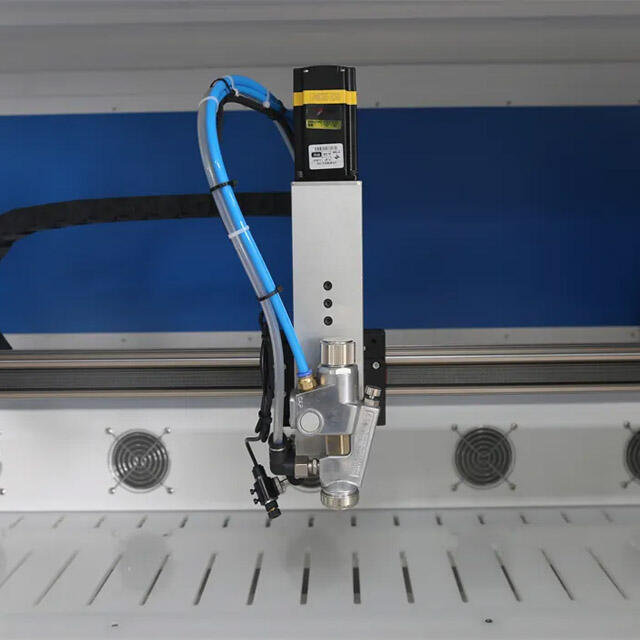

3.Up to four axis linkage, in addition to forward and backward movement, left and right movement, it can also be glued on three-dimensional, inclined, and isolated surfaces.

4.High precision, repetitive positioning accuracy<0.5mm, and uniform adhesive spraying surface.

5.Suitable for white glue and sprayable yellow glue.

6.Equipped with exhaust system.

TECHNICAL PARAMETER

1. Effective Spray Area          : 1600x650mm

2. Power                               : 2.0Kw

3. Voltage                             : 220V

4. Weight                              : 430Kg

5. Dimension                         : 2230x1030x1650mm

The TH-057 CNC Spraying ALL-IN-ONE Machine represents a cutting-edge advancement in adhesive spraying technology, designed to meet the evolving demands of modern manufacturing industries. This fully automatic intelligent glue spraying machine incorporates sophisticated digital trajectory control technology to offer precise, efficient, and versatile glue application solutions. In industries ranging from shoemaking and leather goods to paper products and toy manufacturing, the TH-057 stands out for its high-speed operation, exceptional precision, and adaptability to complex surfaces. Its integration of computer-aided programming and multi-axis movement capabilities enables manufacturers to automate and optimize glue spraying processes that were traditionally manual, labor-intensive, and prone to inconsistencies.

Core Features and Technological Highlights

Digital Trajectory Operation Control Technology for Ease of Use

One of the defining features of the TH-057 is its fully automatic digital trajectory control system. This technology simplifies operation by allowing glue spraying patterns and paths to be programmed digitally, removing the guesswork and variability common in manual spraying methods. Users can operate the machine through a handheld programmer, providing flexibility for quick adjustments and on-the-fly modifications during production. For more complex or repetitive tasks, operators can design spraying graphics using popular software like CAD (Computer-Aided Design) or CorelDRAW, and then convert these designs into PLT (plotter) format. The PLT files are directly uploaded to the machine’s control system, enabling precise replication of intricate spraying patterns and shapes with a minimal learning curve. This integration of digital design and automated control streamlines production, reduces errors, and facilitates customization for different product lines without the need for extensive retraining or manual programming.

High-Speed Operation with Bridge Platform Structure

The TH-057 is engineered for high efficiency, boasting spraying speeds 2 to 3 times faster than conventional manual application. This significant speed enhancement is achieved through its robust bridge platform structure, which allows the machine to operate while materials remain stationary on the work surface. This design eliminates the need for continuous repositioning of materials, saving valuable time and reducing workflow interruptions. The bridge structure also provides excellent stability and support for the spraying arm, ensuring smooth, consistent glue application even at elevated speeds. By increasing production throughput without compromising quality, the TH-057 is particularly suited for high-volume manufacturing environments where speed and precision are critical competitive factors.

Advanced Four-Axis Linkage for Complex Surface Spraying

The machine’s multi-axis capability is a standout feature. It supports up to four-axis linkage, enabling motion control not only in the standard forward/backward and left/right directions but also vertical movement for three-dimensional spraying on inclined, curved, or isolated surfaces. This advanced motion control expands the range of applications, allowing manufacturers to spray glue on products with complex geometries that would be difficult or impossible to treat with traditional flat-surface sprayers. For example, shoes with contoured uppers, handbags with irregular seams, or three-dimensional printed parts all benefit from the machine’s ability to maintain uniform glue application across varied surface profiles. The ability to precisely control spraying on 3D and inclined surfaces reduces the risk of weak adhesion points, ensures aesthetic consistency, and enhances overall product durability.

Superior Precision and Uniform Adhesive Application

Precision is paramount in adhesive spraying, and the TH-057 delivers exceptional accuracy with repetitive positioning accuracy better than 0.5 millimeters. This high level of precision guarantees that the glue is applied exactly where needed, minimizing overspray, reducing material waste, and improving the quality and consistency of bonded joints. The uniform adhesive spraying surface achieved by the machine’s precise control results in stronger, more reliable bonds and cleaner finished products. This accuracy is especially critical when working with delicate or high-value items such as jewelry cases, fine leather goods, or printed paper products.

Compatibility with Multiple Glue Types

Versatility in adhesive application is another key advantage of the TH-057. It is compatible with both white glue and sprayable yellow glue, two of the most commonly used adhesives in the industries it serves. White glue, often a polyvinyl acetate-based adhesive, is widely used for paper products, packaging, and some leather applications due to its strong bonding and quick drying properties. Sprayable yellow glue, typically a solvent-based adhesive with high bonding strength, is favored in shoemaking and leather goods manufacturing. By accommodating both glue types, the machine supports a broad range of product manufacturing needs without requiring multiple machines or complicated changeovers.

Integrated Exhaust System for Cleaner Operation

To maintain a safe and clean working environment, the TH-057 is equipped with an exhaust system that efficiently removes glue fumes and vapors generated during spraying. This feature helps protect operators from inhaling potentially harmful substances and reduces the risk of glue residue accumulating on machinery and work surfaces. The exhaust system contributes to improved workplace hygiene, complies with industrial safety standards, and enhances the overall reliability and lifespan of the machine.

Technical Specifications

The TH-057 CNC Spraying ALL-IN-ONE Machine is engineered with specifications optimized for industrial use, combining power, capacity, and precision.

• Model: TH-057

• Effective Spray Area: 1600 mm by 650 mm — suitable for large and mid-sized workpieces

• Power Consumption: 2.0 kW — energy efficient relative to output

• Voltage Requirements: 220V — compatible with standard industrial power supplies

• Physical Dimensions: 2230 mm in length, 1030 mm in width, and 1650 mm in height — compact enough for factory floors without compromising operational space

• Weight: 430 kg — robust construction for stable operation

Industry Applications

The TH-057 CNC Spraying ALL-IN-ONE Machine is engineered to serve a diverse range of industries, providing tailored glue spraying solutions that improve product quality, efficiency, and consistency.

Shoemaking Industry

The shoemaking industry demands precision and speed in adhesive application to meet high production volumes and strict quality standards. The TH-057’s ability to spray glue on complex shoe components such as uppers, soles, and insoles with multi-axis movement allows for efficient production with minimal human intervention. Its compatibility with yellow glue, widely used in footwear, ensures strong, durable bonds critical for footwear longevity and comfort. The machine’s rapid spraying speed and programmable operation significantly reduce labor costs and accelerate production cycles.

Leather Goods Manufacturing

Manufacturers of handbags, silver bags, wallets, and luggage benefit from the TH-057’s precision spraying and flexible programming. The ability to replicate detailed glue patterns exactly reduces material waste and prevents adhesive from damaging delicate leather surfaces. The four-axis control allows adhesive to be applied uniformly across irregular or three-dimensional designs common in luxury leather goods, improving bond strength and aesthetic quality.

Jewelry and Paper Products

For industries producing jewelry cases, document folders, and paper-based products, the TH-057 offers an ideal glue application method. It ensures neat, clean adhesion without overspray or excessive glue buildup, preserving product appearance and functionality. Its suitability for white glue also aligns well with the bonding requirements of paper, cardboard, and other porous substrates.

Printing and Toy Manufacturing

In printing and toy manufacturing, precision adhesive application is critical for assembling parts accurately and maintaining product safety standards. The TH-057’s programmable system can handle complex glue spraying tasks on small and intricate components, improving assembly quality and reducing production errors.

Operational Workflow and User Experience

The operation of the TH-057 CNC Spraying ALL-IN-ONE Machine is designed to be intuitive and operator-friendly. Users can choose between manual programming via the handheld device or automated programming through CAD/CORELDRAW software, converting design files into machine-readable PLT formats. This flexibility accommodates both small-batch custom production and large-scale industrial manufacturing. The machine’s interface provides real-time feedback on spraying parameters, allowing operators to adjust speed, glue volume, and trajectory dynamically. This interactive control system improves process reliability and responsiveness.

Advantages Over Traditional Glue Spraying Methods

• Automation: The TH-057 replaces labor-intensive manual spraying with automated, computer-controlled precision, reducing human error and fatigue.

• Speed: Achieving 2-3 times the speed of manual spraying enhances production throughput dramatically.

• Consistency: Uniform glue application improves bond strength and reduces product defects.

• Multi-Dimensional Spraying: Ability to spray on inclined and irregular surfaces expands product design possibilities.

• Environmental Safety: Integrated exhaust system maintains clean air quality and safer workplaces.

• Material Savings: Precise glue volume control minimizes adhesive waste and associated costs.

Maintenance and Support

The TH-057 is built for long-term reliability with durable components that require minimal maintenance. Routine care involves cleaning glue reservoirs, checking the exhaust system, and inspecting the multi-axis movement mechanisms for smooth operation. Comprehensive user manuals and technical support services ensure that operators can maximize machine uptime and performance.

The TH-057 CNC Spraying ALL-IN-ONE Machine stands as a flagship solution for industries requiring advanced glue spraying capabilities. Its combination of digital trajectory control, multi-axis linkage, high speed, and precision makes it an indispensable tool in modern manufacturing. By enabling fast, uniform, and adaptable adhesive application, the TH-057 empowers manufacturers to produce high-quality products more efficiently and cost-effectively. Its broad compatibility with various glue types and substrates further enhances its appeal across diverse industrial sectors. For companies seeking to enhance their glue spraying processes with state-of-the-art automation and control, the TH-057 offers a proven, reliable, and future-ready solution.
