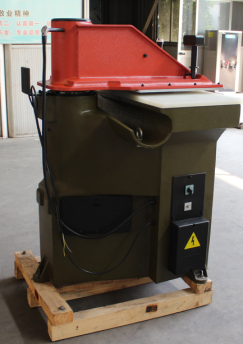

Small Die Cutter TW-928L(3+1)

The Small Die Cutter TW-928L(3+1) is a high-performance hydraulic swing-arm cutting machine designed for precision die-cutting in various industries, including leather, textiles, rubber, plastics, and more. This machine offers a significant upgrade from manual hand-cutting methods, providing consistent, high-quality cuts with enhanced safety features. Its robust construction and user-friendly design make it an ideal choice for small to medium-sized production environments.

Key Features

1. Hydraulic Swing-Arm Mechanism

   The TW-928L(3+1) utilizes a hydraulic swing-arm system that allows for smooth and controlled downward pressure. This mechanism ensures uniform cutting force across the entire die, leading to consistent results and extended die life.

2. Adjustable Cutting Stroke

   The machine offers an adjustable cutting stroke of up to 90mm, accommodating various die heights and material thicknesses. This flexibility enhances the machine's versatility, allowing it to handle a wide range of cutting tasks.

3. High Cutting Force

   Equipped with a 0.75 kW pump motor, the TW-928L(3+1) delivers a cutting force ranging from 22 to 28 tons. This high cutting power enables the machine to cut through thick and dense materials with ease.

4. Automatic Stroke End Adjustment

   The machine features an automatic stroke end setting that adapts to die cuts of varying heights. This eliminates the need for manual adjustments to the minimum cutting spot, streamlining the setup process and ensuring consistent cutting depth across different materials.

5. Enhanced Cutting Efficiency

   With faster height setting capabilities, the TW-928L(3+1) reduces downtime during die changes. This efficiency leads to significant savings in material usage, cutting time, and board utilization, optimizing production workflows.

6. Robust Construction and User-Friendly Operation

   Designed with a sturdy frame and compact dimensions, the TW-928L(3+1) is built to withstand rigorous use while occupying minimal floor space. Its robust construction ensures long-term durability and reliable performance. The machine's intuitive controls and ergonomic design facilitate easy operation, reducing the learning curve for new users and increasing overall productivity.

7. Operator Safety and Reliability

   Safety is paramount in industrial equipment. The TW-928L(3+1) incorporates a dual-hand switch mechanism, requiring operators to engage both hands simultaneously to initiate the cutting process. This safety feature minimizes the risk of accidents, ensuring a secure working environment.

Technical Specifications

• Cutting Force: 22–28 tons

• Motor Power: 0.75 kW

• Swing Arm Width: 610 mm

• Cutting Stroke: 90 mm

• Work Table Size: 1000 x 500 mm

• Net Weight (with oil): 1050 kg

• Gross Weight: 1180 kg

Applications

The TW-928L(3+1) is suitable for cutting a variety of materials, including:

• Leather

• Fabrics

• Rubber

• Plastics

• Foam

• Cardboard

Common applications include:

• Leather goods manufacturing (e.g., wallets, belts, bags)

• Textile and garment industries

• Footwear production

• Crafting and DIY projects

Maintenance and Care

To ensure optimal performance and longevity, regular maintenance is recommended:

• Hydraulic System: Check oil levels and replace hydraulic fluid as needed to maintain smooth operation.

• Swing Arm: Lubricate pivot points periodically to reduce wear and ensure consistent movement.

• Electrical Components: Inspect wiring and connections for signs of wear or damage, and replace as necessary.

• Safety Features: Regularly test safety switches to ensure proper function and replace if malfunctioning.

The Small Die Cutter TW-928L(3+1) stands out as a reliable and efficient solution for precision die-cutting needs. Its combination of advanced features, safety mechanisms, and user-friendly design makes it an invaluable asset for businesses seeking to enhance their production capabilities. Whether for leather crafting, textile manufacturing, or other applications, this machine offers the performance and reliability required to meet diverse cutting demands.
