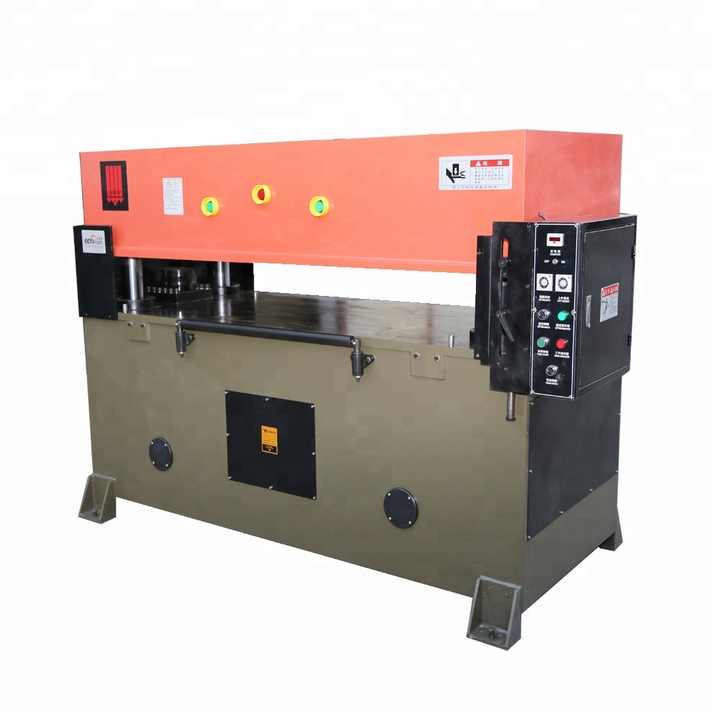

Shoe Machine Beam Press TW-530P

The Shoe Machine Beam Press TW-530P is a versatile, high-performance industrial press machine specially designed for precision cutting and molding across a vast range of materials and industries. Engineered to deliver consistent, high-quality results, the TW-530P excels in processing plastic, sponge, EPE pearl cotton, carpets, automotive interiors, gloves, bags, puzzles, EVA, PAC, PVS, plastic floors, ceiling panels, floor mats, car cushions, car seats, decorative materials, square tiles, flooring, carpets, footballs, sandpaper, grinding wheels, polishing CDs, insoles, shoe uppers and soles, leather, rubber, chemical fibers, paper, canvas, nylon, non-woven fabrics, cotton fabrics, and various other non-metallic materials. It handles single-layer or multilayer sheets and coils using a knife mold cutting system, enabling it to achieve superior molding and cutting precision for diverse manufacturing needs.

Versatility in Material Processing

The TW-530P is uniquely engineered to accommodate an extensive variety of materials, whether soft, flexible, dense, or layered, making it an indispensable asset in modern manufacturing settings. It effectively processes plastics of various types and thicknesses, including flexible plastics for packaging and rigid plastics for industrial components. Sponge and EPE pearl cotton materials, widely used for cushioning and packaging, are cut and molded cleanly without deformation, preserving material integrity and maximizing product durability. Carpets and automotive interior components, such as floor mats and car cushions, benefit from the TW-530P’s precise cutting capabilities that maintain intricate patterns and contours required for aesthetic and functional purposes. This press machine can handle complex shapes and thick, multi-layered automotive upholstery with uniform pressure distribution to ensure seamless cutting and shaping. For industries manufacturing gloves and bags, the machine offers impeccable precision and repeatability, facilitating the efficient production of components from thin, delicate fabrics to thicker synthetic materials. EVA, PAC, and PVS materials, often used in sports equipment and protective gear, are also expertly processed by the TW-530P, which supports both heavy-duty and delicate operations. The machine’s ability to handle plastic floors, ceiling panels, and decorative materials opens up its applications to the construction and interior design industries. Square tiles and flooring materials, requiring high dimensional accuracy and clean edges, are perfectly handled by the machine’s beam press mechanism, ensuring reduced waste and consistent output quality.

Advanced Knife Mold Cutting System

At the heart of the TW-530P’s operational excellence is its advanced knife mold cutting system. This system employs specially designed molds shaped to exact product specifications, allowing for accurate and repeatable cutting or molding of sheet and coil materials. The knife molds are manufactured with high-precision steel, ensuring long-term durability and resistance to wear, even when processing abrasive or hard materials such as sandpaper and grinding wheels. The cutting system is designed for both single-layer and multi-layer applications, giving manufacturers the flexibility to process complex composite materials or layered assemblies in one cycle. This reduces operational time and increases throughput, especially in mass production environments where speed and precision are critical. The cutting pressure of the TW-530P is adjustable and evenly distributed across the entire press beam, ensuring consistent results regardless of material thickness or density. This adaptability makes it ideal for a wide spectrum of products, from delicate insoles and shoe uppers to thick, multi-layered automotive cushions.

Applications Across Diverse Industries

The TW-530P’s flexibility and precision make it an excellent choice across numerous industries, including:

• Footwear Manufacturing: The machine cuts shoe uppers and soles, insoles, and other shoe components with high accuracy, supporting a wide variety of materials including leather, rubber, EVA, and synthetic fibers. Its ability to process multi-layer composites allows manufacturers to produce durable, comfortable footwear efficiently.

• Automotive Industry: It handles interior materials such as car seats, cushions, floor mats, ceiling panels, and decorative trims with uniform cutting pressure, preserving material integrity and ensuring exact fitment.

• Textile and Apparel: The TW-530P cuts leather, chemical fibers, canvas, nylon, cotton fabrics, and non-woven materials used in garments, bags, gloves, and accessories with clean, precise edges, enhancing product quality and reducing post-processing needs.

• Packaging Industry: It processes EPE pearl cotton, sponge, plastic sheets, and other cushioning materials used in protective packaging solutions, helping companies create tailor-made packaging with minimal waste.

• Sports Equipment: The machine supports materials like EVA, PAC, and PVS used in manufacturing footballs, protective gear, and other sports-related products, ensuring consistency and durability.

• Construction and Interior Decoration: It cuts plastic floors, tiles, carpets, and decorative materials to exact dimensions, supporting large-scale building projects and custom interior solutions.

• Industrial Abrasives and Polishing: The press can cut sandpaper, grinding wheels, and polishing CDs with the necessary precision and pressure, improving the quality of finished products and prolonging their usability.

• Miscellaneous: The machine’s adaptability extends to the production of puzzles, bags, and other items made from synthetic or natural materials, facilitating creative manufacturing applications.

Structural and Technical Features

The TW-530P is built on a robust, high-strength frame designed to withstand heavy industrial usage while maintaining stable operation. The beam press mechanism applies uniform pressure across the entire working surface, ensuring even cutting and molding without material distortion.

Key structural highlights include:

• Heavy-Duty Frame: Constructed from reinforced steel, the frame ensures machine stability and longevity, even under high-pressure conditions.

• Adjustable Beam Pressure: Operators can fine-tune the pressing force according to material type and thickness, optimizing cutting quality and reducing material wastage.

• Precision Knife Molds: High-grade steel knife molds offer durability and sharpness, maintaining clean cuts over prolonged operational cycles.

• Large Working Area: The TW-530P supports processing large sheets and coils, enabling batch production and improving manufacturing efficiency.

• Multilayer Capability: The press can handle multiple layers of material simultaneously, cutting through composite sheets or layered fabrics without compromising quality.

• Ergonomic Controls: User-friendly control panels allow operators to set pressure, cutting speed, and cycle time with ease, facilitating consistent output and minimizing errors.

• Safety Mechanisms: The machine incorporates safety guards and emergency stop functions to protect operators during operation, ensuring compliance with industrial safety standards.

Operational Efficiency and Productivity

The TW-530P excels in enhancing production throughput while maintaining exceptional quality. Its beam press design ensures even pressure application, reducing defects caused by uneven cutting or material displacement. The adjustable cutting pressure feature allows the machine to switch seamlessly between different materials and thicknesses without requiring time-consuming retooling. The ability to cut multilayer materials in a single operation saves valuable processing time and labor costs, significantly boosting productivity. This makes the TW-530P ideal for high-volume manufacturers seeking to optimize production lines and reduce turnaround times. Moreover, the machine’s durable construction minimizes maintenance downtime, ensuring continuous operation even in demanding factory environments. The high precision of the knife molds means fewer replacements and lower operating costs over time.

User-Friendly Operation and Maintenance

Designed with operators in mind, the TW-530P includes intuitive control interfaces that streamline setup and operation. Parameters such as pressure, cutting speed, and cutting depth can be programmed and adjusted easily, allowing for quick transitions between different production runs. Maintenance access points are strategically located to facilitate routine inspections and servicing, reducing downtime and ensuring the machine remains in peak working condition. The modular design of key components like the knife molds simplifies replacement and sharpening procedures . Additionally, the machine’s robust build ensures reliability even under continuous operation, while safety features protect operators from hazards associated with high-pressure cutting equipment.

Environmental and Economic Advantages

The TW-530P contributes to sustainable manufacturing practices by minimizing material waste through precise cutting and molding. Clean cuts reduce scrap material, helping manufacturers lower raw material costs and environmental impact. The machine’s efficient operation also reduces energy consumption relative to less advanced cutting technologies, supporting eco-friendly production goals. Economically, the TW-530P’s long service life, low maintenance requirements, and high throughput capability provide excellent return on investment for businesses in footwear, automotive, packaging, textiles, and other sectors.

Customization and Integration Options

Understanding the diverse needs of manufacturing environments, the TW-530P can be customized to accommodate specific production requirements. Optional features include specialized knife molds tailored for unique product designs, automated feeding systems for coil or sheet materials, and integration with upstream and downstream production equipment for seamless workflow automation. Manufacturers can work closely with the TW-530P technical support team to develop custom solutions that enhance machine capabilities and align with specific operational goals.

In summary, the Shoe Machine Beam Press TW-530P is a highly versatile, robust, and precise industrial cutting and molding solution suitable for a wide range of materials and applications. Its advanced knife mold cutting system, adjustable pressure settings, multilayer processing capability, and user-friendly controls make it an indispensable tool in modern manufacturing processes. Whether processing footwear components, automotive interiors, textiles, packaging materials, or industrial abrasives, the TW-530P delivers consistent, high-quality results that boost production efficiency and reduce waste. Its durable construction and safety features ensure reliable, safe operation in demanding industrial environments. By integrating the TW-530P into production lines, manufacturers can enhance product quality, increase throughput, and achieve significant cost savings, making it a smart investment for companies focused on precision manufacturing and innovation.
