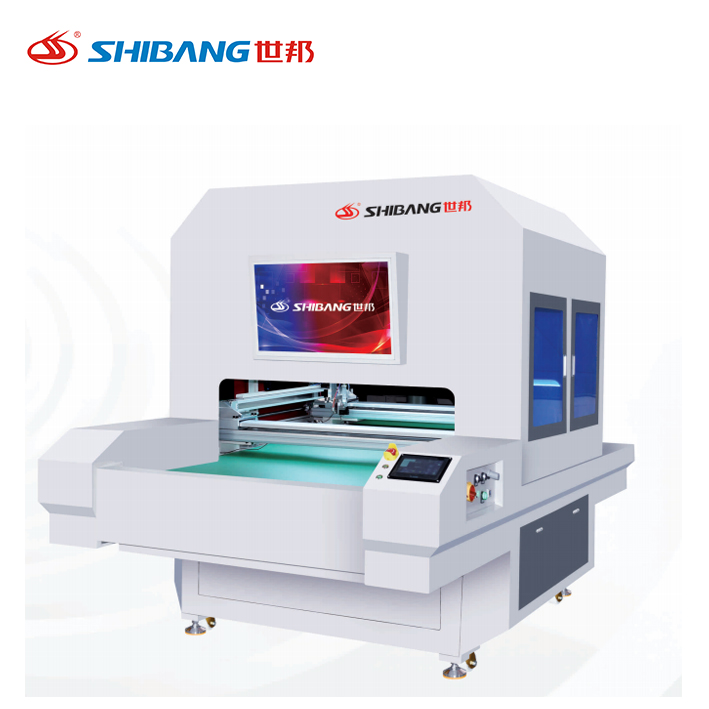

MACHINE NAME: AUTOMATIC INTELLIGENT LINE DRAWING MACHINE (DOUBLE HEAD SPRAY)

MODEL NO: SB-1208

BRAND: SHIBANG

FEATURES

• An intelligent equipment developed for drawing lines on uppers, leather, and fabrics, replacing manual line drawing and screen printing.
• The automatic intelligent line drawing machine has high working efficiency, saves labor costs, high line drawing accuracy, and is environmentally friendly and pollution-free.
• High-definition industrial cameras combined with automatic positioning are used to automatically identify material contours and precisely locate line drawings.
• With automatic feeding and unloading device, the image recognition system can locate automatically, quickly and accurately, and perform the marking task by placing the cut vamp in the processing area at will


TECHNICAL PARAMETER

• Maximum line width              : 1200x800
• Maximum profile                   : 3300(L)x1850(W)x2300(H)
• Total weight                          : 1.3 T
• Fast line drawing speed         : 1300mm/s
• Line drawing accuracy           :±0.15
• Rated power                         : 4KW
• Power supply                        : 220V
• Air Pressure                          : 0.6-0.8MPA
• Work environment                : 10-45°C/ 30%-65%
• Camera type                         : 2000
• Desktop computer                 : 6417-10700KF CPU, 32G,

The Shibang-SG-1208 is an advanced intelligent device specifically designed for spot marking and line drawing on shoe uppers, leather, fabric, and other materials. It replaces traditional manual spot marking and screen printing methods, providing a fully automated solution that boosts production efficiency and precision. This double-head spot drawing machine boasts high working efficiency, significantly reduces labor costs, and delivers superior marking accuracy with consistent repeatability. The device is engineered to be environmentally friendly, using clean technologies that produce no pollution. The system integrates high-definition industrial cameras with advanced automatic positioning capabilities. It can precisely recognize the contours of materials and patterns, ensuring accurate and consistent spot marking every time. Equipped with automatic feeding and unloading mechanisms, the operator only needs to place the cut material randomly within the processing area. The intelligent image recognition system quickly and accurately positions the material and performs the marking operation without manual intervention.

Advantages

Dual-Head Synchronous Operation The Shibang-SG-1208 features two spot marking heads working simultaneously, effectively doubling the output speed compared to single-head machines. This significantly reduces production cycle times and increases throughput.

Intelligent Image Recognition and Automatic Positioning Using industrial-grade HD cameras paired with cutting-edge AI image processing algorithms, the machine can automatically detect the edges and patterns of various materials. This ensures the spot markings are precisely placed according to the design specifications.

High Precision Marking The spot marking heads use either precise inkjet technology or mechanical marking tools, guaranteeing each dot is perfectly shaped and positioned. This precision eliminates errors such as misalignment or missing spots that can occur in manual processes.

Environmentally Friendly and Energy Efficient Unlike traditional screen printing, the Shibang-SG-1208 uses a pollution-free inkjet system, avoiding waste liquids and harmful emissions. This aligns with modern green manufacturing practices and reduces environmental impact.

Automated Material Handling and User-Friendly Interface Automatic feeding and unloading systems reduce the need for manual labor, enhancing overall production efficiency. The machine’s intuitive human-machine interface (HMI) supports multiple languages and offers easy operation, setup, and monitoring.

Technical Specifications

• Processing Area: 1200mm x 800mm

• Number of Spot Marking Heads: 2

• Marking Accuracy: ±0.1mm

• Camera Resolution: 5 Megapixels industrial HD cameras

• Maximum Spot Marking Speed: Up to 5000 points per minute per head

• Feeding Method: Fully automatic feeding and unloading

• Control System: PLC integrated with AI image recognition software

• Power Supply: 220V ±10%, 50/60Hz

• Machine Dimensions: 2200mm (L) x 1500mm (W) x 1600mm (H)

• Weight: Approx. 750kg

Applications

• Spot marking and line drawing on shoe uppers in footwear manufacturing

• Pattern marking on leather products

• Dot and pattern marking on fabrics in textile production

• Precise identification marking on flexible packaging materials

• Any industrial application requiring high-precision automatic spot marking

Operating Procedure

1. Material Placement The operator places the pre-cut shoe upper, leather, or fabric material on the worktable within the processing area in any orientation.

2. Image Capture and Recognition The machine automatically captures high-resolution images of the material using industrial cameras. Advanced AI algorithms process these images to identify edges and pattern locations.

3. Automatic Positioning Using the image data, the system calculates exact positions for spot markings or line drawing. This automatic positioning ensures that markings align perfectly with the design.

4. Dual-Head Spot Marking The two marking heads operate simultaneously, executing the spot marking task quickly and with high precision, ensuring every point is consistent and accurate.

5. Completion and Unloading Once marking is complete, the automatic unloading system removes the finished material, making the machine ready for the next batch without operator intervention.

Maintenance and Care

• Regularly clean camera lenses to maintain clear image capture.

• Ensure spot marking heads are free from clogging; clean nozzles periodically.

• Lubricate mechanical parts as recommended to prevent wear.

• Update software periodically to keep the AI recognition algorithms up to date.

• Perform routine inspections and preventive maintenance as per the manufacturer’s guidelines.

Customer Feedback

“Since installing the Shibang-SG-1208, our production efficiency has increased by over 50%. The marking precision is outstanding, and our rework rates have drastically reduced.”

“The automated feeding and unloading system makes operation straightforward and reduces labor costs significantly.”

“The eco-friendly inkjet marking system aligns perfectly with our company’s green manufacturing goals and has been very well received by our customers.”

The Shibang-SG-1208 Double-Head Spot Drawing Machine combines intelligent automatic positioning with high-precision dual-head marking technology and eco-friendly design. It is the ideal equipment for shoe uppers, leather, and fabric manufacturers seeking to improve productivity, accuracy, and environmental responsibility. By significantly reducing labor costs and environmental impact while enhancing marking quality, this machine is a critical component for modern, smart manufacturing lines.

Expanded Details

Comparison to Traditional Methods

Traditional manual spot marking and screen printing methods are labor-intensive, inconsistent, and prone to errors such as misalignment and poor repeatability. Manual marking requires skilled operators and cannot match the speed and precision of automated systems. Screen printing involves multiple setup steps, costly consumables, and generates chemical waste.

The Shibang-SG-1208 automates all marking tasks, eliminating human error, increasing speed, and reducing waste. This leads to consistent high-quality markings, faster turnaround times, and lower production costs.

Integration with Production Lines

The machine is designed for seamless integration into existing manufacturing lines. Its automatic feeding and unloading system can be synchronized with upstream cutting and downstream finishing equipment, creating a continuous, automated production flow. The intuitive control system allows easy programming of marking patterns, making it adaptable for different designs and materials without downtime.

Software Capabilities

The embedded AI image recognition software supports custom pattern recognition, contour detection, and defect detection. Operators can upload digital designs, and the software will automatically translate them into marking paths optimized for speed and accuracy. The system logs production data for quality control and traceability.

Troubleshooting and Support

The Shibang-SG-1208 comes with detailed troubleshooting guides and remote technical support. Common issues such as camera calibration, nozzle clogging, or software errors can be quickly diagnosed and resolved. Preventive maintenance schedules and replacement part kits are provided to maximize machine uptime.

Environmental and Safety Compliance

The machine uses water-based, non-toxic inks and operates under strict environmental standards. Safety features include emergency stop buttons, safety interlocks, and protective covers, ensuring operator safety throughout the production process.
