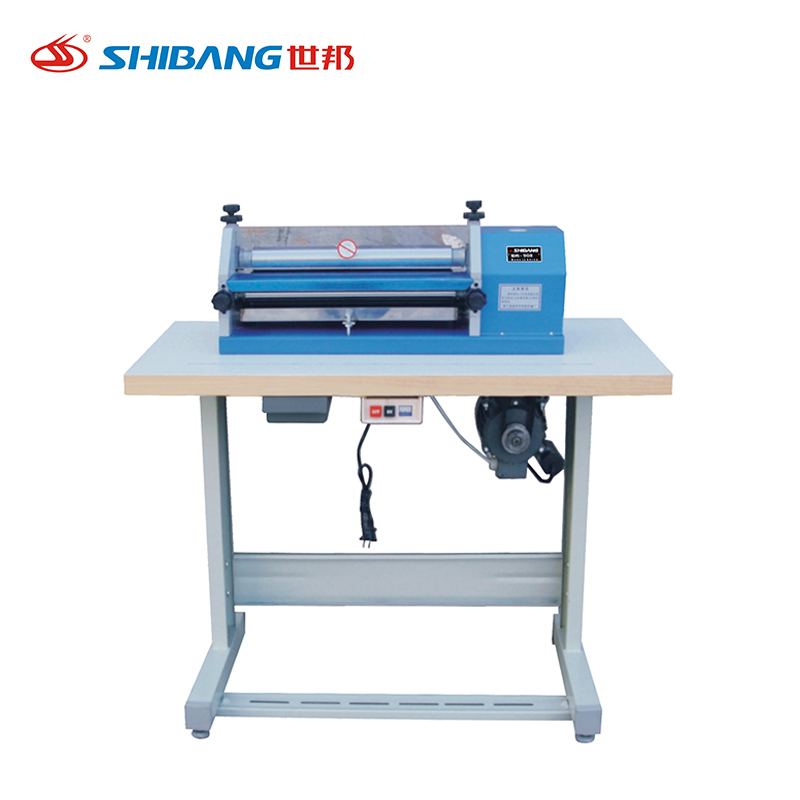

MACHINE NAME: WHITE GLUE DOUBLE HEAD GLUING MACHINE

MODEL NO: SB-908

BRAND: SHIBANG

FEATURES

• The series of machine are suitable for gluing sheet materials of 0.1-15mm thickness with various water soluble glues. They are ideal equipment's for gluing paper, leather. trademark, etc.

TECHNICAL PARAMETER

]The Shibang-908 White Glue Double Head Machine is a sophisticated adhesive dispensing solution designed for industries requiring high precision and efficiency in glue application. Engineered to deliver consistent and reliable bonding performance, this machine is particularly popular in woodworking, furniture manufacturing, packaging, textile production, and bookbinding sectors. The double-head design allows simultaneous glue dispensing on two lines, enhancing productivity and ensuring uniform adhesion.In this detailed description, we will delve deep into the Shibang-908’s features, construction, technical specifications, benefits, applications, operational guidelines, and maintenance to provide a comprehensive understanding of this essential industrial equipment.

Product Overview

Purpose and Functionality

The Shibang-908 is designed to automate the white glue application process, reducing manual labor while improving precision and consistency. The double-head configuration enables it to apply glue on two different surfaces or areas simultaneously, which significantly boosts efficiency in production lines.

Key Features

• Double Head Design: Two adhesive dispensing nozzles operate concurrently for faster processing.

• Precision Glue Application: Adjustable glue flow ensures optimal adhesive quantity is dispensed, minimizing waste.

• Compact Desktop Unit: Space-saving design suitable for small to medium-sized workshops.

• User-Friendly Interface: Simple controls for easy operation by personnel with minimal training.

• Durable Construction: Made from high-quality materials to withstand industrial environments.

• Adjustable Parameters: Glue temperature, pressure, and dispensing speed can be tailored to specific material requirements.

• Automatic Glue Feeding System: Ensures consistent glue supply for uninterrupted operation.

• Energy Efficient: Optimized motor and heating systems reduce power consumption.

• Easy Maintenance: Modular parts allow quick disassembly for cleaning and servicing.

Technical Specifications

• Model: Shibang-908

• Type: White Glue Double Head Dispenser

• Glue Type: Polyvinyl acetate (PVA) white glue or compatible adhesives

• Dispensing Heads: 2 (Double Head)

• Glue Supply System: Automatic feeding pump

• Glue Temperature Range: 20°C to 80°C (adjustable)

• Dispensing Speed: Up to 20 meters per minute (depending on application)

• Glue Volume Control: Adjustable (0-20 ml per stroke)

• Power Supply: 220V / 50Hz (customizable)

• Power Consumption: Approx. 600W

• Machine Dimensions: 800 mm (L) × 400 mm (W) × 500 mm (H)

• Weight: Approximately 45 kg

• Material: Stainless steel and industrial-grade plastics

• Control Type: Digital control panel with LED display

• Safety Features: Emergency stop button, overheat protection, glue leakage detection

Applications

Woodworking Industry

The Shibang-908 is widely used in woodworking for furniture assembly and panel lamination. The precise glue application prevents excess glue spills, reducing clean-up time and material costs.

Packaging Industry

For carton sealing and packaging assembly, the double-head machine accelerates production by gluing multiple sealing points simultaneously, ensuring strong and durable bonds.

Bookbinding

In bookbinding, this machine offers uniform glue spread across spine or cover joints, maintaining high quality in finished products with minimized adhesive waste.

Textile and Leather Industry

It helps in bonding fabric layers or leather parts, where consistent glue application is crucial for durability and aesthetics.

Other Industries

This machine can also be adapted for use in crafts, paper product assembly, and light industrial manufacturing processes requiring efficient adhesive application.

Working Principle and Operation

Glue Feeding and Heating

White glue is fed into the machine’s reservoir through an automatic pump. It is then heated to the preset temperature to optimize viscosity for smooth dispensing.

Dispensing Mechanism

The double dispensing heads release glue simultaneously through precision nozzles. The amount and flow rate can be adjusted depending on the material type and thickness.

Control Panel

Operators set parameters such as glue temperature, dispensing volume, and speed using the intuitive digital control panel, which also displays real-time operating data.

Safety and Monitoring

The machine continuously monitors temperature and glue flow, with safety features that halt operation in case of overheating or glue leakage.

Advantages and Benefits

Increased Productivity

By applying glue on two lines at once, the Shibang-908 nearly doubles the throughput compared to single-head machines.

Consistent Quality

Precision controls ensure even glue distribution, enhancing the strength and appearance of finished products.

Cost Efficiency

Reduced glue waste and minimized manual labor lead to significant savings over time.

User-Friendly

Simple controls and easy maintenance reduce downtime and training costs.

Versatility

Suitable for multiple adhesive types and industries, making it a flexible asset for diverse manufacturing needs.

Maintenance and Troubleshooting

Regular Cleaning

To prevent glue clogging, daily cleaning of dispensing nozzles and glue reservoirs is recommended using appropriate solvents.

Lubrication

Moving parts should be lubricated monthly to maintain smooth operation.

Inspection

Regular inspection of electrical connections, pumps, and sensors ensures reliable performance.

Troubleshooting Common Issues

• Glue Leakage: Check seals and replace worn gaskets.

• Inconsistent Glue Flow: Clean nozzles and verify pump operation.

• Overheating: Inspect heating elements and temperature sensors.

Installation and Setup

Site Requirements

Place the machine on a stable, level surface with access to power supply and ventilation.

Initial Setup

Connect the glue supply, power, and configure control settings as per material specifications.

Training

Operators should be trained on machine operation, safety protocols, and basic maintenance.

Comparison with Other Models

Compared to single-head or manual glue dispensers, the Shibang-908 offers:

• Higher output with double heads

• Improved glue consistency

• Automated controls reducing human error

• Enhanced safety features

Customer Testimonials and Case Studies

Furniture Manufacturer

A leading furniture company reported a 35% increase in production speed and a 20% reduction in glue consumption after adopting the Shibang-908.

Packaging Facility

A carton packaging plant noted improved sealing quality and less rework due to precise glue application from the double heads.The Shibang-908 White Glue Double Head Machine stands out as a reliable, efficient, and user-friendly solution for adhesive application across various industries. Its advanced features and robust design offer manufacturers a competitive edge by improving production speed, ensuring consistent quality, and reducing costs.Whether for woodworking, packaging, textiles, or bookbinding, this machine is engineered to meet the demanding needs of modern production environments with ease and precision.
