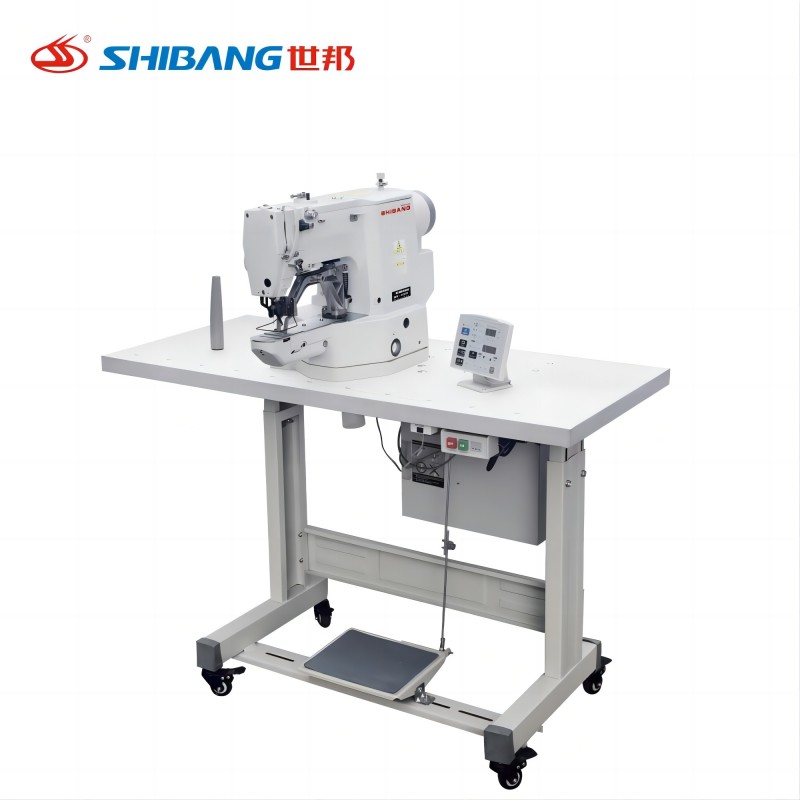

MACHINE NAME: COMPUTERIZED AUTOMATIC BARTACK SEWING MACHINE

MODEL NO: SB-436DX/430D

BRAND: SHIBANG

FEATURES

• Direct drive servo motor, Higher productivity, Excellent seam quality;
• With its 60mm [length] by 90mm (width) sewing area, The machine can sew many different shapes of bar-tacks;
• Already input 100 types designs, and Also can make designs by self;
• Needle and the take up level employs an automatic oil supply system, avoids
  pollution of the sewing material;
• With upper and lower free presser foot, Sewing position is easy to get.

TECHNICAL PARAMETER

1. Stitch type                : Single-needle flat seam
2. Max Sewing machine  : 2800rpm/3200rpm
3. Sewing area              : 60x90mm/40x30mm
4. stitch length             : 0.05-12.7mm/0.1-12.7mm
5. Needle Size              : DPx17   18-22#
6. Press foot height      : 30mm
7. Motor                      : 500W/550W
8. Power                      : 220V
9. Air pressure             : 0.5Mpa-1.8L/mm-----0.5Mpa-1.7L/min

The Shibang 436DX / 430D series represents the pinnacle of innovation in industrial sewing technology. Engineered for precision and efficiency, these direct drive bar tacking machines are indispensable in high-demand manufacturing environments. Whether it's reinforcing pocket corners, belt loops, or buttonholes, the 436DX / 430D ensures consistent, high-quality results.

Key Features

High-Speed Performance

• Maximum Sewing Speed: Up to 3,200 stitches per minute, facilitating rapid production without compromising stitch quality.

Direct Drive Motor

• Energy Efficiency: The direct drive system reduces energy consumption by approximately 35% compared to traditional belt-driven motors.

• Low Noise and Vibration: Enhanced motor design minimizes operational noise and vibration, creating a more comfortable working environment.

Advanced Stitching Capabilities

• Stitch Length: Adjustable from 0.05 mm to 12.7 mm, accommodating a wide range of sewing requirements.

• Sewing Area: Offers a 40 mm x 30 mm sewing area, suitable for various applications.

Programmable Control System

• Pattern Memory: Stores up to 99 different patterns, allowing for quick selection and seamless transitions between designs.

• USB Connectivity: Facilitates easy pattern uploads and updates via USB ports.

User-Friendly Interface

• LCD Touchscreen: Intuitive interface for easy operation and monitoring.

• Adjustable Presser Foot: Lifts to 17 mm, accommodating various material thicknesses.

Applications

The versatility of the Shibang 436DX / 430D makes it ideal for:

• Garment Manufacturing: Reinforcing stress points on garments such as pockets, belt loops, and buttonholes.

• Leather Goods Production: Sewing through thick leather materials for products like belts, bags, and wallets.

• Automotive Upholstery: Creating durable seams in automotive interiors.

• Safety Equipment: Manufacturing high-strength seams in safety gear and equipment.

Technical Specifications

Advantages

• Enhanced Productivity: High-speed operation reduces cycle times, increasing overall output.

• Cost Efficiency: Lower energy consumption and reduced maintenance costs contribute to long-term savings.

• Consistent Quality: Advanced control systems ensure uniform stitch quality across all products.

• Adaptability: Wide range of applications across different industries.

Maintenance and Support

To ensure optimal performance:

• Regular Cleaning: Keep the machine free from dust and debris.

• Lubrication: Apply recommended lubricants to moving parts as per the manufacturer's guidelines.

• Software Updates: Periodically update the machine's firmware to access new features and improvements.

• Technical Support: Access to a dedicated support team for troubleshooting and assistance.

The Shibang 436DX / 430D High-Speed Direct Drive Bar Tacking Sewing Machine stands as a testament to Shibang's commitment to innovation and quality. Its combination of speed, precision, and efficiency makes it an invaluable asset for manufacturers seeking to enhance their production capabilities.
