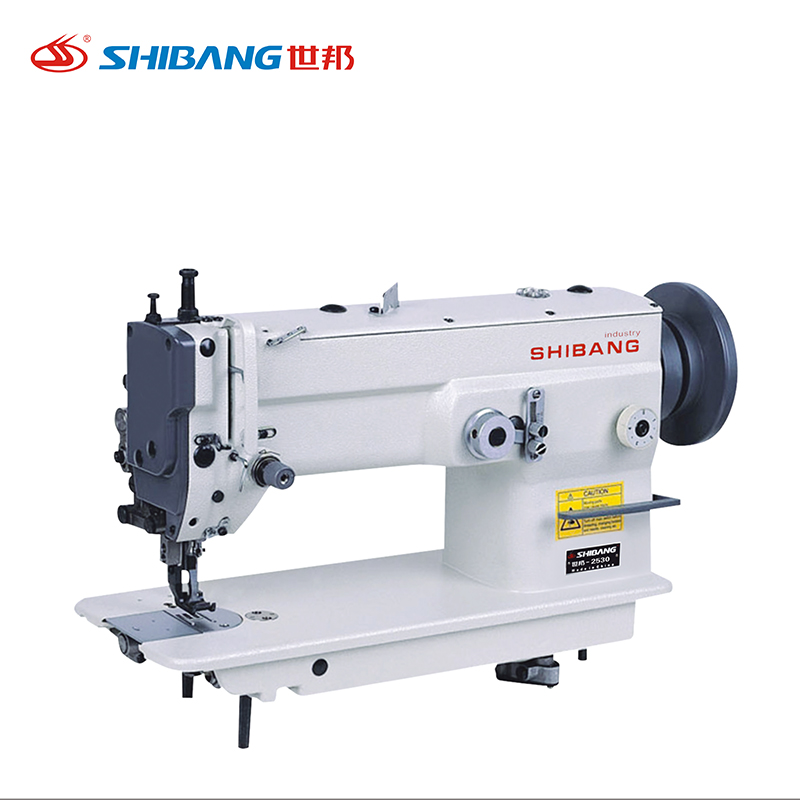

Synchronous Herringbone Stitching Machine Shibang-2530D/2533D/2534D

In today’s footwear manufacturing industry, efficiency, precision, and versatility are paramount. The Shibang-2530D / 2533D / 2534D lasting machines series stands at the forefront of technological innovation, designed to meet these very demands. Engineered to provide exceptional performance across a broad spectrum of shoe types and production scales, this series incorporates advanced mechanical and electronic systems, delivering outstanding lasting quality while optimizing operational efficiency and cost-effectiveness. This series builds upon the core strengths of traditional lasting machines but introduces cutting-edge features such as multi-axis servo-controlled adhesive application, innovative glue management technology, and full digital intelligence integration. These improvements are specifically aimed at overcoming the common challenges faced in the lasting process, including adhesive waste, time-consuming shoe type changeovers, labor intensity, and production consistency.

Innovative Adhesive System without Glue Tray

One of the hallmark features of the Shibang-2530D / 2533D / 2534D series is its revolutionary no-glue tray adhesive system. Unlike conventional lasting machines that rely on glue trays for adhesive feeding, which often result in frequent glue replacement, overflow, spillage, and cleaning downtime, the Shibang series employs a sophisticated multi-axis servo adhesive pen feeding method.

This system precisely controls the application of glue via a servo-driven adhesive pen that follows a preprogrammed, highly accurate trajectory on the shoe sole and upper. By eliminating the glue tray, the machine effectively:

• Reduces glue overflow and dripping: This prevents adhesive waste and contamination, maintaining a cleaner work environment and saving adhesive costs.

• Improves bonding quality: The controlled application ensures consistent glue thickness and placement, leading to stronger and neater adhesion, particularly important for challenging shoe designs such as pointed-toe women’s shoes and soft or thin midsoles.

• Simplifies maintenance: Without glue trays, the machine requires less frequent cleaning and glue replacement, reducing downtime and labor requirements.

This system embodies a significant technological advancement that not only enhances the lasting quality but also streamlines the entire production workflow, empowering manufacturers to operate at peak efficiency.

Servo-Controlled Adhesive Feeding for Precision and Efficiency

The adhesive feeding system on the Shibang series is driven by advanced five-axis servo motors, which provide exceptional control and flexibility. The servo system enables the adhesive pen to follow a precisely mapped path, adapting to the contours and specific adhesive needs of various shoe models.

Key benefits of this servo-driven adhesive feeding include:

• Perfect lasting effect on diverse shoe types: Whether handling the narrow, angular profiles of pointed-toe women’s shoes or the soft, delicate structure of midsoles, the servo adhesive system ensures uniform and adequate glue coverage without excess.

• Minimized adhesive waste: The precision trajectory reduces overflow and dripping common with traditional glue plates, decreasing material waste and associated costs.

• Faster changeover between shoe models: The servo system’s flexibility allows rapid reprogramming and adjustment for different shoe shapes and sizes without mechanical modifications.

• Enhanced durability of bonding: The consistent adhesive application strengthens the bond between shoe components, reducing defects and improving product longevity.

This combination of precision and adaptability makes the Shibang series a versatile solution that supports a wide range of footwear production needs with minimal manual intervention.

Time-Saving Design for Increased Production Efficiency

Production speed and uptime are crucial metrics for any manufacturing facility. The Shibang-2530D / 2533D / 2534D series features a design specifically aimed at maximizing uptime and throughput.

• No glue tray design for fast changeover: By eliminating glue trays, the machine bypasses the usual glue tray replacement and cleaning processes required when switching shoe types, substantially reducing setup times.

• Digital memory of shoe types: The machine can store detailed settings for multiple shoe models, including adhesive path, pressure settings, and timing sequences. This allows operators to switch models by simply selecting the shoe type from the interface, further accelerating changeover.

• User-friendly touch control panel: A modern touchscreen interface provides quick access to machine settings, status, and troubleshooting, making operations smoother and reducing operator errors.

• High production capacity: The machines are engineered for continuous operation, capable of producing up to approximately 1400 pairs per 8-hour shift, depending on the model and shoe complexity.

By minimizing changeover delays and optimizing continuous running, the Shibang series helps factories boost overall productivity without compromising quality.

Labor-Saving Features Reducing Operational Costs

Footwear lasting traditionally requires skilled labor and often involves repetitive, labor-intensive processes. The Shibang-2530D / 2533D / 2534D series alleviates these challenges through intelligent automation and ergonomic design:

• Automated adhesive application: The servo-driven pen applies glue precisely without manual intervention, reducing reliance on skilled workers for consistent adhesive placement.

• Reduced cleaning labor: Since there is no glue tray and overflow is minimized, operators spend less time cleaning glue residues, allowing staff to focus on higher-value tasks.

• Simplified operator training: The machine’s intuitive interface and memory functions reduce the skill barrier for operators, speeding up onboarding and enabling a more flexible workforce deployment.

• Ergonomic machine layout: Controls and operational components are positioned for ease of use, minimizing operator fatigue and improving shift productivity.

Together, these features contribute to significant labor cost savings while maintaining high quality in the lasting process.

Cost-Effective Operation through Material and Energy Efficiency

The Shibang lasting machines are designed to deliver long-term cost advantages for manufacturers by optimizing resource use and maintenance:

• Adhesive conservation: The servo-controlled glue application significantly lowers adhesive consumption by eliminating drips and excess use, directly reducing material costs.

• No glue tray maintenance: Avoiding glue trays removes recurring costs related to their upkeep and replacement.

• Durable build and components: The machines utilize high-quality materials and precision engineering, minimizing downtime and repair expenses.

• Energy-efficient motors and heaters: Advanced servo motors and optimized heating elements reduce electricity consumption, lowering operating expenses.

• Large oil capacity and robust hydraulic system: This ensures stable pressure and reduces the frequency of maintenance, improving overall machine availability.

These combined savings enhance the manufacturer’s bottom line by reducing both direct costs (adhesive, energy) and indirect costs (labor, maintenance).

Intelligent Operation and Industry 4.0 Ready

To meet the evolving demands of modern manufacturing, the Shibang-2530D / 2533D / 2534D machines integrate digital intelligence and networking capabilities:

• Full memory of shoe settings: Each shoe type’s adhesive paths, pressure parameters, and operational sequences are saved in the system for easy recall.

• Optional IoT networking: The machines can be connected to factory networks to enable remote monitoring, data collection, and predictive maintenance through Internet of Things (IoT) technology.

• Real-time process monitoring: Sensors and feedback mechanisms monitor adhesive flow, pressure, and machine status, allowing immediate adjustments to maintain quality.

• Data logging and traceability: Production data can be recorded and exported for quality assurance, regulatory compliance, and continuous improvement.

• Remote diagnostics and updates: IoT connectivity supports remote technical support, firmware updates, and troubleshooting, minimizing downtime and improving support efficiency.

This intelligent integration positions the Shibang series as a future-proof investment aligned with the smart factory and Industry 4.0 paradigms.

Robust Mechanical and Hydraulic System

The mechanical design and hydraulic system are core to the Shibang lasting machines’ reliable operation and lasting precision.

• Powerful servo motors: Each model is equipped with servo motors delivering sufficient power and precise control to handle the full range of lasting operations.

• Heating system: Integrated heating elements maintain optimal adhesive temperature (around 2kW heating power), ensuring consistent glue viscosity and bonding quality.

• High oil pressure: The hydraulic system provides a steady clamping force, typically around 50kg/cm², crucial for secure shoe upper fixation during lasting.

• Oil capacity: Generous oil reservoirs (~136 liters or more) guarantee smooth hydraulic function over extended production periods with minimal refilling.

• Pincers configuration: Multiple pincers (often 9 or more) securely grip shoe uppers, enabling accurate shaping and lasting without slippage.

This mechanical and hydraulic synergy ensures durable, stable, and precise operations essential for high-volume production lines.

Ergonomic and Safety Considerations

Operator safety and comfort are integral to the design of the Shibang-2530D / 2533D / 2534D machines:

• Ergonomically arranged controls: The interface and manual adjustments are positioned for ease of access, reducing operator strain.

• Protective guards and covers: Safety shields protect operators from moving parts and heated areas, complying with industrial safety standards.

• Emergency stop functions: Multiple emergency stop buttons provide immediate shutdown options to prevent accidents.

• Low noise and vibration: Engineered to minimize operational noise and vibration, creating a safer and more comfortable working environment.

These design elements ensure the machine operates safely, protecting operators and reducing workplace injuries.

Versatility for a Wide Range of Shoe Styles and Materials

The Shibang series is engineered to handle a broad variety of footwear designs, materials, and sole structures:

• Pointed-toe shoes: The precise adhesive control makes the machines ideal for narrow, sharply shaped toe designs requiring exact glue application.

• Soft midsoles: The gentle but firm adhesive application supports soft midsole materials without deformation or damage.

• Thin soles: Accurate dosing ensures thin sole materials are bonded without excess glue buildup.

• Diverse materials compatibility: Works efficiently with genuine leather, synthetic leather, textiles, foam, rubber, and composite sole materials.

• Sports, casual, and formal shoes: Adaptable to multiple shoe categories, supporting versatile production lines and wide product ranges.

This versatility ensures manufacturers can meet diverse market needs with a single, flexible machine platform.

Environmental and Sustainability Features

In alignment with global efforts toward sustainable manufacturing, the Shibang lasting machines incorporate eco-friendly design principles:

• Reduced adhesive waste: Precision glue application reduces chemical usage and waste generation.

• Energy-saving motors and heaters: Use of efficient servo motors and heating elements lowers energy consumption.

• Cleaner production environment: Glue tray elimination and precise glue control reduce adhesive spills and airborne contaminants.

• Long machine lifespan: Durable construction reduces replacement frequency, supporting sustainable resource use.

These features contribute to greener production processes, helping manufacturers meet environmental regulations and corporate social responsibility goals.

Technical Specifications Overview

While individual model specifications may vary slightly, the following details provide a general overview of the Shibang-2530D / 2533D / 2534D series capabilities:

• Glue System: Servo-driven adhesive pen, trayless design

• Servo Control Axes: 5-axis precision control

• Glue Heating Power: 2.0 kW

• Hydraulic Pressure: ~50kg/cm²

• Oil Tank Capacity: Approx. 136L

• Pincer Units: 9 or more, fully adjustable

• Daily Capacity: Up to 1400 pairs/8h, depending on style

• Power Supply: 380V, 3-phase

• Control Interface: Touchscreen, digital parameter memory

• Machine Dimensions (approx.): 1800mm x 1200mm x 1800mm

• Net Weight: Around 1800 kg

The Shibang-2530D / 2533D / 2534D series represents a new generation of intelligent, efficient, and precise lasting machines for modern footwear manufacturing. With its advanced servo adhesive system, trayless glue application, time- and labor-saving features, and intelligent controls, it offers unmatched performance and ROI for shoe manufacturers focused on quality, scalability, and sustainability.
