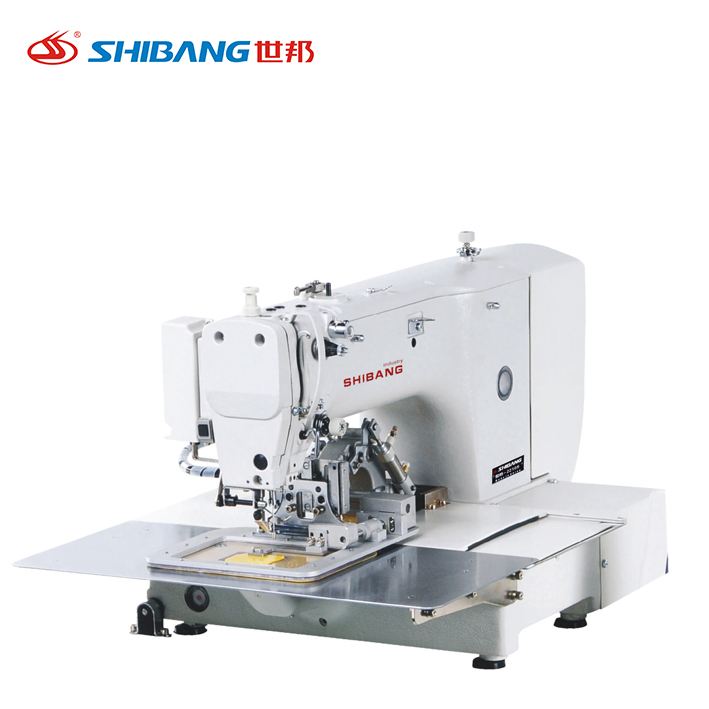

MACHINE NAME: AUTOMATIC PATTERN SEWING MACHINE

MODEL NO: SB-2210S

BRAND: SHIBANG

FEATURES

• High speed sewing and exquisite lines, realized the world's fastest speed of sewing, and energy saving while achieved excellent sewing quality and production efficiency.
• Sewing completely according to stitching data.
• Raising amount of the presser foot can be adjusted easily by the operation board.
• High speed sewing, low power consumption, economical and practical.
• It uses the simple program editor PD-3000|options).

TECHNICAL PARAMETER

1. Stitch type                  : Single-needle flat seam
2. Max sewing machine    : 2700-3000RPM
3. Sewing area                : 220x100mm
4. Stitch Length              : 0.05-12.7mm
5. Needle Size                : DPx17/18-22#
6. Press Foot Height        : 30mm
7. Motor                         : 500W
8. Power                        : 220V
9. Air Pressure                : 0.5Mpa1.8L/min.

The SB-2210S Automatic Pattern Sewing Machine is an advanced, high-precision industrial solution designed for producing intricate stitch patterns with efficiency, consistency, and speed. It is a specialized machine built for manufacturers who require programmable sewing operations to execute complex designs with minimal manual intervention. Equipped with a large sewing area, computer-controlled precision, and an intelligent servo motor, the SB-2210S is ideal for stitching logos, decorative patterns, reinforcement seams, bar tacking, and custom designs on a wide range of materials. This state-of-the-art sewing equipment represents a leap forward in garment automation, giving production facilities the ability to execute intricate patterns repeatedly with millimeter-level accuracy. It significantly reduces operator fatigue, boosts output, and ensures consistent stitch quality across thousands of garments or parts. From footwear and apparel to automotive interiors and leather goods, the SB-2210S is engineered to meet the demands of modern high-speed production environments. Its programmable interface, robust construction, and large pattern field make it one of the most versatile and reliable pattern sewing machines available today.

Pattern Sewing Technology

Pattern sewing machines are designed to automate the process of stitching complex shapes and repeatable designs. Unlike traditional sewing machines that require manual guidance for stitch direction and pattern formation, a pattern sewing machine uses X and Y axis control to move the needle or the material precisely as per programmed coordinates. The SB-2210S takes this concept to the next level. It features computer numerical control (CNC) technology, enabling users to upload or design custom patterns, adjust stitch parameters, and automate the sewing of logos, reinforcement shapes, buttonholes, eyelets, and decorative designs. With its generous stitch area of 220 mm by 100 mm, this machine handles large designs and multiple application types with ease.

Key Features and Advantages

Large Pattern Sewing Area
With a maximum stitch field of 220 mm by 100 mm, the SB-2210S allows for the creation of extensive and complex patterns. This enables the stitching of large logos, reinforcement patches, and intricate decorations without the need for re-hooping or repositioning, saving time and preserving stitch accuracy.

High-Speed Operation
The SB-2210S supports a maximum sewing speed of up to 2800 stitches per minute, depending on the stitch length and complexity of the design. This high-speed capability makes it suitable for high-volume production while maintaining stitch accuracy and aesthetic consistency.

Precision Stepper and Servo Motor Control
The machine features a combination of stepper motors for X and Y axis movements and a servo motor for needle penetration, ensuring that every stitch lands exactly where intended. This ensures geometric precision in logos, characters, curved patterns, and overlapping lines.

Programmable Pattern Input
Users can upload custom stitch patterns using USB, direct computer connection, or via the machine’s built-in interface. The SB-2210S supports standard pattern file formats and offers internal memory to store multiple designs for quick retrieval and switching.

Touchscreen Control Interface
An intuitive touchscreen control panel enables operators to manage settings, preview patterns, adjust stitch parameters, and monitor performance. The interface simplifies design selection, coordinates adjustments, and troubleshooting, reducing training time and increasing productivity.

Automatic Thread Trimming and Backtack
The machine features automatic thread trimming at the end of each pattern cycle, improving efficiency and producing clean results without manual snipping. Programmable backtack settings reinforce at the beginning and end of each pattern for added durability.

Clamp-Style Fabric Holding System
To ensure precision during sewing, the SB-2210S uses a clamp system to hold fabric or materials securely in place. This prevents slippage and ensures the accuracy of each stitch, even on multi-layered or slippery materials.

Adjustable Stitch Length and Density
Operators can modify stitch length, density, and tension to suit various fabric types, pattern requirements, and aesthetic preferences. This makes the machine highly adaptable across multiple materials and design styles.

Quiet and Smooth Operation
The combination of modern motor systems and precise mechanical engineering ensures quiet operation with low vibration. This contributes to a more comfortable working environment and improves concentration during detailed production.

Safety and Durability
Built with industrial-grade components, the SB-2210S is engineered to run for extended hours without degradation in performance. Safety mechanisms such as emergency stop, overcurrent protection, and needle break detection help prevent damage and ensure user safety.

Applications Across Industries

The SB-2210S is engineered to accommodate the diverse pattern sewing needs of several industries, including:

• Apparel Manufacturing: Used for sewing decorative patterns, logos, emblems, size labels, and structural reinforcement on jeans, jackets, workwear, and sportswear.

• Footwear Production: Ideal for stitching brand logos, reinforcement stitches, or functional designs on shoe uppers, straps, and insoles.

• Bag and Accessory Manufacturing: Suitable for embroidery-style patterns, bar tacking, and stylized reinforcement on handbags, backpacks, straps, wallets, and belts.

• Automotive Upholstery: Used to stitch custom designs, branding elements, or strong reinforcements in car seats, headrests, mats, and door panels.

• Military and Tactical Gear: Essential for sewing strong seam reinforcements and patterns on gear like tactical vests, belts, and durable field apparel.

• Home Furnishings: Decorative sewing on cushions, throws, curtains, and upholstery.

• Leather Goods: Can handle synthetic and natural leather to stitch monograms, emblems, or structural details with precision.

Operational Workflow

Operating the SB-2210S is a streamlined process thanks to its digital controls and intelligent automation:

1. Pattern Setup: Users upload or select a pattern from internal memory. Parameters like stitch length, speed, and tension are configured using the touchscreen panel.

2. Material Clamping: The fabric or product is placed onto the work area and secured using the automatic clamping system. This ensures no movement occurs during stitching.

3. Preview and Start: Operators can preview the pattern layout on the control screen before beginning. Once confirmed, sewing is initiated with a foot pedal or button press.

4. Automatic Execution: The machine follows the programmed stitch path, completing the pattern with precise needlework. Automatic thread trimming and backtacking are executed upon completion.

5. Inspection and Next Cycle: Finished products are removed, inspected for quality, and the machine is ready to repeat the process on the next item with zero setup time.

Engineering and Technical Excellence

The SB-2210S offers reliable long-term operation due to its quality engineering and attention to detail in each component:

• Direct Drive System: Reduces power loss and improves needle responsiveness while extending machine lifespan.

• Advanced Synchronization: X-Y motion and needle action are perfectly synchronized to ensure accurate pattern geometry.

• Automatic Lubrication: Critical components receive consistent lubrication, reducing friction and wear.

• Multiple Pattern Storage: The internal memory allows users to store a large number of sewing patterns for quick changes during batch processing.

• Modular Maintenance Design: Allows easy access to components for servicing, minimizing downtime and maintenance effort.

Customization and Expandability

The SB-2210S is flexible and supports several customization options for specialized applications:

• Pattern Design Software: Compatible with most industry-standard sewing design software, allowing custom pattern creation with drag-and-drop tools or CAD-style controls.

• Special Clamps and Fixtures: Optional accessories are available for unique product types such as tubular materials, thick layers, or curved items.

• Needle Types and Sizes: Supports a variety of needles suited for different thread types, materials, and pattern complexities.

• Thread Types: Compatible with cotton, polyester, nylon, and bonded threads for decorative or structural stitching.

• Label and Barcode Integration: Patterns can include barcode stitching or identification elements for inventory and branding purposes.

Maintenance and Operator Care

Daily maintenance of the SB-2210S is easy and quick, ensuring maximum uptime:

• Routine Cleaning: Dust and thread fragments are cleared from the needle bar, bobbin area, and feed path to prevent malfunction.

• Oil Refill and Monitoring: Built-in oil reservoirs notify users when levels are low. Semi-automatic lubrication ensures coverage.

• Diagnostics: The control panel provides error messages and maintenance alerts, making troubleshooting straightforward.

• Spare Parts Availability: Supported by a wide supply network and compatible with universal industrial sewing parts.

• Training and Support: Manufacturers provide documentation, video guides, and remote support for setup, troubleshooting, and upgrades.

Safety and Ergonomics

The SB-2210S includes safety enhancements to protect both the operator and the machine:

• Emergency Stop Button: Instantly halts operation in case of emergency or error.

• Needle Break Detection: Automatically pauses operation when breakage is detected, preventing pattern misalignment or machine damage.

• Low Noise and Low Vibration: Engineered for silent operation even at maximum speed, reducing workplace noise and operator fatigue.

• Comfort-Oriented Controls: The height-adjustable table and easy-reach control panel reduce physical strain and support high operator comfort.

Industry Testimonials

Operators and production managers have shared consistent feedback about the SB-2210S, praising:

• Increased Productivity: Fast cycle times and zero setup between pattern changes improve production throughput.

• Pattern Accuracy: Precision movements eliminate inconsistency across product batches.

• Material Versatility: Easily transitions from denim to leather to synthetics with minimal adjustments.

• Operator Ease-of-Use: Intuitive interface shortens training time and reduces human error.

• Durability in Heavy Use: Continues delivering high performance even under 24/7 production cycles.

Comparison With Traditional Sewing Methods

Compared to manual or mechanical pattern sewing, the SB-2210S offers:

• Faster Production: Automated execution outpaces manual sewing exponentially.

• Higher Accuracy: Patterns are identical from the first to the tenth thousandth item.

• Less Waste: Precise starts and stops mean less wasted material and fewer rejected products.

• Versatile Design Options: Allows experimentation with creative patterns, branding, and designs.

• Labor Cost Savings: Fewer skilled workers are needed to achieve professional-level results.

• Digital Workflow Integration: Connects with ERP or CAD systems for streamlined production.

The SB-2210S Automatic Pattern Sewing Machine is a powerhouse of automation, precision, and productivity. Built for modern manufacturing, it empowers producers with the ability to execute complex, beautiful, and structurally sound stitch patterns on a wide variety of materials. Whether you need decorative stitching for fashion or reinforced seams for function, this machine delivers consistency, speed, and excellence. With its programmable interface, large stitch area, robust engineering, and quiet operation, the SB-2210S is the perfect choice for operations seeking to scale production, improve quality, and reduce operational costs. It is a future-proof investment that supports innovation, branding, and manufacturing success in today’s competitive marketplace.
