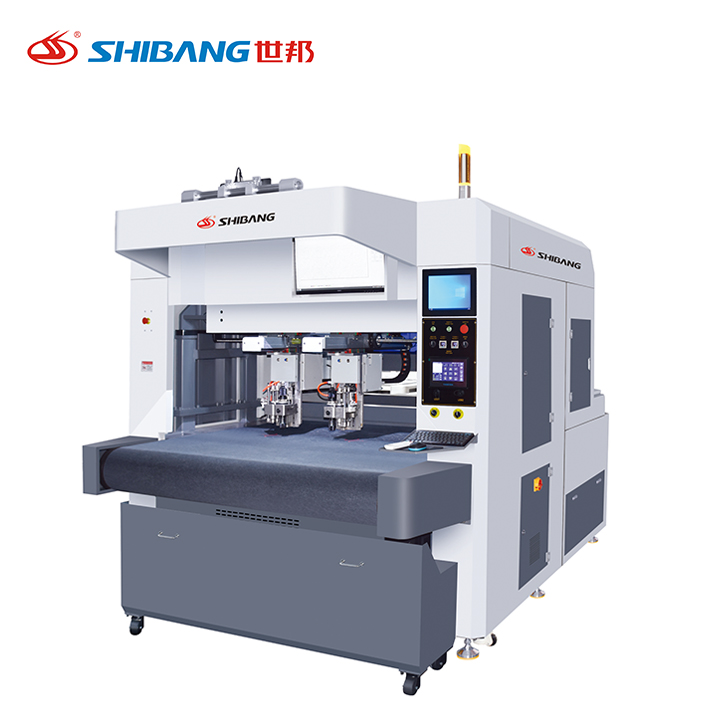

MACHINE NAME: VIBRATING KNIFE CUTTING MACHINE (DOUBLE-HEAD)

MODEL NO: SB-1670S

BRAND: SHIBANG

FEATURES

• Specially developed for small size cutting, it can cut multi-layer material [cutting thickness: 12-18mm], equipped with dual asynchronous and intelligent typesetting system to maximize material utilization. The combination of casting process and high precision screw motion system realizes high precision cutting.
• Applied to shoes/clothing accessories industry: TPU/PU, gasket, leather, rubber, gangboard, mesh, digital printing materials, middle plate, gloves/hats and other flexible materials digital cutting and punching.

TECHNICAL PARAMETER

1. Cutting Area                    : 1600x700mm
2. Machine Dimension          : L3000xW2300xH2100mm
3. Feeding Method               : Automatic Feeding
4. Air Pressure                     : 0.75-0.85Mpa
5. Cutting precision             : 0.1mm
6. Cutting Speed                 : 1000mm/S
7. Rated Voltage                 : AC220V-380V/50HZ
8. Dependent Power           : 7.5 KW
9. Weight                           : 2500Kg

The SB‑1670S Vibrating Knife Cutting Machine is an advanced, high-precision solution engineered for continuous, ultrafast cutting of soft and semi-rigid materials. Ideal for industries ranging from textiles and leather to foam, composites, and packaging, this machine combines innovative vibration-assisted cutting with automated handling to deliver ultra-clean edges across large formats. Designed to optimize throughput, reduce labor demands, and minimize material waste, the SB‑1670S stands as a cornerstone for manufacturers seeking both flexibility and production excellence.

Core Cutting Technology & Precision

At its core, the SB‑1670S utilizes a servo-driven vibrating knife system, where the blade oscillates at high frequencies to slice through materials with minimal friction and distortion. Unlike stationary blades, the vibrating knife glides effortlessly, significantly reducing resistance and avoiding burr formation or edge ragging. This results in consistently superior surfaces—essential for materials requiring clean, precise cuts, such as:

• Foam layers (EVA, PU)

• Soft leathers and textiles

• Composites or laminates

• Nonwoven fabrics and felts

The blade supports a wide range of thicknesses (typically up to 30 mm in a single pass), yet achieves tight radii down to a few millimeters. A smooth cutting action, coupled with the machine’s servo X–Y table, ensures pattern fidelity, especially across large panels.

Boost Productivity with Continuous Loading

The SB‑1670S is tailored for high-throughput manufacturing. With its rapid blade movement and wide travel (up to 1,600 mm by 700 mm), the machine keeps pace with multi-shift environments. The vacuum-down work table secures every material layer in place, acting as a stable base for extended cutting paths. Advanced features like multi-layer cutting capability and part nesting optimization maximize material usage and reduce idle times. Multiple part layouts can be processed continuously, while optional automatic material feeding systems enable true hands-off operation.

Intelligent Automation & CNC Controls

The SB‑1670S integrates full CNC capabilities and touch-screen interfaces. Operators can import CAD patterns (DXF, PLT, AI formats) and assign cutting parameters, blade frequency, speed, and depth, based on material. Enhanced functions like variable speed zones and micro-positioning accuracy ensure complex shapes are cut cleanly without damaging sensitive materials. For high-mix production, the machine offers template memory recall, ensuring repeatable quality across job changes. Optional IoT connectivity allows factory-wide monitoring and performance tracking for Industry 4.0 readiness.

Save Time with Speed & User-Centric Design

The SB‑1670S is built for swift job turnover. With easy alignment guides, automatic table vacuum control, and one-touch material loading, operators can start jobs in seconds. Built-in optimization tools help rearrange part layouts in real time, reducing setup delays and minimizing scrap. Its lightweight, vibration-reducing frame ensures swift acceleration and deceleration, drastically reducing cycle times, making it ideal for production lines needing frequent design shifts or prototype runs.

Save Labor Through Simplified Operation

Complex CNC systems often demand skilled operators, but the SB‑1670S is different. The user interface is intuitive, with graphical previews, job templates, diagnostic alerts, and safety interlocks. Even less experienced users can load material and run jobs with minimal training. A vibration-assisted blade also extends tool life, cutting down maintenance and blade changes. The system includes auto-calibration routines and motion reference resets, allowing the machine to self-check alignment in minutes without skilled intervention.

Save Costs via Efficiency & Material Optimization

Material and operational savings are built into the SB‑1670S’ DNA. Features contributing to cost reduction include:

• Part nesting algorithms that minimize waste

• Precise blade depth control prevents unnecessary material contact

• Integrated scrap collection system for cleaner workspaces

• Energy-efficient servo and vacuum systems for lower electricity usage

• Durable vibration blades with long life and easy replacement

These improvements compound across volume production, yielding significant savings in labor, consumables, and scrap.

Fully Intelligent with Memory & IoT Connectivity

The SB‑1670S is far from just a hardware tool—it’s a smart production node. It supports:

• Preset storage for cutting patterns

• Pattern cloning and editing directly on the touchscreen

• Job sequencing for automatic batch queues

• Remote monitoring via mobile or ERP interfaces

These features make it fit perfectly into modern production lines seeking data-driven efficiency.

Adapted for Complex and Soft Materials

Soft materials pose cut challenges, yet the SB‑1670S excels. The blade’s vibration frequency and amplitude are adjustable, ensuring clean cuts on delicate fabrics while providing deeper penetration for thicker foam or composites. Specialized blades further enhance performance when working with abrasive or coated materials.

Construction, Maintenance & Durability

Built on a reinforced steel chassis, the SB‑1670S is designed for years of operation. Linear guides are hardened and dust-sealed, while the vibration blade holder is independently dampened for consistent cutting. Maintenance tasks like blade changes, lubrication, or calibration are quick and tool-free, minimizing downtime. Environmental durability, wide temperature and humidity tolerances, plus standard safety protections- equips this machine for real-world factory environments.

Safety & Ergonomics

Operator safety is woven into the SB‑1670S:

• Light curtains around the cutting zone

• Emergency stop buttons within reach

• Vacuum power interlock that prevents activation on empty tables

• Low-noise vacuum and motor systems for operator comfort

Its low profile and easy access also ensure safer, faster blade and table access.

Industry Applications & Versatility

The SB‑1670S is ideal across sectors, including:

• Textile & Apparel: precision garment cutting

• Footwear: foam insole and upper cutting

• Leather goods: pattern skins for bags, wallets

• Automotive upholstery: foam, lining, carpet dies

• Packaging: inserts, custom foam trays

• Composite prototypes: CNC dieless cut materials

• Custom crafts & signage: precise graphical shapes

With its flexibility and CNC backend, material changeovers are swift, enabling mixed-product workflows or rapid prototyping.

Summary of Key Advantages

Why SB‑1670S is Your Ideal Cutting Solution

Whether driven by large-scale production, product development, or customization demands, the SB‑1670S delivers precision, speed, and versatility unmatched by conventional systems. It merges CNC flexibility with vibration-assisted edge quality, creating an automated, efficient, and future-ready cutting platform. For industries where cut quality, cycle time, and material cost are critical, like textiles, footwear, composite fabrication, and packaging, the SB‑1670S reduces waste, speeds production cycles, and empowers less-skilled operators to deliver premium results. Backed by robust industrial design and smart technology, it’s not just a machine, it’s a scalable asset built for tomorrow’s manufacturing standards.

In summary, the SB‑1670S Vibrating Knife Cutting Machine is crafted to optimize modern factory workflows:

• State-of-the-art vibrating knife technology

• High-speed CNC layout and nesting

• Efficient material control and multi-layer cutting

• User-friendly, low-skill operation

• Smart memory and IoT readiness

• Durable, low-maintenance construction

• Flexible compatibility across sectors

By combining these capabilities, the SB‑1670S empowers manufacturers to achieve unmatched quality, throughput, labor efficiency, and ROI. Let me know if you’d like marketing brochures, technical spec sheets, or product pages tailored from this overview.
