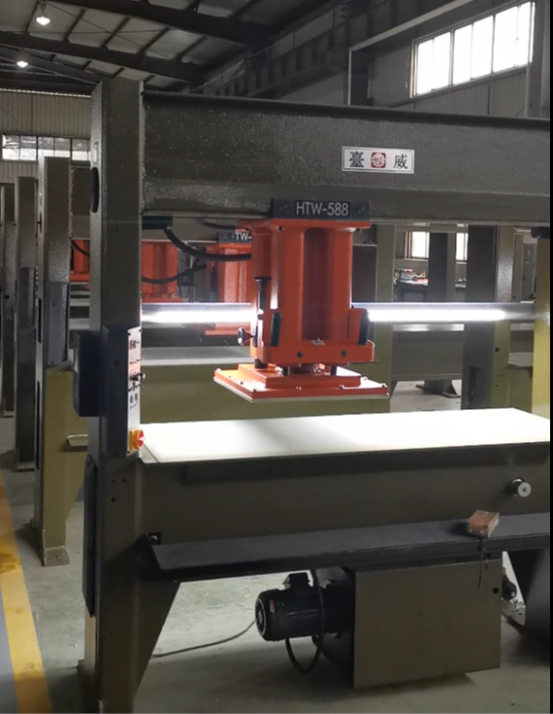

Roller Die Cutting Machine Traveling Head Press HTW-588/3

The HTW-588/3 Roller Die Cutting Machine with Traveling Head Press is a state-of-the-art hydraulic cutting solution designed for high-precision applications across various industries. This machine combines advanced technology with robust engineering to deliver exceptional performance, efficiency, and safety.

Key Features

 Pushbutton Controls with Time Interlock Synchronization

The HTW-588/3 is equipped with pushbutton controls that feature time interlock synchronization during the cutting phase. This design ensures positive safety for the operator by preventing unintended machine movements, thereby reducing the risk of accidents and enhancing overall operational safety.

 Exceptional Trolley Displacement Speed

One of the standout features of the HTW-588/3 is its exceptional trolley displacement speed. The machine's trolley moves swiftly and precisely, allowing for rapid material handling and increased productivity. This high-speed operation is particularly beneficial in high-demand production environments where efficiency is paramount.

 High Power Continuity

The HTW-588/3 is designed to provide continuous high cutting force, ensuring consistent and reliable performance throughout the cutting process. This high power continuity is crucial for achieving clean and precise cuts, even in challenging materials or complex die configurations.

 Low Energy Consumption

Despite its high performance, the HTW-588/3 is engineered to operate with low energy consumption. This energy efficiency translates to reduced operational costs and a lower environmental footprint, making the machine a cost-effective and sustainable choice for manufacturers.

 High Reliability with Minimal Maintenance

Built with durability in mind, the HTW-588/3 offers high reliability and requires minimal maintenance. Its robust construction and quality components ensure long-term operational efficiency, reducing downtime and maintenance costs.

Technical Specifications

• Model: HTW-588/3

• Cutting Force: 25 tons (245 kN)

• Stroke Length: Adjustable from 5 mm to 100 mm

• Trolley Size: 500 mm x 500 mm

• Working Area: 1600 mm x 500 mm

• Pump Motor Power: 2.2 kW

• Trolley Motor Power: 0.75 kW

• Cutting Speed: 50 mm/s

• Indexing Speed: 1.07 mm/s

• Dimensions (L x W x H): 1940 mm x 1400 mm x 2010 mm

• Net Weight: Approximately 1430 kg

Applications

The HTW-588/3 is versatile and can handle a variety of materials, including:

• Leather: Ideal for producing shoe uppers, gloves, and upholstery

• Rubber: Suitable for automotive seals and gaskets

• Plastic: Used in packaging and product components

• Textiles: Applicable in garment manufacturing and home furnishings

• Cardboard and Paperboard: For packaging and display materials

Its precision and versatility make it particularly suitable for producing intricate shapes and components in various industrial applications.

Advantages

• Enhanced Productivity: The rapid trolley displacement and high power continuity contribute to faster cycle times and increased output.

• Cost Efficiency: Low energy consumption and minimal maintenance requirements reduce operational costs.

• Safety: Pushbutton controls with time interlock synchronization ensure operator safety during the cutting process.

• Versatility: Ability to cut a wide range of materials makes the HTW-588/3 suitable for diverse industrial applications.

The HTW-588/3 Roller Die Cutting Machine with Traveling Head Press stands out as a reliable and efficient solution for industries requiring high-precision die-cutting capabilities. Its combination of advanced features, robust design, and versatility makes it an excellent choice for manufacturers looking to enhance their production processes.
