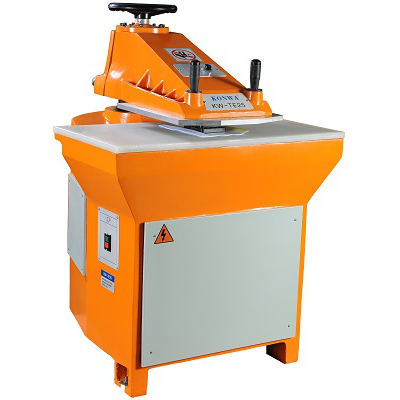

Hydraulic Arm Press Cutting Machine TW-528

The Hydraulic Swing Arm Cutting Machine TW-528 is a highly efficient and reliable solution designed for modern die cutting operations across multiple industries. With its intelligent automation, powerful hydraulic system, and user-friendly controls, the TW-528 redefines the standards of precision, safety, and productivity in die cutting machinery.Built to meet the evolving demands of manufacturers dealing with complex materials and varying die heights, this machine offers a perfect balance of cutting power and operational convenience. The innovative features integrated into the TW-528 allow operators to execute precise cutting tasks with minimal setup time, improved safety protocols, and enhanced material savings.

Key Features and Innovations

 Automatic Stroke End Setting for Variable Die Heights

A standout feature of the TW-528 is its automatic stroke end adjustment system. This system intelligently adapts the cutting stroke length to accommodate die cuts of different heights without requiring manual intervention.Traditionally, operators had to painstakingly adjust the minimum cutting spot manually every time the die or material thickness changed a process prone to errors and delays. The TW-528 eliminates this hassle by using an internal control system that dynamically adjusts the stroke end. This ensures the cutting press always applies the optimum pressure for each job, preserving the die and material while enhancing cutting accuracy.

 Pressure Control via Advanced Circuit Board

The machine incorporates an electronic pressure control system managed through a sophisticated circuit board. This board regulates hydraulic pressure to ensure it reaches the maximum needed for cutting while avoiding unnecessary overpressure.A potentiometer—an electric controlling device is used to fine-tune the pressing time of the swing arm. This means operators can precisely control how long the arm applies pressure during each cycle, resulting in more consistent and reliable cuts. Importantly, this also allows the use of smaller pressing forces when suitable, reducing wear on dies and machine components and extending their service life.

 Enhanced Operator Safety with Two-Hand Switch Operation

Safety is paramount in heavy-duty die cutting machinery, and the TW-528 addresses this with a two-hand switch control system. This design requires the operator to simultaneously press two switches with both hands to activate the pressing procedure.This dual-switch mechanism effectively ensures that the operator’s hands are away from the cutting zone during machine operation, greatly reducing the risk of injury. Such safety design complies with international standards for industrial machinery and protects your workforce while maintaining smooth production flow.

 Robust Hydraulic Swing Arm Design

The TW-528 features a hydraulic swing arm mechanism that offers both power and flexibility. The swinging arm allows the upper cutting platen to move easily sideways, providing better access for loading and unloading materials and dies.This swinging capability speeds up the workflow and makes it simple for operators to place and remove die-cut materials without strain or awkward positioning. The hydraulic system powering the arm delivers consistent, smooth force for sharp and clean cuts on various materials.

 Compact and Durable Construction

Constructed with heavy-duty steel frames and precision-engineered components, the TW-528 offers a compact footprint while maintaining structural integrity. The machine body is designed to resist vibrations and maintain alignment over time, ensuring consistent cutting precision even after prolonged use.The durable construction also minimizes maintenance needs and extends the working lifespan of the press, making it a cost-effective investment for any die cutting facility.

Operational Advantages

Simplified Setup and Quick Changeover

Thanks to the automatic stroke end setting and electronic pressure controls, setup times for different die cutting jobs are drastically reduced. Operators no longer need to spend excessive time adjusting cutting height or pressure manually, allowing for fast changeover between jobs.This capability is especially advantageous for manufacturers producing multiple product types or working in batch production environments. Rapid setup reduces machine idle time and increases overall productivity.

Consistent Cutting Quality

By automatically adapting pressure and stroke based on die height and material thickness, the TW-528 guarantees consistent cutting depth and quality across every cycle. This reduces the risk of undercut or overcut scenarios, minimizing defective output and material wastage.Precision cutting ensures components meet strict quality standards, whether producing intricate leather patterns, rubber gaskets, textile components, or other materials.

Material Savings and Reduced Costs

The ability to use controlled, minimal pressure tailored to each job also means less material damage and lower cutting board wear. This translates to fewer replacements and less waste, significantly reducing operational costs.

The TW-528’s precision and reliability contribute directly to better resource management and improved profitability.

Technical Specifications (Overview)

• Cutting Force: Adjustable up to a specified maximum controlled by electronic circuit board.

• Power Supply: Efficient hydraulic pump motor with low power consumption.

• Stroke Adjustment: Automatic stroke end setting for varying die heights.

• Control System: Dual-hand switch safety controls, potentiometer-controlled pressing time.

• Swing Arm: Hydraulic swing arm for easy die and material handling.

• Machine Frame: Heavy-duty steel construction designed for minimal vibration.

• Safety Features: Emergency stops, safety interlocks, protective guards.

Applications Across Industries

The Hydraulic Swing Arm Cutting Machine TW-528 is highly versatile and suitable for numerous industrial applications where precision die cutting is critical:

• Footwear Manufacturing: Cutting shoe uppers, soles, insoles, and midsoles from leather, rubber, and synthetic materials.

• Leather Goods: Crafting wallet components, belts, handbags, and accessories with fine detail.

• Automotive Parts: Producing seals, gaskets, and insulation materials from rubber and composite sheets.

• Textile Industry: Cutting fabrics, multilayer textiles, and nonwoven materials for apparel and industrial uses.

• Packaging: Creating foam inserts, cardboard cutouts, and protective packaging components.

• Electronics: Precision cutting of insulating foams, rubber gaskets, and protective layers.

Its adaptability to various materials and die shapes makes the TW-528 a go-to press for businesses needing reliable, repeatable cuts.

Ease of Maintenance and Support

Maintaining the TW-528 is straightforward, designed to maximize uptime:

• Regular hydraulic oil level checks and timely replacement.

• Scheduled hydraulic filter changes to maintain fluid cleanliness.

• Lubrication of moving parts per manufacturer recommendations.

• Electrical system inspections to ensure safety and reliability.

• Cleaning of cutting pads and swing arm mechanisms to prevent debris buildup.

Taiwei’s global service network supports operators with spare parts availability, technical guidance, and training, ensuring the machine’s peak performance throughout its lifespan.

Operator Training and Safety Emphasis

Taiwei provides comprehensive operator training to ensure:

• Safe and proper use of the two-hand control system.

• Understanding of automatic stroke adjustment and pressure settings.

• Routine maintenance procedures and troubleshooting techniques.

• Compliance with safety protocols and emergency responses.

Proper training optimizes the machine’s productivity while maintaining a safe workplace environment.

The Hydraulic Swing Arm Cutting Machine TW-528 stands out as a premium choice for businesses demanding precise, efficient, and safe die cutting. Its advanced automatic stroke adjustment, electronic pressure control, and operator safety features converge to offer a press that is both powerful and intelligent.Whether manufacturing footwear, automotive components, textiles, or other die-cut materials, the TW-528 boosts production efficiency, reduces material waste, and safeguards operators—all critical factors in today’s competitive manufacturing landscape.With Taiwei’s legacy of excellence behind it, the TW-528 delivers long-lasting reliability and exceptional value, making it a vital asset for any cutting operation aiming for superior quality and productivity.
