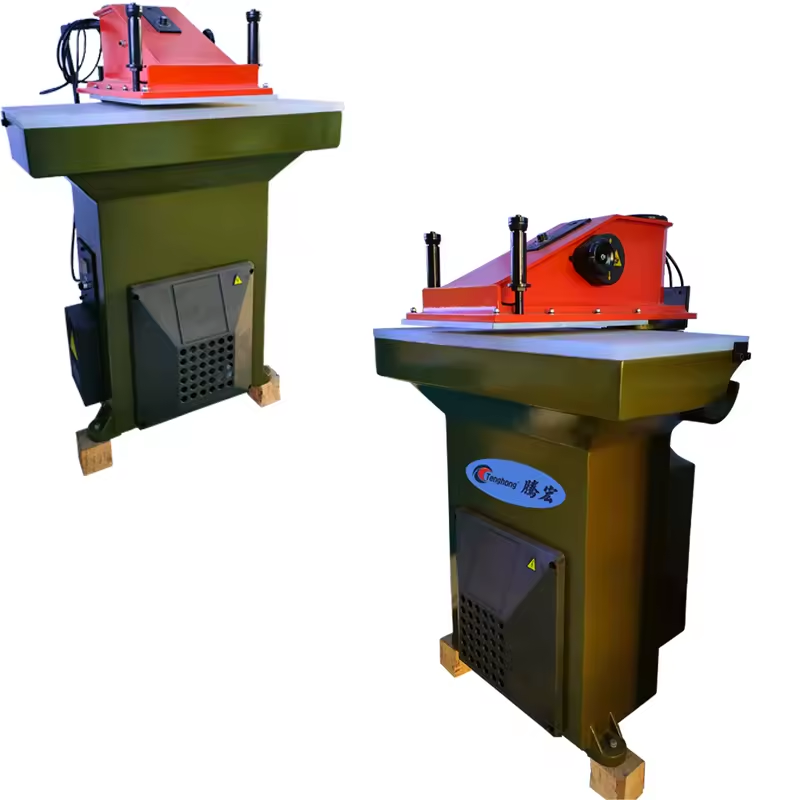

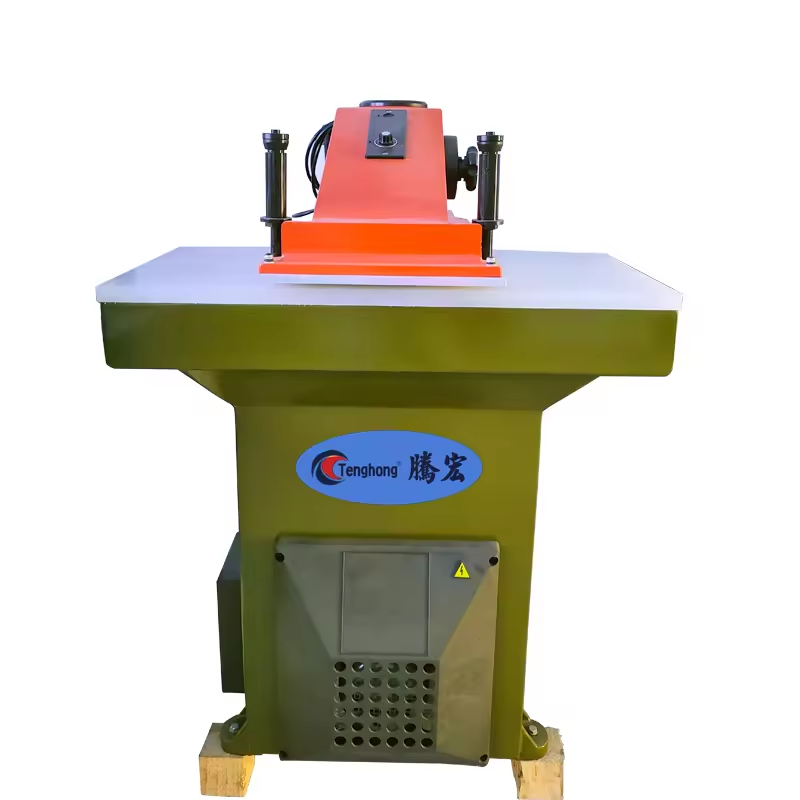

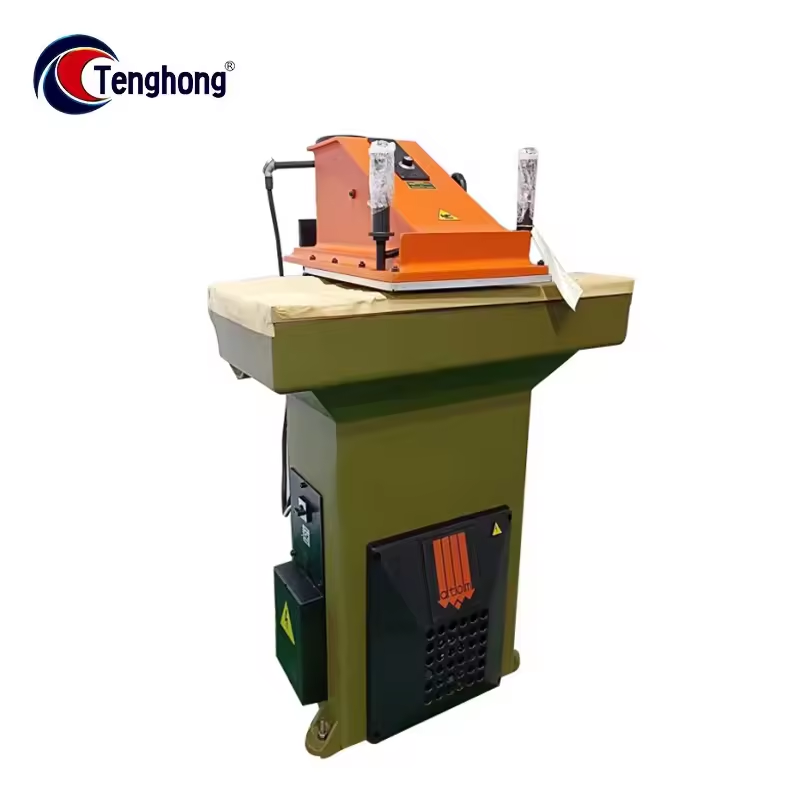

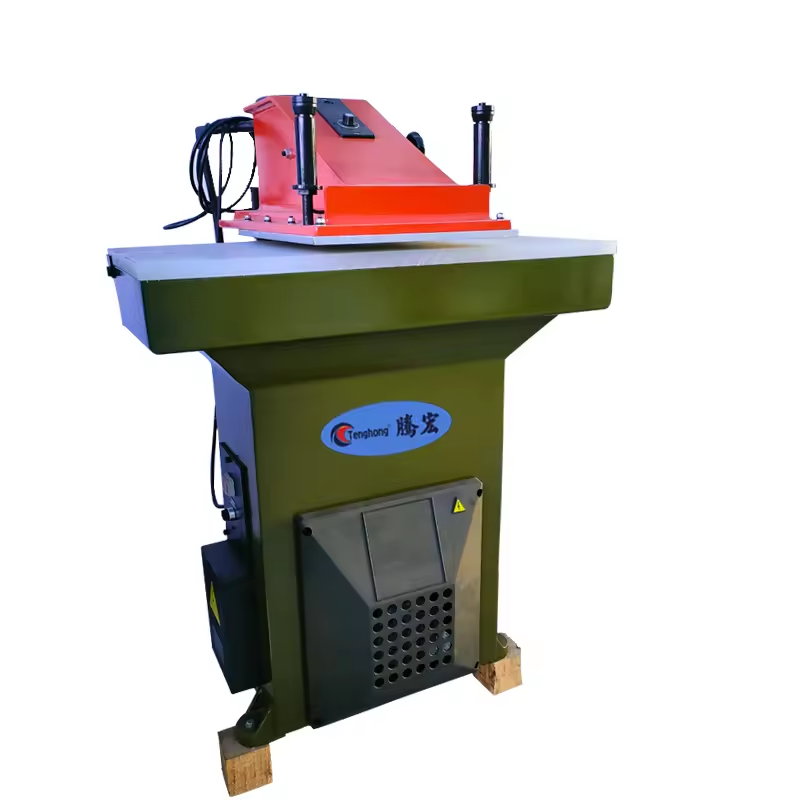

MACHINE NAME: HYDRAULIC ARM PRESS CUTTING MACHINE

MODEL NO: TH-212 TOE

BRAND: TENGHONG

FEATURES

TECHNICAL PARAMETER

In today’s fast-paced industrial landscape, manufacturers demand precision, speed, safety, and cost-effectiveness—qualities that must coexist in a single machine to meet the growing challenges of modern production. The Hydraulic Swing Arm Cutting Machine is the embodiment of all these requirements, offering cutting-edge performance while streamlining operations. Designed with user experience, longevity, and multi-industry compatibility in mind, this machine delivers unparalleled functionality across a vast range of non-metallic material applications. Whether you're in the footwear industry, automotive interiors, apparel, or custom crafts, this cutting solution will elevate your workflow and improve your bottom line. Engineered for both heavy-duty performance and operator comfort, this swing arm machine features state-of-the-art hydraulic pressure control, ultra-fast operation, minimal energy consumption, and whisper-quiet functionality—all packed in a compact yet robust structure. Let’s explore the machine’s comprehensive capabilities, features, and benefits that make it the ideal choice for manufacturers seeking superior cutting solutions.

Powerful Yet Economical Hydraulic System

At the heart of this machine is a unique and intelligently designed hydraulic system. Unlike traditional die-cutting machines that consume high amounts of energy and suffer from inconsistent force application, the Hydraulic Swing Arm Cutting Machine operates with remarkable efficiency. The hydraulic configuration generates very high-speed cutting action while maintaining low oil temperature, ensuring stable performance over long hours of operation. The result? Faster production cycles without the heat buildup that leads to hydraulic wear, oil degradation, or thermal inefficiency. This low-oil temperature system ensures long-term durability of hydraulic parts, reduces maintenance frequency, and improves safety. In addition, the system is electrically efficient, with a typical power consumption of just 0.75 kW, meaning it not only reduces your utility bills but also contributes to an environmentally friendly workplace.

Ultra-Low Noise Operation

Industrial noise is a significant concern in today’s manufacturing spaces, affecting both productivity and workplace well-being. The Hydraulic Swing Arm Cutting Machine sets itself apart with its low-noise hydraulic mechanism, which makes it ideal for factories seeking to minimize sound pollution without compromising power or output. The advanced motor design, optimized mechanical movements, and balanced hydraulic components ensure smooth and quiet operations. Operators can focus more on their tasks without distraction, and the workplace can maintain a safer, more comfortable noise environment. This makes the machine especially suitable for manufacturing settings with multiple units running simultaneously, where keeping ambient noise levels under control is critical.

Manual Switch System for Precision Control

Unlike fully automated machines that may lack nuanced user control, this swing arm cutter is equipped with a manual switch system that enables operators to manage each cutting cycle with confidence. Switching between operations is done via a straightforward manual interface, making the machine accessible to operators of all skill levels. This switching mechanism enhances user control, enabling the operator to position dies and materials accurately before initiating the cutting action. It ensures that every action corresponds to a single, deliberate motion, significantly improving both accuracy and operator safety . Furthermore, the simplicity of the hand-switch system reduces the risk of mechanical or electrical malfunction, ensuring consistent uptime and long-term dependability.

Energy Saving and Built-In Electrical Protection

Energy conservation is an increasingly important consideration for manufacturers seeking sustainable operations. The Hydraulic Swing Arm Cutting Machine is engineered with power efficiency in mind. With a low electrical draw of just 0.75kW, it operates effectively without draining excess power from your grid, offering significant cost savings over time. Moreover, this model includes an integrated electrical protection system designed to shield the machine from voltage fluctuations, overloads, and short circuits. This feature provides a safety net that guards your investment from unforeseen electrical issues that can lead to downtime or costly repairs. The combination of low power usage and smart protection ensures the machine operates reliably in various environments, including areas with inconsistent power supply or multiple machines drawing from a shared source.

Ergonomic Swing Arm for Operator Comfort and Speed

At the core of the machine's design is its hydraulic swing arm—a versatile and highly ergonomic feature that sets it apart. The arm swings smoothly with minimal effort, allowing the operator to reposition the cutting head quickly and safely. Its balance and responsiveness reduce operator fatigue, making it ideal for long production runs. The swing arm is built for fast positioning, and its design allows for rapid succession of cutting cycles, significantly reducing cycle time and enhancing productivity. Additionally, its manual operation is extremely intuitive, allowing new users to become proficient with minimal training. Operators can complete complex cutting jobs with ease, whether they are processing a single piece or layered materials. The swing arm’s controlled motion ensures precision and repeatability, job after job.

Accurate Cutting Stroke Adjustment with Dual Control Modes

Flexibility and accuracy in stroke control are essential for working with a variety of materials and die depths. This cutting machine supports two cutting styles, allowing operators to set and adjust the cutting stroke according to the job’s requirements. The stroke can be easily calibrated for deep or shallow cuts, depending on material thickness or die shape. The operator can set the stroke depth through an intuitive interface that adjusts the hydraulic pressure and motion, ensuring clean and accurate cuts across all production types. This dual-style setting is particularly useful for delicate materials like foam, paperboard, or synthetic leathers, where depth accuracy is critical to avoid damage or waste. It also provides the robustness needed for thicker materials such as canvas, nylon, or rubber composites.

User-Friendly Operation and Training Simplicity

Despite its powerful capabilities, this machine is designed with user-friendliness as a top priority. All control mechanisms are clearly labeled and easily accessible. New operators can be trained in a matter of minutes, and experienced users will find the interface refreshingly straightforward. The simplicity of operation eliminates the steep learning curve associated with some industrial machinery, making it ideal for small businesses, startup workshops, or production lines with rotating staff. Its minimal maintenance requirements and high reliability also mean that you won’t need a dedicated technician to keep it running. This empowers teams to focus more on output and creativity, rather than troubleshooting machine functions.

Compact Footprint and Mobility

Space is often a premium in manufacturing setups, and the Hydraulic Swing Arm Cutting Machine is designed with a compact footprint to fit comfortably in workspaces of all sizes. Its ergonomic design makes it easy to integrate into existing production lines without the need for structural adjustments or reconfiguration. The machine’s robust yet compact construction also makes it portable enough to be moved between workstations if required. For larger operations, multiple units can be installed side-by-side to create high-throughput assembly lines with synchronized operations.

Low Breakdown Rate and Long Lifespan

One of the most critical factors for industrial machinery is reliability. This swing arm cutting machine has been engineered with minimal moving parts, reducing wear and the potential for mechanical failure. The hydraulic system is fully enclosed, protecting it from contaminants and external damage, while all bearings and bushings are industrial-grade. A low breakdown rate means minimal downtime, which translates into greater operational continuity and lower total cost of ownership. All components are made from high-durability alloys and high-tensile materials, ensuring the machine provides years of dependable service under rigorous conditions.

Wide Material Compatibility Across Industries

The Hydraulic Swing Arm Cutting Machine is designed to work with an extensive array of non-metallic materials. This versatility makes it a valuable addition to various industrial sectors. It is capable of cutting:

• Leather and synthetic leathers for shoes, bags, upholstery, and accessories

• Canvas and fabrics for fashion, outdoor gear, or utility items

• Foam materials for packaging, insulation, or crafts

• Rubber sheets and soft plastics for gaskets, seals, and industrial parts

• Paperboard and cardboard for label making, pattern templates, and packaging

• Nylon and other textiles for automotive, garment, or accessory production

• Felt, cork, and sponge for specialized crafts and applications

With this material versatility, the machine is widely used in industries such as:

• Footwear and Apparel

• Automotive Interiors

• Craft and Hobby Manufacturing

• Leather Goods and Accessories

• Sports Equipment

• Packaging and Printing

• Medical Supplies

• Furniture and Home Decor

Optional Enhancements and Custom Configurations

To meet unique client needs and manufacturing specifications, this machine supports a range of optional customizations and upgrades:

• Die holding fixtures for rapid interchange

• Stroke depth sensors for advanced accuracy

• Material feeding tables or roller mechanisms

• Safety light curtains or enclosures for added protection

• Foot pedal control systems for alternate activation modes

• Customized arm lengths or cutting force adjustments for specific applications

These features allow manufacturers to scale the machine’s capabilities as their needs grow, ensuring long-term utility and scalability.

Sustainability and Compliance

The Hydraulic Swing Arm Cutting Machine supports sustainability goals by minimizing energy consumption, maximizing material yield, and operating with near-zero emissions. The low power requirements make it ideal for facilities focused on reducing their carbon footprint. Additionally, the machine adheres to international safety and manufacturing standards. Whether your operations are in Europe, North America, or Asia, you can be confident that this machine meets industry-specific safety certifications and energy compliance requirements.

The Hydraulic Swing Arm Cutting Machine is the perfect blend of power, precision, and practicality. Its low noise, low energy consumption, and high cutting speed make it a standout solution in today’s demanding manufacturing environments. Built to last and easy to operate, this machine helps businesses streamline their production lines, reduce labor costs, and improve overall product quality. With excellent hydraulic performance, advanced safety mechanisms, and material versatility, it is the ideal choice for manufacturers who want to stay competitive without compromising quality or efficiency.
