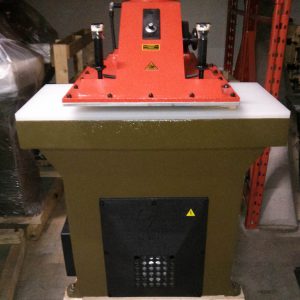

Hydraulic Arm Press Cutting Machine TW-580P

The Hydraulic Cutting Press Beam Cutting TW-580P is a highly efficient and precision-engineered cutting solution designed to meet the growing demand for accurate, consistent, and high-volume cutting applications across a wide range of industries. This state-of-the-art hydraulic cutting machine represents the pinnacle of technological advancement in the field of die-cutting machinery, integrating modern design principles, superior hydraulics, and intelligent control systems to deliver exceptional results in both small-scale operations and large-scale manufacturing environments.

The TW-580P embodies the latest evolution in beam-type hydraulic cutting machines. It is engineered to outperform traditional mechanical and early hydraulic cutting presses by offering a powerful, stable, and energy-efficient performance. While earlier generations of beam cutting presses focused on basic functionality, the TW-580P brings together decades of research, user feedback, and global industrial standards into one comprehensive solution.

Overview of Development and Technological Advancements

The development of hydraulic cutting machinery has come a long way since the inception of mechanical die-cutting presses in the mid-20th century. The 1970s saw the popularity of mechanical beam presses, which relied heavily on manual operation and gear-driven systems. These machines were robust but lacked precision and energy efficiency. As technology progressed into the 1990s, hydraulic flatbed presses gained popularity. While they introduced better force control and smoother operation, they still fell short in terms of versatility and automation.

With the emergence of advanced hydraulics and CNC control systems in the 2000s, machines like the TW-580P began to enter the market. These new-generation hydraulic beam cutting presses are not just machines—they are intelligent, adaptable tools that redefine productivity and quality. The TW-580P, in particular, is designed with an emphasis on operator comfort, cutting precision, energy conservation, and multi-material compatibility.

Key Features and Technical Advantages

High-Precision Hydraulic System

The TW-580P is equipped with a superior hydraulic power system that ensures uniform cutting pressure throughout the operation. Unlike mechanical systems that can have uneven pressure distribution, the hydraulic system in this model provides constant pressure to the cutting beam, ensuring even and consistent die cutting.

The hydraulic components are sourced from internationally recognized manufacturers and undergo rigorous testing for quality and durability. The advanced pressure control mechanisms allow the machine to adapt automatically to various cutting depths and material densities, minimizing waste and improving the quality of finished products.

Sturdy Beam Structure and Enhanced Rigidity

The cutting beam of the TW-580P is constructed from high-strength steel, designed using finite element analysis (FEA) for optimal strength-to-weight ratio. The structure is reinforced to resist flexing under high pressure, ensuring longevity and precise operation over time.

The beam movement is guided by high-precision linear bearings that reduce friction and wear, resulting in smooth and silent operation. This not only contributes to the machine’s durability but also reduces maintenance requirements, making it ideal for high-volume production environments.

Wide Cutting Area and Adjustable Stroke

One of the standout features of the TW-580P is its generously sized cutting area, which supports both small and large dies. The stroke length is easily adjustable through the user interface, allowing operators to set the optimal press depth for each job. This flexibility ensures efficient die cutting for a variety of materials, including thick composites and delicate textiles.

The adjustable stroke setting is managed through a digital control panel that offers both automatic and manual modes, giving operators total control over the cutting process.

User-Friendly Digital Control Interface

The TW-580P comes with an intuitive and easy-to-use control interface that simplifies machine operation. The LCD screen displays real-time data such as pressure, stroke length, number of cuts, and maintenance alerts.

Operators can save presets for different cutting tasks, streamlining workflow and reducing setup time for repetitive operations. This level of automation ensures consistent output and significantly reduces the learning curve for new operators.

Energy Efficiency and Eco-Friendly Design

Energy efficiency is a top priority in modern industrial equipment, and the TW-580P delivers on this front. The machine incorporates a smart power management system that regulates hydraulic pump activity based on demand. When idle, the machine enters a low-energy standby mode, significantly reducing electricity consumption.

The hydraulic oil tank is designed to minimize fluid degradation, and the entire system operates with minimal leakage, ensuring a cleaner, more eco-friendly workplace. These features align with global efforts toward green manufacturing practices.

High Safety Standards

Safety is paramount in any industrial setting, and the TW-580P incorporates multiple safety mechanisms to protect operators and equipment. These include:

• Two-hand operation control to prevent accidental activation.

• Emergency stop buttons are positioned within easy reach.

• Safety light curtains or optical sensors (optional) to detect hand movement in the danger zone.

• Hydraulic overload protection to prevent equipment damage.

These built-in safeguards ensure compliance with international safety standards and enhance operator confidence and comfort.

Versatile Application Across Industries

The versatility of the TW-580P makes it a valuable asset across a wide array of industries. It is capable of cutting a broad range of materials with precision and ease. Common applications include:

• Footwear Manufacturing: Cutting leather and synthetic upper materials for shoes, soles, insoles, and liners.

• Luggage and Bags: Die cutting of synthetic fabrics, leathers, and foam used in handbags, briefcases, and backpacks.

• Automotive Supplies: Cutting of interior trim materials, foam padding, insulation sheets, and EVA components.

• Plush Toys: Shaping of soft fabrics, felts, and plush materials for toy production.

• Foam and EVA: Precision cutting of flexible materials for packaging, insoles, sports goods, and orthopedic products.

• Silk Flowers and Decorative Goods: Cutting intricate patterns and floral shapes from synthetic or fabric sheets.

• Sports Goods: Processing of rubber sheets, foam padding, and laminated layers for protective gear and accessories.

• Textile and Garment Accessories: Cutting layers of fabric, lining, and interlining with precision and speed.

Its ability to switch between materials without extensive reconfiguration makes the TW-580P a preferred solution for manufacturers handling diverse product lines.

Benefits of Using the TW-580P

• Increased Productivity: Faster cycle times and reduced downtime.

• Precision Cutting: Ensures clean edges and uniform shapes, reducing material waste.

• Reduced Labor Costs: Automation and simplified controls minimize the need for skilled labor.

• Durability and Longevity: Robust construction and quality components extend service life.

• Enhanced Product Quality: Consistent cutting results in higher quality end products.

• Adaptability: Capable of handling both high- and low-volume production.

Installation and Maintenance

The TW-580P is designed for quick installation and minimal maintenance. It is shipped in a semi-assembled state with detailed setup instructions, and professional installation services are available if required. Once operational, the machine requires only periodic maintenance checks:

• Hydraulic oil level and condition checks every 1000 hours.

• Inspection of seals, hoses, and connections every 3 months.

• Calibration of cutting stroke and alignment every 6 months.

All wear parts are easy to access and replace, and the manufacturer provides a full range of spare parts and technical support.

Customization Options

To meet the specific requirements of different industries, the TW-580P offers several optional features:

• Servo-Controlled Beam Movement: For ultra-precise cutting and repeatability.

• Die Registration System: Laser or optical alignment system for exact die placement.

• Material Feeders: Conveyor belts or automatic feeding systems for roll or sheet materials.

• Waste Collection Trays: Integrated system to collect scraps and offcuts efficiently.

• Networking Capability: IoT support for smart factory integration and remote diagnostics.

These upgrades enhance the functionality of the base machine and make it suitable for specialized cutting tasks.

Quality Assurance and Compliance

Every TW-580P unit undergoes rigorous quality control before shipping. It is manufactured in compliance with ISO 9001 quality management standards and meets CE certification for safety and performance. The hydraulic system conforms to ROHS and REACH environmental standards, ensuring minimal impact on health and the environment.

The Hydraulic Cutting Press Beam Cutting TW-580P is more than just a cutting machine—it is a complete cutting solution designed to address the dynamic needs of modern manufacturing. With its precision engineering, powerful hydraulic system, user-friendly controls, and broad material compatibility, it sets a new standard for reliability and performance in die-cutting operations. Whether you are in footwear production, automotive supply, textile manufacturing, or packaging, the TW-580P is built to deliver high-quality results, maximize efficiency, and future-proof your cutting operations. Investing in this machine means investing in precision, consistency, and long-term value.
