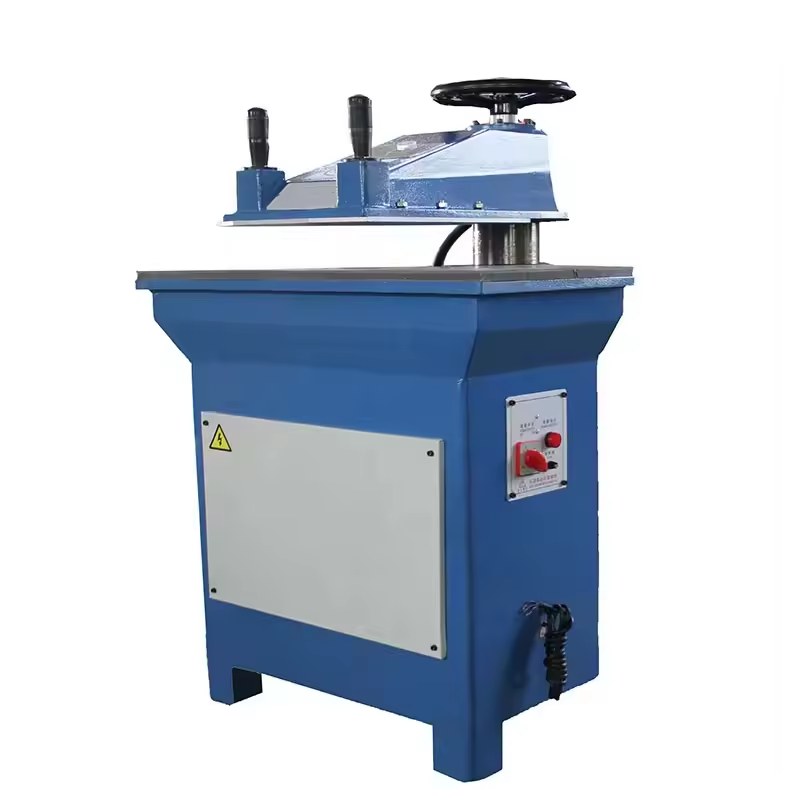

Hydraulic Arm Press Cutting Machine TW-922(1+1)

The Hydraulic Clicking Swing Arm Cutting Press TW-922(1+1) represents a cutting-edge solution in the realm of die cutting machines. Designed to meet the rigorous demands of industries that require precision, reliability, and productivity, this machine excels in delivering superior cutting power combined with intelligent automation and ergonomic operation. With a compact yet robust design, the TW-922(1+1) has become a preferred choice for manufacturers in footwear, leather goods, textiles, automotive components, and many other sectors requiring versatile and accurate cutting solutions.Engineered with modern hydraulic technology and a sophisticated swing arm mechanism, this press maximizes output while minimizing energy consumption and operator fatigue. It embodies Taiwei’s commitment to quality and innovation, leveraging decades of expertise to offer a machine that balances power, speed, and safety in one highly efficient package.

Core Features and Technical Advantages

 Lower Power Consumption with High Cutting Power

One of the hallmark features of the TW-922(1+1) is its energy-efficient hydraulic system. Powered by a 0.75 kW pump motor, this press delivers an impressive cutting force ranging from 22 tons up to 28 tons, depending on the job requirements. This powerful output, despite the relatively low motor capacity, translates into higher cutting speeds with less energy expenditure.By optimizing hydraulic components and system design, the TW-922(1+1) achieves a perfect balance between performance and power consumption, allowing factories to reduce operational costs without sacrificing productivity. This feature is especially valuable for high-volume manufacturing setups aiming for sustainable energy usage.

 Automatic Stroke End Adjustment

The TW-922(1+1) is equipped with an advanced automatic stroke end adjustment system. This technology automatically adapts the pressing stroke to the height of the die-cut material, ensuring that the machine applies the correct pressure without the need for manual recalibration.Operators no longer have to guess or adjust cutting power manually when switching between dies of different heights or material thicknesses. This automatic adaptation reduces setup time, improves cutting consistency, and protects dies and materials from damage caused by incorrect pressure settings.

 Faster and Easier Height Setting

Setting the correct cutting height on a die cutting press is traditionally a time-consuming process requiring skill and attention to detail. The TW-922(1+1) streamlines this with a faster height setting mechanism that works in conjunction with the automatic stroke adjustment.This reduces downtime during production changeovers, enabling rapid switching between different cutting jobs. Quick height adjustments mean your factory’s throughput increases, and operators spend less time troubleshooting or fine-tuning the machine.

 Significant Material Savings

The precise control of pressure and stroke means that the TW-922(1+1) optimizes material usage. By accurately applying only the necessary cutting force and stroke length, the machine minimizes material waste—saving valuable resources such as leather, fabric, rubber, and cutting boards.This efficient cutting translates to significant cost savings over time, especially in industries where raw materials represent a major part of the product cost. The combination of precise cuts and minimal board wear also extends the lifespan of cutting pads and dies.

 Firm and Durable Machine Body Construction

Constructed from high-grade steel components with a focus on durability and rigidity, the TW-922(1+1) features a firm machine body designed to withstand intensive production cycles. The solid frame reduces vibrations and mechanical deviations during operation, which is essential for producing consistent, high-quality cuts.This rugged build also contributes to the machine’s long service life and reduces the frequency and cost of maintenance, making it a cost-effective investment for any manufacturing facility.

 Simple and Intuitive Operation

Despite its advanced features, the TW-922(1+1) maintains user-friendly operation. Controls are clearly labeled and easy to reach, and the interface enables operators to quickly learn and efficiently manage the machine.This ease of use minimizes operator training time and helps maintain steady production flow, even when different personnel operate the press. Features such as two-hand safety controls also ensure safe and deliberate operation, preventing accidental machine activation.

 Full Operator Safety and Machine Reliability

Operator safety is a top priority in the design of the TW-922(1+1). The press incorporates a two-hand pressing control system, requiring the operator to engage both hands simultaneously to initiate the pressing cycle. This prevents accidental injury by keeping hands clear of the cutting zone during operation.Additionally, the machine includes emergency stop functions, safety interlocks, and protective guards to safeguard users at every stage. The reliability of the hydraulic components and electrical systems further ensures consistent and safe operation throughout extended production shifts.

Technical Specifications Overview

While avoiding tables, it’s important to highlight key specifications to showcase machine capabilities:

• Cutting Force: 22 to 28 tons provided by a 0.75 kW hydraulic pump motor.

• Stroke Adjustment: Automatic stroke end setting for die height variations.

• Frame Dimensions: Designed to fit compact spaces yet maintain a generous cutting area.

• Power Supply: Optimized for standard industrial electrical systems.

• Control System: User-friendly control panel with pressure and speed adjustments.

• Safety: Two-hand operation, emergency stops, and safety guards.

• Operation: Swing arm design facilitates easy die positioning and material loading.

Operational Workflow and Benefits

Streamlined Die Cutting Process

The TW-922(1+1) integrates seamlessly into production lines, providing a smooth and consistent die cutting workflow. The operator places the material and die on the cutting board beneath the swinging arm. Thanks to the swing arm mechanism, the top cutting platen can be easily moved to position or remove dies, facilitating faster material handling and improved operator ergonomics.Once positioned, the operator engages the two-hand safety controls. The press then applies the exact hydraulic pressure and stroke length as programmed, completing the cut efficiently. The hydraulic system ensures the arm returns smoothly to the starting position, ready for the next cycle.

Improved Productivity Through Automation

By automating stroke adjustment and enabling quick height setting, the TW-922(1+1) minimizes the need for manual intervention. This automation dramatically reduces setup and changeover times, making it possible to produce a wider variety of products without lengthy downtime.For manufacturers producing multiple SKUs or switching between product types, this feature results in substantial productivity gains and improved manufacturing flexibility.

Enhanced Material and Resource Management

The precise pressure control limits overcutting and reduces material damage, which preserves the integrity of expensive raw materials like leather and technical textiles. Additionally, because the machine minimizes cutting board wear, less frequent replacements are needed, cutting back on material costs and downtime.

Applications and Industry Usage

The Hydraulic Clicking Swing Arm Cutting Press TW-922(1+1) is widely utilized across various industries due to its versatile cutting capabilities and reliable performance. Typical applications include:

• Footwear Production: Cutting shoe uppers, soles, insoles, and other components requiring high precision and clean edges.

• Leather Goods: Manufacturing wallets, belts, bags, and small leather accessories.

• Automotive Parts: Producing rubber seals, gaskets, and insulating materials.

• Textile and Apparel: Cutting fabrics, composites, and layered materials for garment and industrial applications.

• Packaging: Creating foam inserts, cardboard cutouts, and custom packaging solutions.

• Electronics: Die cutting insulating foams and protective materials.

The TW-922(1+1)’s combination of power, precision, and ease of use makes it an excellent choice for small batch production as well as high-volume industrial applications.

Maintenance and Longevity

The TW-922(1+1) has been designed for minimal maintenance requirements and maximum uptime. Recommended maintenance includes:

• Routine inspection and topping off of hydraulic oil levels.

• Scheduled replacement of hydraulic filters.

• Lubrication of moving mechanical parts.

• Checking the integrity of electrical connections and safety devices.

• Regular cleaning of the cutting board surface and platen.

Taiwei offers comprehensive technical support and readily available spare parts to keep your press running smoothly. With proper care, the TW-922(1+1) provides many years of dependable service.

Operator Training and Support

To maximize machine potential, Taiwei provides thorough training programs for operators and maintenance personnel. Training covers:

• Safe and correct operating procedures.

• Proper adjustment and calibration techniques.

• Routine maintenance and troubleshooting.

• Safety protocols and emergency response.

With knowledgeable operators, the TW-922(1+1) delivers consistent high-quality output, maximizing your return on investment.

The Hydraulic Clicking Swing Arm Cutting Press TW-922(1+1) is a premier machine designed to combine power, precision, and operator safety in a compact, energy-efficient package. Its advanced hydraulic system, automatic stroke adjustment, and intuitive controls ensure rapid setup, accurate cutting, and material savings.Ideal for a wide range of industries—from footwear to automotive and textiles—the TW-922(1+1) enhances productivity and quality while reducing operational costs and labor fatigue. With Taiwei’s legacy of innovation and reliability behind it, this press is a smart choice for manufacturers seeking to elevate their die cutting operations to the next level.
