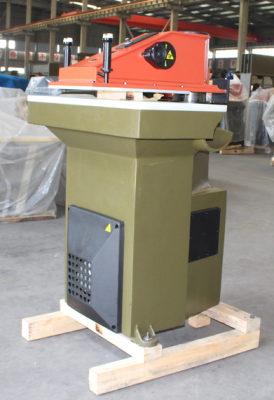

MACHINE NAME: HYDRULIC SEWING ARM CLICKER PRESS MACHINE

MODEL NO: TW-925(1+1),(1+3)

BRAND: TAIWEI

FEATURES

• With a lower power consumption, providing a higher cutting speed (0.75kw pump motor provides 22ton to 28ton cutting power)

• Automatic stroke end adjustment: no need to adjust cut power after
• changing die-cut height
• Faster setting of height
• Higher saving of leather, cutting time, boards
• Firm machine body construction, easy operation
• Full safety for operators, higher reliability

TECHNICAL PARAMETER

1. Model                                : TW-925(1+1), (1+3)
2. Working Table Size             : 900 x 450mm
3. Swing Arm Width                : 370mm
4. Cutting Force                    : 25 Ton
5. Cutting Stroke                   :90mm
6. Motor Power                      : 0.75（1HP）Kw
7. Net Weight                        : 880Kg
8. Gross Weight                     : 1000Kg

The Fabric Cutting Press TW-925(1+1) is a cutting-edge hydraulic press designed to meet the rigorous demands of the fabric and textile cutting industries. Engineered to deliver high cutting precision, energy efficiency, and operator safety, the TW-925(1+1) combines advanced hydraulic technology with a user-friendly design. This machine is ideal for cutting multiple layers of fabric quickly and accurately, making it indispensable for garment manufacturers, upholstery producers, and textile processing plants.

Key Features and Advantages

• Lower Power Consumption with Increased Cutting Speed

  The TW-925(1+1) is powered by a highly efficient 0.75 kW hydraulic pump motor, which supplies a cutting force ranging from 22 to 28 tons. This advanced powertrain design reduces electrical consumption while delivering faster cutting cycles compared to traditional fabric cutting machines. The result is a machine that is not only environmentally friendly but also economically efficient, lowering operational costs without sacrificing performance.

• Automatic Stroke End Adjustment for Enhanced Productivity

  One of the hallmark features of the TW-925(1+1) is its automatic stroke end adjustment mechanism. This innovative system automatically calibrates the cutting stroke based on the thickness of the fabric or material being cut. As a result, operators no longer need to manually adjust cutting pressure or stroke height after changing fabric types or thicknesses. This feature significantly reduces setup times and allows for continuous, uninterrupted production runs, improving overall efficiency.

• Quick and Accurate Height Setting

  The press incorporates a precise height adjustment system that enables rapid setting of the cutting height. This facilitates smooth transitions between different fabric layers or types, helping manufacturers adapt quickly to changing production requirements. The fast height adjustment not only saves valuable time but also enhances cutting accuracy, ensuring consistent quality across all fabric cuts.

• Optimized Fabric and Material Savings

  The TW-925(1+1) press is designed to minimize waste through precise control of cutting pressure and stroke depth. This precision reduces fabric damage and preserves cutting boards, allowing manufacturers to maximize material usage and extend the life of cutting components. These savings translate into lower material costs and reduced downtime for cutting board replacement, making the machine a cost-effective choice for large-scale fabric processing.

• Robust and Firm Machine Body Construction

  Built with a heavy-duty steel frame and precision-engineered components, the TW-925(1+1) offers exceptional durability and stability during operation. Its solid construction minimizes vibrations and ensures smooth, consistent cutting performance. The machine’s rigidity also enhances safety by providing a stable platform that withstands the rigors of industrial use while maintaining long-term operational integrity.

• User-Friendly Operation

  Designed with the operator in mind, the TW-925(1+1) features an ergonomic control panel and intuitive interfaces. Operators can easily manage cutting cycles through simple two-hand push-button controls that ensure safety while allowing quick and responsive operation. The machine’s design minimizes operator fatigue by providing easy access to the cutting table and simplifying material loading and unloading.

• Comprehensive Safety Features

  Safety is a top priority in the TW-925(1+1). The machine employs a two-hand safety control system that ensures the operator’s hands remain clear of the cutting area during operation. Additionally, emergency stop buttons and protective guards are installed to prevent accidents and allow immediate shutdown if necessary. These features meet international safety standards and provide peace of mind during high-speed production.

• High Reliability and Low Maintenance

  The TW-925(1+1) is built to last, with a hydraulic system designed for minimal leakage and reduced wear. Its components are selected for durability, resulting in low maintenance requirements and less downtime. The machine’s reliability ensures consistent cutting quality over prolonged use, supporting continuous manufacturing operations and minimizing disruptions.

Technical Highlights

• Hydraulic Power: The 0.75 kW pump motor delivers a reliable cutting force between 22 and 28 tons, capable of cutting through multiple layers of fabric effortlessly.

• Cutting Stroke: Designed to handle various fabric thicknesses with adjustable stroke settings.

• Cutting Table Dimensions: Spacious enough to accommodate large fabric sheets, improving workflow efficiency.

• Swing Arm Mechanism: Enables easy repositioning of fabric and die tools for enhanced visibility and accessibility.

• Control System: Equipped with two-hand safety push-buttons and emergency stop for secure and efficient operation.

• Energy Efficient: Low power consumption reduces operational costs while maintaining high productivity.

• Machine Weight & Dimensions: Compact yet robust frame designed for factory floor durability and stability.

Applications

The TW-925(1+1) Fabric Cutting Press excels in a broad range of fabric cutting tasks, including but not limited to:

• Garment Manufacturing: Efficiently cuts multiple fabric layers for clothing production, including cotton, polyester, denim, and blended textiles.

• Upholstery Industry: Ideal for precise cutting of heavy fabrics used in furniture, automotive seats, and interior decoration.

• Technical Textiles: Capable of cutting specialized materials such as non-wovens, laminates, and composites used in medical, industrial, and protective clothing.

• Home Furnishing: Suitable for cutting curtains, bed linens, and other household textiles.

• Small to Large Batch Production: The automatic stroke and height adjustment facilitate flexible production sizes without sacrificing speed or quality.

Benefits for Manufacturers

• Maximized Production Efficiency: Faster cutting speeds and automatic adjustments reduce setup and operation time, allowing higher output rates.

• Cost Reduction: Energy savings and material optimization lower the overall cost per unit, boosting profitability.

• Improved Product Quality: Consistent pressure and precise cutting strokes yield cleaner cuts and less material fraying.

• Enhanced Safety: Comprehensive safety mechanisms protect operators and reduce the risk of workplace injuries.

• User Comfort and Ergonomics: Designed to reduce operator strain, increasing comfort and focus during extended shifts.

• Versatility: Adaptable to various fabrics and materials, making it a future-proof investment as product lines evolve.

Why Choose Fabric Cutting Press TW-925(1+1)?

Taiwei’s reputation as a global leader in precision machinery is embodied in the TW-925(1+1). Decades of research and development, combined with customer feedback, have culminated in this machine that balances innovation, reliability, and user-friendly design. Its superior build quality, advanced hydraulic systems, and smart automation features set it apart from traditional fabric cutting machines. Investing in the TW-925(1+1) means choosing a machine that supports your business growth by delivering reliable performance, reducing operational costs, and maintaining high safety standards.

Maintenance and Support

To ensure optimal performance and longevity, regular maintenance is recommended. Key maintenance practices include:

• Routine inspection of hydraulic fluid levels and quality.

• Checking and tightening mechanical fasteners.

• Lubrication of moving parts as specified in the user manual.

• Periodic calibration of stroke and pressure settings.

• Prompt replacement of worn cutting boards and dies.

Taiwei provides comprehensive after-sales support, including installation assistance, operator training, and readily available spare parts. The global service network ensures quick response times and expert technical support to minimize downtime.

The Fabric Cutting Press TW-925(1+1) is a powerful, efficient, and safe solution for modern textile and fabric cutting needs. Its combination of low power consumption, automatic stroke adjustment, and robust construction delivers superior cutting performance with ease of operation. Whether you are a small workshop or a large-scale manufacturer, this machine offers the precision, speed, and reliability required to stay competitive in today’s demanding market. With the TW-925(1+1), experience the benefits of cutting-edge hydraulic technology that maximizes productivity, reduces costs, and enhances workplace safety, making it a wise investment for any textile production environment.
