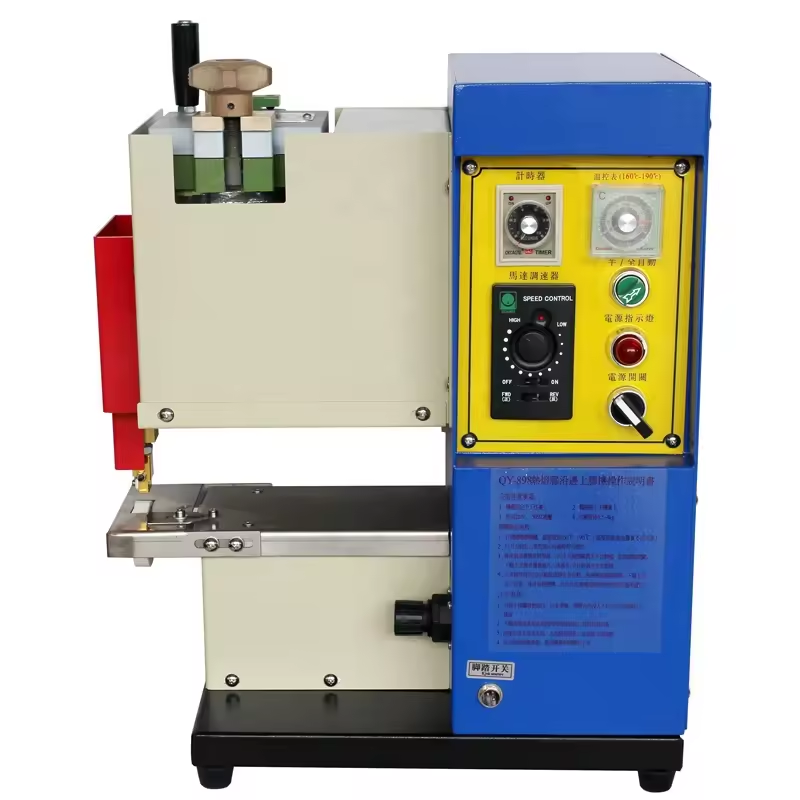

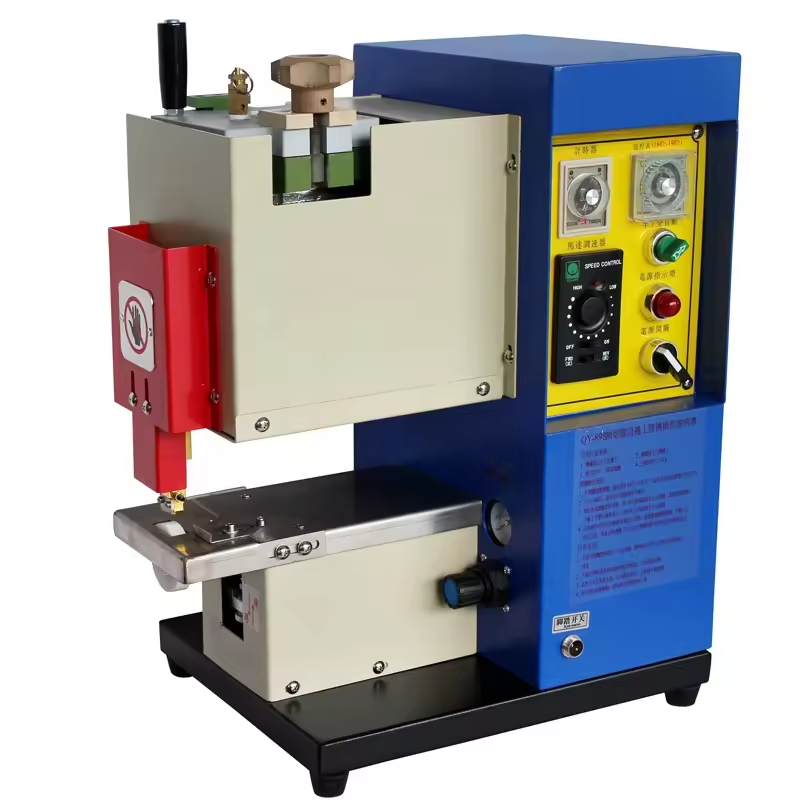

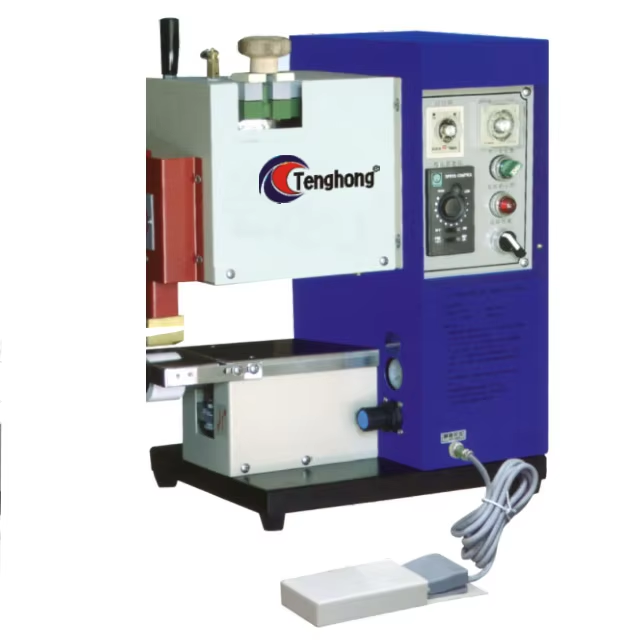

MACHINE NAME: BOOT SHAPING COATING MACHINE

MODEL NO: TH 118

BRAND: TENGHONG

FEATURES

• The design is simple and innovative, replacing the hot melt adhesive dot tape (shaping fabric) and additional reinforcement used in the production of riding boots, saving costs.
• The material thickness can be freely adjusted, and the glue application width can be changed at will.
• The material used is eco-friendly hot melt adhesive, non-toxic, odorless, and colorfast, which enhances the quality of the shoes.
• After the boot uppers are glued and shaped with this machine, there is no need for a mold plate freezing process, and the curvature will never rebound.

TECHNICAL PARAMETER

1. Voltage                   : 220V50/60Hz
2. Power                     : 1/8HP
3. Net weight              : 27kg
4. Gross weight           : 29kg
5. Dimension               : 47(L)x34(W)x58mm(H)
6. Packing size            : 54(L)x39(W)x65mm(H)
7. Used Air Pressure    : 4Kg
8. Electric Heating      : 0.9KW

The Boot Shaping Coating Machine represents a significant innovation in the shoe manufacturing industry, specifically tailored to enhance the production of riding boots and similar footwear. Designed with both efficiency and environmental responsibility in mind, this machine replaces traditional hot melt adhesive dot tape and extra reinforcement processes that are typically used during boot manufacturing. This advanced coating system not only saves on material costs but also improves the quality, durability, and environmental footprint of the finished products. The Boot Shaping Coating Machine is ideal for manufacturers seeking to optimize production workflows, reduce dependency on complex molding steps, and deliver boots with superior fit and finish. It leverages eco-friendly materials and adjustable parameters to provide a highly customizable and sustainable solution for boot shaping and gluing processes.

Innovative Design to Replace Traditional Methods

One of the most remarkable features of the Boot Shaping Coating Machine is its simple yet innovative design, which eliminates the need for conventional hot melt adhesive dot tape and extra reinforcements in the production of riding boots. Traditionally, boot manufacturers relied on these adhesive tapes to shape and reinforce the uppers, followed by additional steps such as mold plate freezing to ensure the curvature of the boot remained intact.

This machine streamlines that entire process by applying a continuous coating of hot melt adhesive that shapes and holds the boot uppers simultaneously. This means manufacturers can:

• Save on the cost of adhesive dot tapes, which are typically more expensive and labor-intensive to apply.

• Avoid the use of additional reinforcement materials, reducing both material consumption and production complexity.

• Simplify the manufacturing process by eliminating the need for mold plate freezing, traditionally necessary to maintain shape after adhesive application.

• Enhance production speed and reduce labor costs, as the machine automates multiple steps in the shaping process.

The innovative design focuses on delivering a cost-effective, faster, and higher-quality alternative to traditional boot shaping methods.

Adjustable Material Thickness and Glue Application Width

Another outstanding feature of this machine is the ability to freely adjust the material thickness as well as the glue application width. This flexibility allows manufacturers to tailor the coating process to a wide variety of boot styles, designs, and materials. Whether you are producing thick leather riding boots or more delicate uppers, the Boot Shaping Coating Machine can be precisely calibrated to match your requirements.

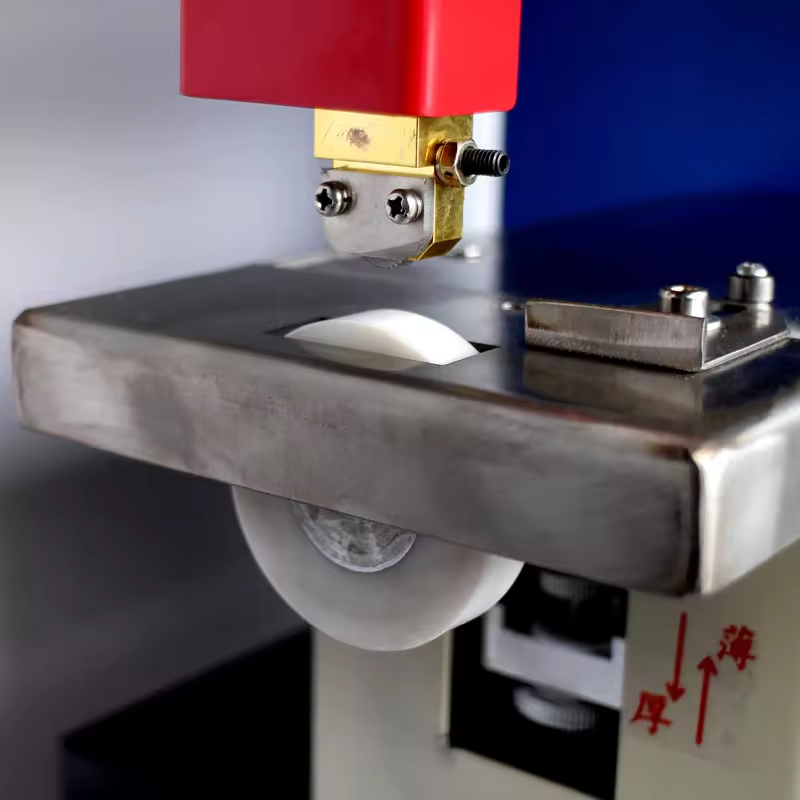

• Material Thickness Adjustment: The machine allows operators to select and control the thickness of the adhesive layer, ensuring optimal adhesion strength without excessive material use. This capability not only improves the quality and durability of the boot but also minimizes waste.

• Glue Application Width Control: The width of the adhesive application can be varied to fit the contours and design elements of different boot uppers. Narrow or wide adhesive paths can be set depending on the design specification, allowing for better shape retention and structural integrity.

This adjustable functionality ensures that the Boot Shaping Coating Machine is suitable for a broad range of footwear manufacturing applications beyond just riding boots, including hiking boots, work boots, and fashion footwear.

Eco-Friendly Hot Melt Adhesive for Superior Quality

In today’s manufacturing landscape, sustainability and product safety are paramount. The Boot Shaping Coating Machine utilizes an eco-friendly hot melt adhesive that is non-toxic, odorless, and colorfast, making it an excellent choice for manufacturers committed to environmental stewardship and worker safety.

• Non-Toxic Composition: The adhesive material meets stringent environmental standards, posing no health risks to operators or end consumers.

• Odorless: Unlike some adhesives, which can emit strong, unpleasant smells during application, this hot melt adhesive is odorless, improving the work environment and reducing air pollution in the factory.

• Colorfast Properties: The adhesive does not discolor or degrade over time, ensuring that the boots retain their aesthetic appeal and structural quality throughout their lifecycle.

The use of this advanced adhesive improves the overall quality of the shoes, providing excellent bonding performance, durability, and maintaining the original look and feel of the boot uppers without compromising comfort or flexibility.

Eliminating the Mold Plate Freezing Process

Traditionally, after applying adhesive to boot uppers, manufacturers rely on mold plate freezing to hold the shape and curvature during the cooling and setting phases. This additional process adds time, complexity, and cost to production lines.

The Boot Shaping Coating Machine fundamentally changes this by applying the adhesive in a way that retains the curvature immediately, removing the need for the mold plate freezing process altogether. This is a huge advantage for manufacturers who want to:

• Reduce production cycle times: By removing a step, overall manufacturing speed increases.

• Improve shape retention: The adhesive coating ensures that the curvature will not rebound or deform after application.

• Lower energy consumption: Mold plate freezing typically requires cooling equipment that consumes energy; this step’s elimination helps reduce factory energy costs.

• Simplify workflow: Less equipment and fewer manual handling steps improve overall factory efficiency.

This feature ensures that the boot uppers maintain their shape precisely as intended, enhancing the final product’s fit, durability, and comfort.

Application Versatility and Industry Use Cases

The Boot Shaping Coating Machine is designed primarily for riding boots, but its capabilities extend to many other footwear types and manufacturing requirements. Below are some of the most prominent applications:

Riding Boots

Riding boots demand high structural integrity and exact shaping to provide the right fit and protection. The machine ensures that uppers are shaped firmly with a consistent adhesive layer, producing boots that hold their form under rigorous use.

Hiking and Outdoor Boots

Outdoor footwear needs durability and weather resistance. By applying an even, adjustable hot melt adhesive coating, manufacturers can enhance the boots’ durability and waterproofing without adding bulk or discomfort.

Work Boots

Work boots often require extra reinforcement for safety purposes. This machine offers precise control over adhesive thickness and width, enabling reinforcement exactly where it is needed without excessive material waste.

Fashion Footwear

High-end fashion boots require clean, professional shaping that maintains the design’s aesthetic lines. The Boot Shaping Coating Machine allows designers to achieve a perfect silhouette while ensuring material flexibility and longevity.

Other Footwear Types

The machine can be adapted for sandals, casual shoes, and even specialty footwear where adhesive application and shaping are essential.

Technical Overview and Operational Details

The Boot Shaping Coating Machine integrates advanced control systems to ensure precise and repeatable operation:

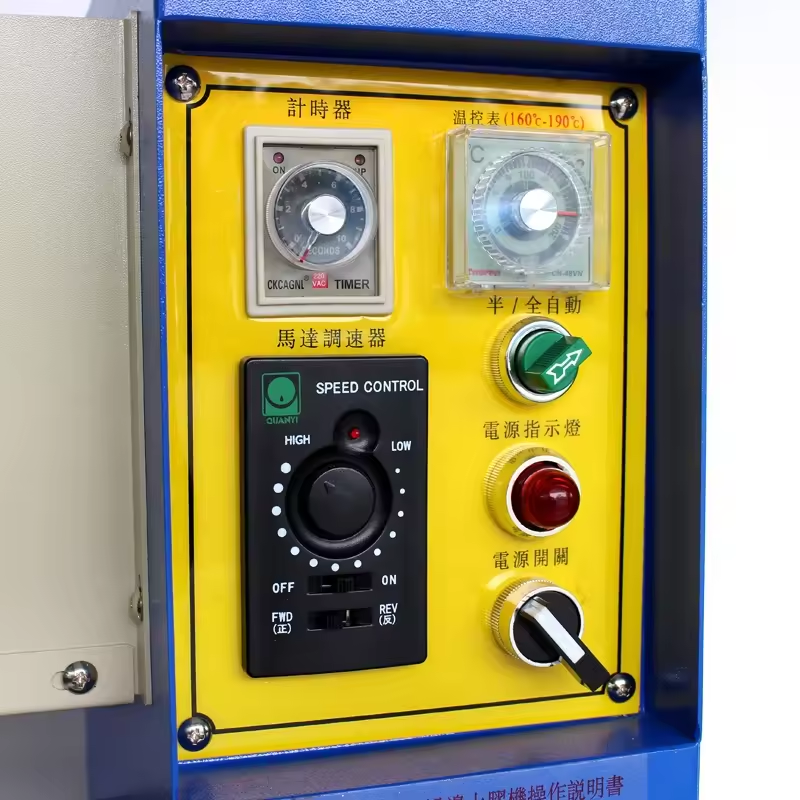

• Temperature Control: The machine heats the hot melt adhesive to an optimal temperature range for efficient bonding without damaging the materials.

• Speed Regulation: Adjustable conveyor speeds and coating rates allow customization of processing times for different materials and production volumes.

• Pressure Application: The machine applies uniform pressure across the boot upper, ensuring consistent adhesive contact and shaping.

• Automation Compatibility: The system can be integrated into automated production lines with conveyors and robotic handling for mass production.

This technical sophistication results in high throughput with minimal downtime and operator intervention.

Environmental and Economic Benefits

The Boot Shaping Coating Machine aligns with modern manufacturing principles by promoting sustainability and cost efficiency:

• Reduction in Material Waste: By optimizing adhesive application, the machine reduces waste of hot melt glue and auxiliary materials.

• Energy Efficiency: Eliminating mold plate freezing and using precise heating controls lowers overall energy consumption.

• Improved Worker Safety: Non-toxic and odorless adhesive contributes to healthier work environments.

• Lower Production Costs: Saving on adhesive tapes, mold freezing, and reinforcement materials translates directly into cost savings.

• Consistent Product Quality: Reduces defects and returns, improving brand reputation and customer satisfaction.

These benefits support manufacturers’ goals of producing high-quality footwear sustainably and profitably.

Maintenance and User-Friendliness

The Boot Shaping Coating Machine is designed with user convenience and ease of maintenance in mind:

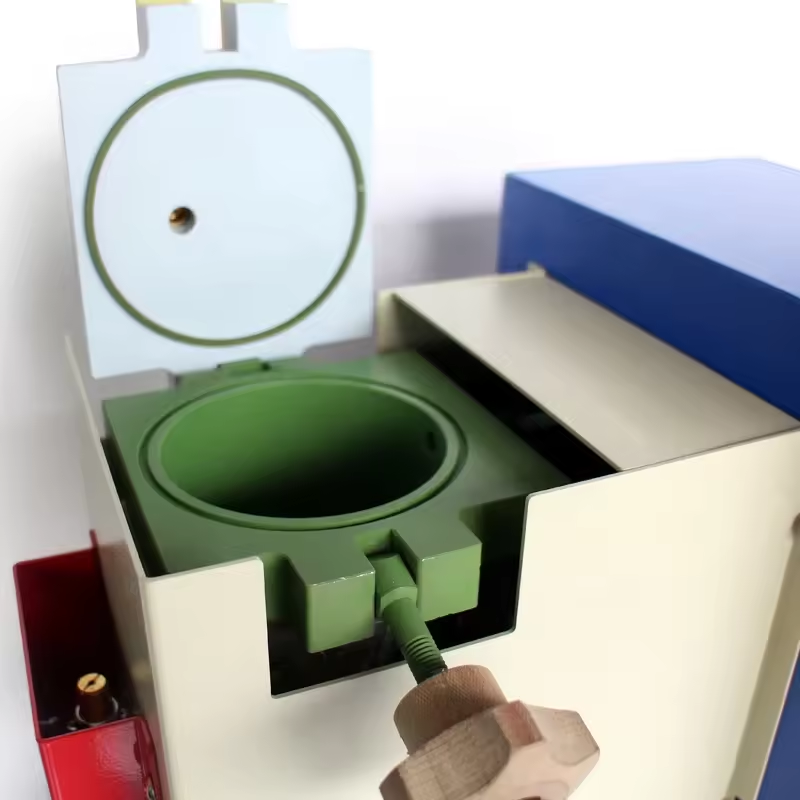

• Easy Cleaning: The adhesive application parts are accessible for cleaning, preventing buildup and clogging.

• Simple Controls: Intuitive interfaces allow operators to set parameters quickly without extensive training.

• Durable Construction: Industrial-grade components ensure long service life with minimal breakdowns.

• Safety Features: Emergency stops and protective shields enhance operator safety during use.

Routine maintenance involves checking heating elements, conveyor mechanisms, and adhesive supply systems to ensure smooth, uninterrupted operation.

Key Features

1. Innovative design replacing hot melt adhesive dot tape and reinforcement, reducing production steps and costs.

2. Adjustable material thickness and glue application width for versatile and precise shaping tailored to various boot designs.

3. Eco-friendly, non-toxic, odorless, and colorfast hot melt adhesive, improving worker safety and product quality.

4. No need for mold plate freezing after gluing, saving time, energy, and ensuring curvature retention.

5. Suitable for a wide range of footwear types, including riding boots, hiking boots, work boots, and fashion footwear.

6. Advanced temperature and pressure control systems ensure consistent, high-quality bonding and shaping.

7. Environmentally responsible and energy-efficient manufacturing process.

8. User-friendly operation and easy maintenance reduce downtime and training costs.

9. Cost-effective solution that enhances both production efficiency and final product durability.

The Boot Shaping Coating Machine revolutionizes boot manufacturing by combining advanced adhesive technology with innovative design principles. It eliminates traditional manufacturing bottlenecks, enhances product quality, and significantly lowers production costs while aligning with modern sustainability goals. For manufacturers aiming to produce superior quality boots that retain their shape perfectly, with less waste and faster turnaround times, the Boot Shaping Coating Machine is the ideal solution. Its adaptability to various materials and shoe types makes it a valuable investment for any footwear production facility looking to stay competitive in today’s market.
