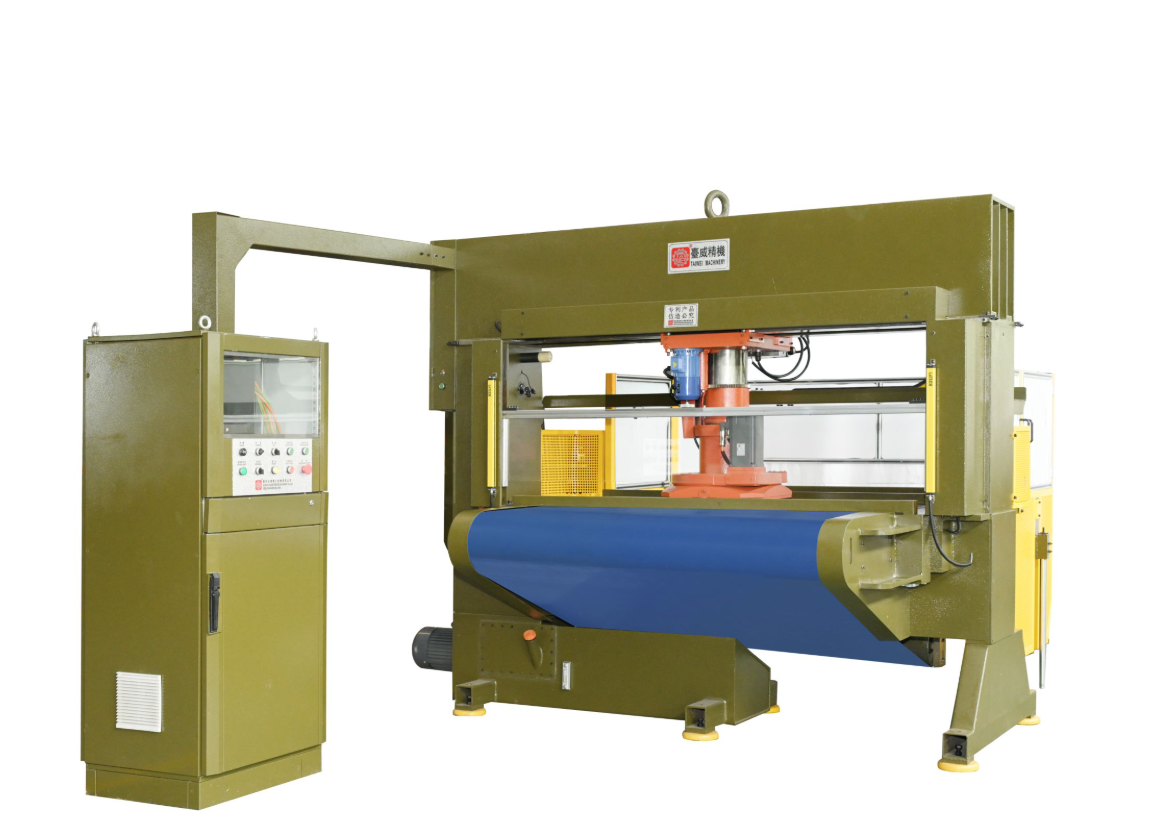

MACHINE NAME: BELT-TYPE HIGH-SPEED INTELLIGENT CNC CUTTING MACHINE

MODEL NO: TW-535BP

BRAND: TAIWEI

FEATURES

---

• A hydraulic traveling head press producing 30 metric (30 U.S.) tons of cutting force. This very quiet, high speed machine has a heavy-duty, single cylinder construction that provides for efficient cuts of single or multiple layers of material. The hydraulic up stroke and down stroke provide for an even cutting depth. It is especially designed for maximum material yield of small parts cut from wide materials. Die and material height is set quickly and easily making this machine operator friendly.
• 1.Efficient cuts of single or multiple layers of material
• 2.Uses a hydraulic-down and hydraulic-up system to provide an even cutting depth
• 3.Wide bed, allows full width to be processed without the added expense of slitting to a smaller dimension
• 4.Special cutting pad locking device can prevent cutting pad from warping
• 5.Movable platen, allows the operator visibility to conveniently and accurately place the die onto material
• 6.Two hand tripping action, ensures complete operator safety
• 7.Automatic head down stroke speed reduction prior to actual cutting action to minimize any possible size difference between top most and bottom layers in multiply applications
• 8.Die height and material height can be set quickly
• 9.Excellent repeat accuracy of stroke ensures extended cutting pad life and clean accurate parts.

TECHNICAL PARAMETER

Swaying Arm Width （mm)           : 650 x 650

Cutting Force（ton）                   : 35

Max. Stoke（mm)                        : 135

Motor Power（kW）                    :  0.75

Cutting Speed （mm/s                  : 50

Dispacelment Speed （mm/s）    : 1.07

Motor Power（kW）                    : 2.2

Net Weight （kg)                        : 1650

The TW-535BP Belt-Type High-Speed Intelligent CNC Cutting Machine stands at the forefront of cutting technology, embodying innovation, efficiency, and precision. Developed by Quzhou Taiwei Precise Machinery Co., Ltd., this machine has garnered 12 national patents, underscoring its groundbreaking advancements in the field. Designed for industries requiring high-speed, high-precision cutting of flexible materials, the TW-535BP offers unparalleled performance and reliability.

Core Technological Innovations

1. High-Speed Cutting Performance

   The TW-535BP achieves a cutting speed of up to 85 strokes per minute, setting a new benchmark in the industry. This high-speed capability significantly enhances production efficiency, allowing for rapid processing of materials without compromising quality.

2. Efficient Knife Change Mechanism

   Equipped with a high-speed knife change system, the TW-535BP allows for blade replacement in less than 1 second. This rapid changeover minimizes downtime and ensures continuous operation, thereby optimizing productivity.

3. 360° Arbitrary Angle High-Speed Blanking

   The machine's cutting head can rotate a full 360°, enabling flexible and precise cutting at any angle. This feature is particularly advantageous for complex shapes and intricate designs, providing versatility in manufacturing processes.

4. Automatic Typesetting System

   The integrated international leading automatic typesetting system optimizes material usage by saving 3-10% of raw materials. This system efficiently arranges cutting patterns to minimize waste, contributing to cost savings and environmental sustainability.

5. Seamless Blanking Capability

   Unlike traditional manual blanking methods that often result in 5mm spacing waste, the TW-535BP achieves seamless blanking. This precision reduces material wastage and enhances the overall efficiency of the cutting process.

6. Energy Efficiency

   Operating with a power consumption of ≤7kW/h, the TW-535BP is designed for energy efficiency. Additionally, the free cutting plate, replaced by a durable belt with a service life of over one year, further reduces operational costs.

7. Advanced Control System

   The machine is equipped with a comprehensive German Siemens control system, ensuring reliable and precise operation. This advanced control technology facilitates accurate positioning and synchronization of movements, enhancing the overall performance of the machine.

8. Safety Features

   Adhering to European and American safety standards, the TW-535BP incorporates stringent safety measures. These include protective enclosures, emergency stop functions, and safety interlocks, ensuring the well-being of operators and compliance with international safety regulations.

Performance Specifications

Applications

The TW-535BP is versatile and suitable for a wide range of materials, including:

• Leather

• EVA Foam

• Rubber

• Textiles

• Cardboard

• Plastic Sheets

• Cork

• Glass Fiber

• Non-metallic Composite Materials

Its adaptability makes it ideal for industries such as automotive, footwear, packaging, and textiles, where precision and efficiency are paramount.

The TW-535BP Belt-Type High-Speed Intelligent CNC Cutting Machine represents a significant advancement in cutting technology. With its high-speed performance, efficient material usage, seamless blanking capability, and advanced control systems, it offers unparalleled advantages to manufacturers seeking to enhance productivity and reduce operational costs. By integrating this machine into production lines, companies can achieve higher efficiency, lower waste, and improved product quality, positioning themselves at the forefront of their respective industries.
